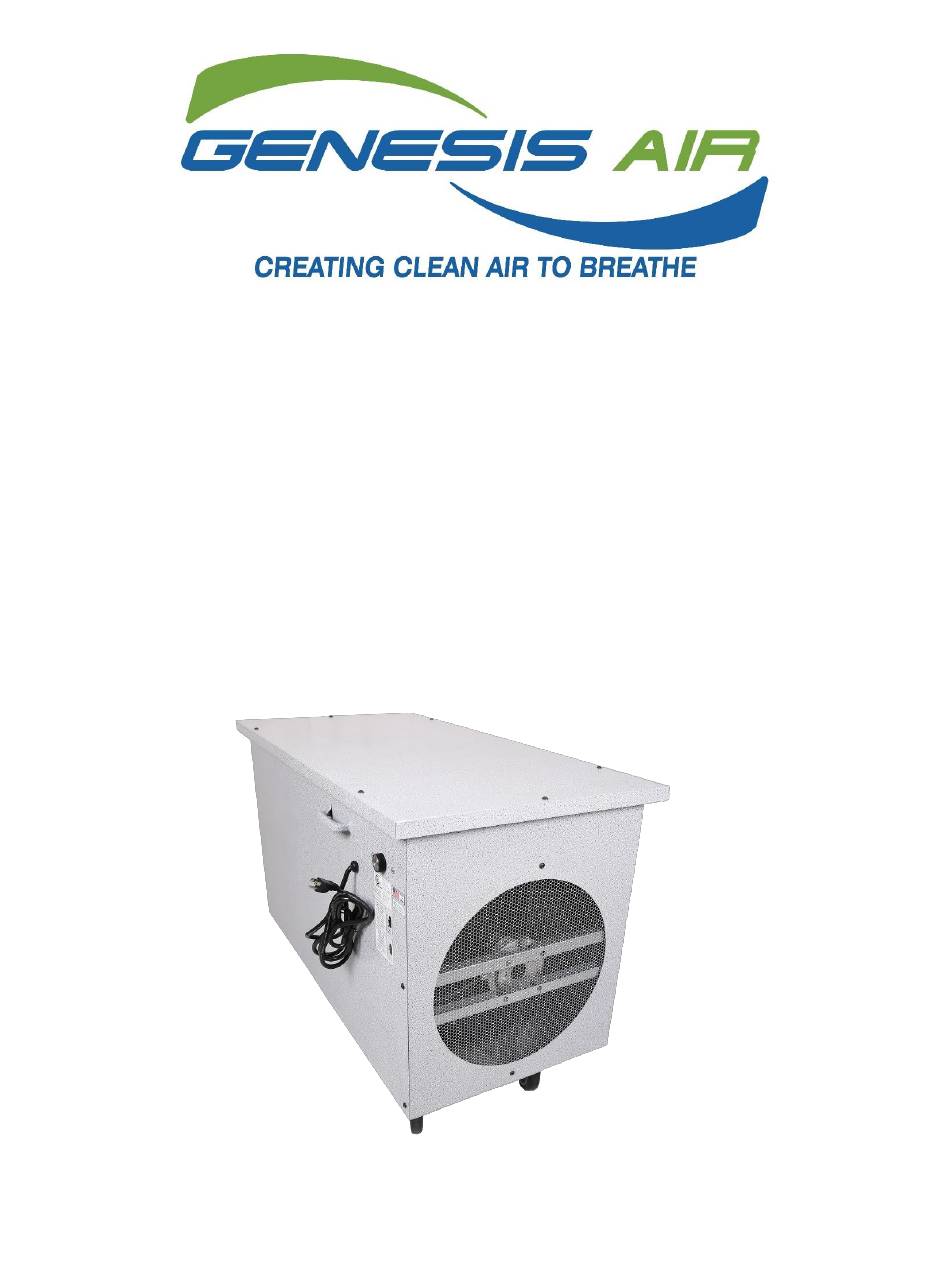

- Page 1 Indoor Air Purifier B1 / B2 / B3 / B4 Standalone / Portable / Ducted Commercial CenterPoint™ Photocatalytic Oxidation Technology November 2021 11012100...
-
Page 2: Product Description
• 20” x 24” x 2” MERV 13 Filter and 20” x 24” x 2” Carbon filter Copyright Genesis Air, Inc. is the owner of this document and the information it contains. The manufacturer reserves the right to revise this publication at any time and make changes to its content without obligation to notify any person of such revision or change. -
Page 3: Table Of Contents
Table of Contents Product Description Suitable Locations Shipping and Packing List Copyright Revisions Summary Safety Certifications 5 – 6 Warning Labels Product Overview Specifications Product Labeling Nomenclature UV Lamp Safety Information 10 – 14 Installation Operation Air Changes Per Hour 17 –... -
Page 4: Safety Certifications
Safety Certifications UL Classified UL File No. E326567 FIFRA….EPA EST No. 87747--TX--001 UL Requirements • 105°C minimum supply connection rating. • For catalyst marked “XXXX”, 50°C/122°F maximum ambient temperature. For those marked “XXXX-E”, 80°C/176°F maximum ambient temperature. • Suitable for air-handling units •... -
Page 5: Warning Labels
Applicable Warning Labels Electric / Shock Hazard To reduce the potential of electric shock or fire, the wiring required by this manual Electrical Shock can cause should be performed by a licensed electrician serious injury or death. in accordance with applicable National Disconnect all remote Electric Cod, NFPA 70, and local codes. - Page 6 Use of accessories, transducers, and cables Portable RF communications equipment other than those specified or provided by the (including peripherals such as antenna cables manufacture of this equipment could result in and external antennas) should be used no increased electromagnetic emissions or closer than 30 cm (12 inches) to any part of decrease electromagnetic immunity of this the B, including cables specified by the...
-
Page 7: Product Overview
Product Overview 1.) Lid – Covers the top of the unit. 2.) Pre-filter – 20” x 24“ x 4” MERV 13. Removes particle from air stream. May be replaced with a 20” x 24” x 2” MERV 13 filter and 20” x 24” x 2” carbon filter. -
Page 8: Specifications
Specifications U.S. Patent Number: 10946116 Model Names: B1 / B2 / B3 / B4 Volumetric Flow Rate (CFM): 1,200 (Low Speed) – 2,300 (High Speed) Power Requirements: 120 Volts, 60 Hertz Current (amps): 6.5 / 7.6 / 8.7 / 9.8 Weight (lbs.): 163 / 174 / 185 / 197... -
Page 9: Uv Lamp Safety Information
UV Lamp Safety Information Ultraviolet germicidal irradiation (UVGI) is used for the activation of the PCO Catalyst. The residual light presents a variety of potential health hazards to humans. These hazards include eye damage, skin burns, and the potential to cause skin cancer. Because germicidal UV rays are invisible to the human eye, personnel may be subjected to a hazardous dose of UV without warning. -
Page 10: Installation
Installation Figure 2: Standalone Ceiling Mounted Figure 3: Ducted Above Ceiling Tiles WARNING! WARNING! Sharp Edges Hazard Do not use silicone to seal B unit to ductwork. The presence of silicone in UV Equipment with sharp edges can cause light will pollute the catalyst. injuries. - Page 11 • Choose a location that has access to a 120V power outlet. An extension cord with ground pin may be used if the supplied power cable is too short for your application. Figure 4: Non-Ducted Ceiling Mounting Figure 5: Ducted Ceiling Mounting...
- Page 12 Permanent Ceiling Installation Make the following considerations when choosing an appropriate placement location. • The presents of structural components that will be needed to hold the B unit in place. • Access to 120V AC power supply. • Other fixtures in the vicinity of installation. •...
- Page 13 Caution: B units that are exposed to fluctuating temperatures may allow water vapor to condense of the interior or exterior of the duct. Condensation can cause corrosion of duct components and electrical components. Caution: Uninsulated ductwork can allow heat to be transferred between the duct and external air. This can result in an unnecessary strain on the buildings HVAC system.
- Page 14 Caution: To reduce the potential of electric shock or fire, the wiring required by this manual should be performed by a licensed electrician in accordance with applicable National Electric Cod, NFPA 70, and local codes. • Use a 16 AWG, type C13 power cord. •...
-
Page 15: Operation
Operation Figure 7: Power Entry Module Figure 8: Motor Controller • The Power Entry Module is the main power switch for the unit. Click to the “I” position to turn on and turn to the “O” position to turn off. See Fuse Replacement instructions for more information. -
Page 16: Air Changes Per Hour
Air Changes Per Hour Volumetric Flow Rate (CFM) Speed Medium Room Square Footage Air Changes Per Hour Speed High (8 ft ceiling) (9 ft ceiling) (10 ft ceiling) Speed 2,500 2,222 2,000 1000 1333 1667 2000 3,000 2,667 2,400 1200 1600 2000 2400... -
Page 17: Maintenance
Maintenance Filter Replacement The B unit includes a pre-filter to remove large particles from the air stream. This prevents the buildup of debris on the Catalyst Panel. The pre-filter should be replaced when it has become built up with dirt and other contaminants. -
Page 18: Hepa Filter Replacement
HEPA Filter Replacement The B may also include a 20” x 24” x 6” HEPA filter. A HEPA filter can be selected as an option for the B1, B2, or B3. Direction of Air Flow Figure 11 HEPA Filter Replacement Procedure 1.) Disconnect unit from power supply. -
Page 19: Lamp Replacement
Lamp Replacement The B unit includes 20” UVC lamps. These lamps are used to energize the catalyst. Each 2021 PCP contains (3) 20” lamps manufactured by First Light Technologies, Inc or UV Engineering Solutions LLC. Lamps must be replaced after 12,000 hours of continuous use. The manufacturer recommends replacing lamps every 16 months or once a year. - Page 20 Figure 13 Figure 14 5.) Disconnect lamp plugs from lamps that will be replaced. See Figures 13 and 14. Direction of Air Flow Figure 15 Figure 16 6.) Lamps are attached to Catalyst Panel with (4) 10-16 Self-Drilling screws per lamp. Remove the screws using a 5/16”...
-
Page 21: Lamp Disposal
12.) Place catalyst panel(s) back into B unit. Be sure that arrows on panel point in the direction of air flow. If B is installed upside down, reinsert the 10-16 self-drilling screws into their original holes, holding the catalyst panel(s) in place. Note: Air flows in through the filter grille and out through the fan grille. -
Page 22: Ballast Troubleshooting
Ballast Tray Troubleshooting Procedure Troubleshooting All Fluorescent Fixtures Start here Safety First: Voltage and current measurements present the possibility of exposure to hazardous voltages and should be performed only by qualified personnel. Many Bring lamps Fixture Operational Lamps Out? troubleshooting techniques require measurements with to full output input voltages applied requiring extra precautions to avoid electrical shock. -
Page 23: Ballast Replacement
Ballast Replacement. There is not a set lifetime for ballasts. Ballasts are intended to last the life of the unit. However, ballasts can fail prematurely and will need to be replaced. Always replace with ballasts sold through your CenterPoint air purifier supplier. See Ballast Troubleshooting for diagnosing ballast faults. Ballast Replacement Procedure 1.) Disconnect unit from power supply. -
Page 24: Fan Motor Replacement
8.) Reinsert and tighten the (2) nuts that hold the ballast in place with an 11/32” socket wrench. See Figures 17 and 18. 9.) Reconnect the lamp plugs and reconnect ballast wires into push-in connectors. 10.) Place catalyst panel(s) back into B unit. Be sure that arrows on panel point in the direction of air flow. - Page 25 Figure 19 Figure 20 4.) Use an Allen wrench to remove (2) screws holding motor bracket to outlet grill. See Figure 19. 5.) Use an Allen wrench to remove (9) screws holding outlet grille in place. See Figure 20. Figure 21 Figure 22 6.) Place outlet grille face down on a work surface and remove (4) screws holding motor bracket in place using an Allen wrench.
-
Page 26: Catalyst Cleaning
14.) Reattach the lid and re-insert (6) screws and tightening with an Allen wrench. See Figure 9. 15.) Plug-in unit and power on to ensure that the unit works properly. Note: If motor is installed incorrectly, fan blade may rub on inlet ring. If this is the case, motor bracket may need to be repositioned. - Page 27 8.) Place catalyst panel(s) back into B unit. Be sure that arrows on panel point in the direction of air flow. If B is installed upside down, reinsert the 10-16 self-drilling screws into their original holes, holding the catalyst panel(s) in place. Note: Air flows in through the filter grille and out through the fan grille.
-
Page 28: Fuse Replacement
7.) Place catalyst panel(s) back into B unit. Be sure that arrows on panel point in the direction of air flow. If B is installed upside down, reinsert the 10-16 self-drilling screws into their original holes, holding the catalyst panel(s) in place. Note: Air flows in through the filter grille and out through the fan grille. -
Page 29: Replacement Parts
2.) Place the end of a 1/8” flat head screwdriver into one of the holes in bottom of the fuse holder. Pry the fuse holder out of the power entry module. See Figure 23. 2.) Check the Power and Neutral wire fuses. If a fuse has blown, replace it with the spare fuse. 3.) Carefully place the fuse holder back into the power entry module. - Page 30 PPH ½” Self-Drilling Screw Catalyst Cover Screws Phillips Head Screw Lid Screws B Lid Screws M6-1.0 x 16 SHCS Lid Hinge B Unit Lid Hinge B Unit Lid Hinge Caster Wheels B Unit Wheels Caster; Swivel; 5 x 1-1/4; Polypropylene; PREC; PLT; 35 Table 2: Replacement Parts *Only use genuine replacement parts.
-
Page 31: Wiring Diagram
Wiring Diagram Figure 24: 2008 B Wiring Diagram... - Page 32 Figure 25: B (Medical) Wiring Diagram...
-
Page 34: Air Purification Testing
Air Purification Testing The manufacturer has conducted numerous tests to authenticate that CenterPoint™ technology is an effective means of reducing airborne indoor air contaminants. The manufacture of this device will make copies of test results available to those who request it. Testing Protocol There are two main types of tests that can be performed with air purifying equipment: single pass tests and chamber tests. -
Page 35: Warranty
ONE (1) YEAR COVERAGE -- RESIDENTIAL AND COMMERCIAL APPLICATIONS The covered equipment and covered components are warranted by Genesis Air for a period of ONE (1) year from the date of the original unit installation, when installed in a residential or commercial application. If during this period, a covered component fails because of a manufacturing defect, Genesis Air will provide a free replacement part. - Page 36 City: __________________State/Province: _______________ Zip/Postal Code: _____________ Home Phone: _________________________ E-mail: __________________________________ Installing Contractor: ___________________________ Phone: __________________________ Date of installation: ___________Model Number: ____________Serial Number: ____________ Please send this completed form to the manufacturer. GENESIS AIR, INC. 5202 CR 7350, SUITE D LUBBOCK, TX 79424...
