OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
ELECTRONIC PRESET DIGITAL METER
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
TECHNICAL DATA
. . . . . . . . . . . . . . . . . . . .
Models
Inlet / Outlet Ports (female)
. . . . . .
Operating Pressure Range
Meter Mechanism
. . . . . . . . . . . .
. . . . . . . . . . .
Flow Rate (Range)
Operating Temperature Range
.
. . . . . . . . . . . .
Accuracy
Oils
Anti-freeze
. . . . . . .
LCD Display
Batch Total (3 digits)
. . . . . . . . .
Cumulative Total (5 digits)
. . . . . .
Power Supply
. . . . . . . . . . . . . . .
Battery Life (minimum)
. . . . . . . . .
Weight (less nozzle / with batteries)
Tested with DTE-25 motor oil at ambient temperature. Minimum - maximum flow range
will vary with fluid viscosity.
Model
635360-2
635360-3
cancelled
635360-22
635360-24
635360-33
cancelled
INGERSOLL RAND COMPANY LTD
P.O. BOX 151
ONE ARO CENTER
D
(800) 276-4658
FAX (800) 266-7016
D
fluids.ingersollrand.com
FOR USE WITH LUBRICATION FLUIDS
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
635360-X
1/2 - 14 N.P.T.
. . . . .
5 - 1,000 p.s.i. (0.34 - 69.0 bar)
Oval gears
1/4 - 8 g.p.m. (1 - 30 l.p.m.)
. . .
20_ to 120_ F (-5_ to 50_ C)
0.5%
¦
1.5%
¦
99.9 units
99,999 units
"AAA" Alkaline batteries (4)
20,000 cycles
3.20 lb (1.45 kg)
MODEL IDENTIFICATION CHART
Control Handle
Dispense Units
67353
Quarts
67353-3
Liters
67353
Quarts
67353
Quarts
67353-3
Liters
BRYAN, OHIO 43506-0151
D
2008
CCN 15230600
E

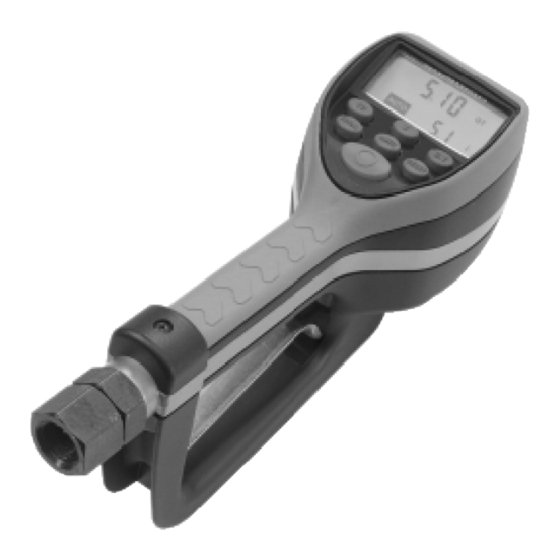

67353 Control Handle
Total Units
Nozzle (see page 7)
Gallons
629245-1 Flexible Hose
Liters
629245-1 Flexible Hose
Gallons
629245-2 Rigid Tube
Gallons
629516 Flexible Hose
Liters
629245-2 Rigid Tube
635360-X
RELEASED:
10-7-04
REVISED:
7-1-08
(REV. 02)
Figure 1
Advertisement
Table of Contents
Related Manuals for Ingersoll-Rand ARO 635360-2
Summary of Contents for Ingersoll-Rand ARO 635360-2

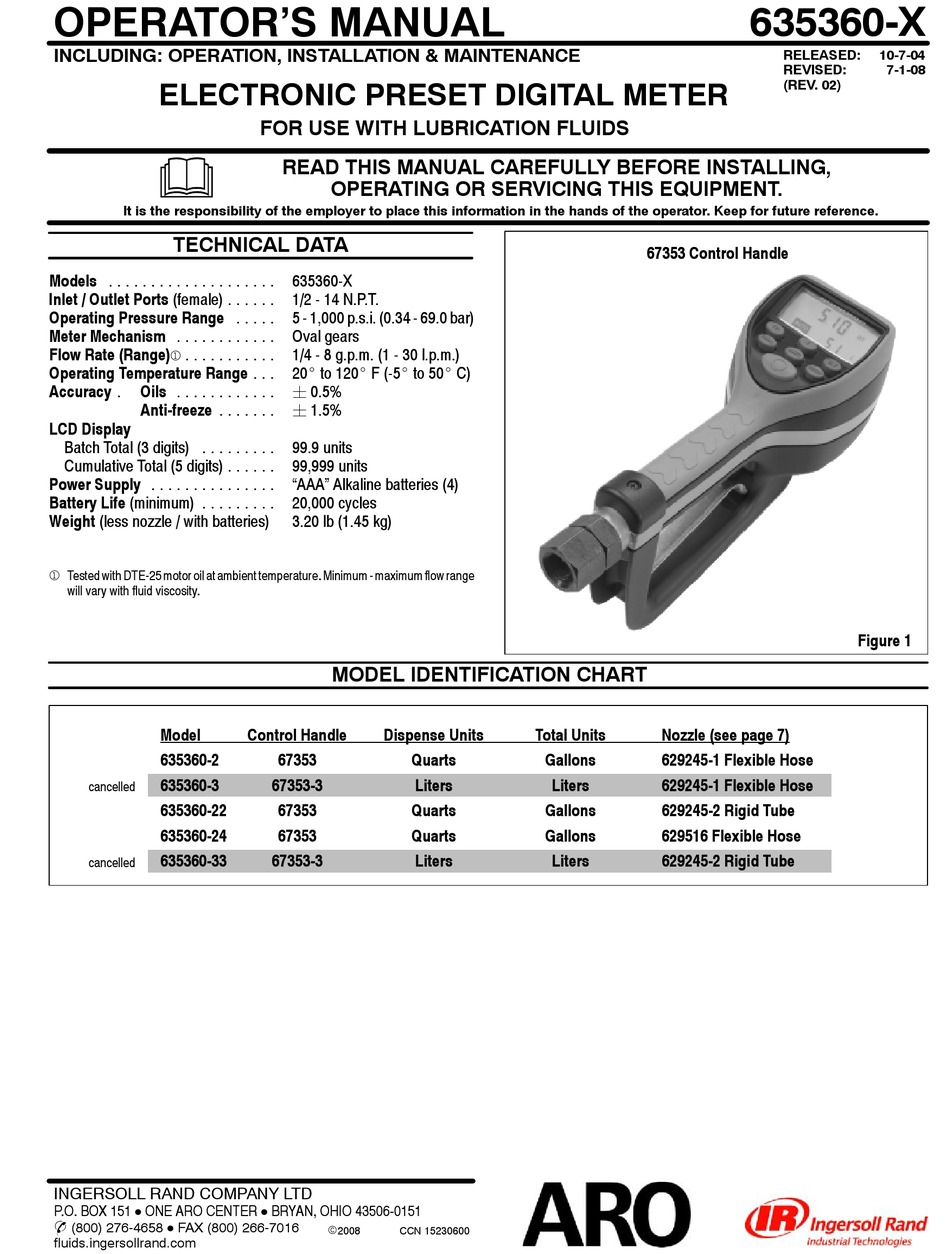

- Page 1 OPERATOR’S MANUAL 635360-X INCLUDING: OPERATION, INSTALLATION & MAINTENANCE RELEASED: 10-7-04 REVISED: 7-1-08 ELECTRONIC PRESET DIGITAL METER (REV. 02) FOR USE WITH LUBRICATION FLUIDS READ THIS MANUAL CAREFULLY BEFORE INSTALLING, OPERATING OR SERVICING THIS EQUIPMENT. It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference. TECHNICAL DATA 67353 Control Handle .
- Page 2 OPERATING AND SAFETY PRECAUTIONS READ, UNDERSTAND, AND FOLLOW THIS INFORMATION TO AVOID INJURY AND PROPERTY DAMAGE. body. WARNING EQUIPMENT MISUSE HAZARD. S Do not place hands or fingers over the end of or into the dis- S This equipment is for professional use only. pense valve.
- Page 3 crements of 1 unit. c. Pressing the “0.1” button will increase the batching amount in increments of 0.1 units. Figure 7 Figure 3 3. Pull the trigger to begin the flow. The valve will automatically lock in NOTE: The threaded end of the meter will always have female threads, place, even though the trigger will fall back to the closed position.
- Page 4 batch and stop the display from flashing. Programming the Units This meter comes with the option to choose four different units of mea- sure. Unless otherwise specified at the time of the order, each meter is SERVICE programmed in quarts, for use with motor oil. The “QT” will be flashing on initial start-up.
- Page 5 1. The first digit of the scale factor will be flashing. TROUBLE SHOOTING 2. Press the “TOTAL” button to scroll thru the numbers. WARNING Relieve the pressure prior to checking or repair- ing the meter. Make sure all valves, controls and pumps are op- erating correctly.
- Page 6 DIMENSIONAL DATA 11.065” (281.1 mm) 9.650” (245.1 mm) 3.500” (88.9 mm) 1/2 - 14 N.P.T. 1/2 - 14 N.P.T. 6.684” (169.8 mm) Page 6 of 8 635360-X (en)
- Page 7 NON-DRIP NOZZLE ASSEMBLIES 11-1/2” (292.1 mm) approximately 629245-1 Flexible, Automatic Low Flow 7” (177.8 mm) approximately 629245-2 Rigid, Automatic Low Flow 13-5/8” (346.1 mm) approximately 629516 Flexible Hose 635360-X (en) Page 7 of 8...
- Page 8 PN 97999-1124 Page 8 of 8 635360-X (en)
