UTILITECH and logo design are trademarks or
registered trademarks of LF, LLC. All rights reserved.
SERIAL NUMBER ______________________________
QUESTIONS, PROBLEMS, MISSING PARTS? Before returning to your retailer, call our customer service
department at 1-866-994-4148, 8 a.m. - 8 p.m., EST, Monday - Sunday.
You could also contact us at partsplus@lowes.com or visit www.lowespartsplus.com
SM21113

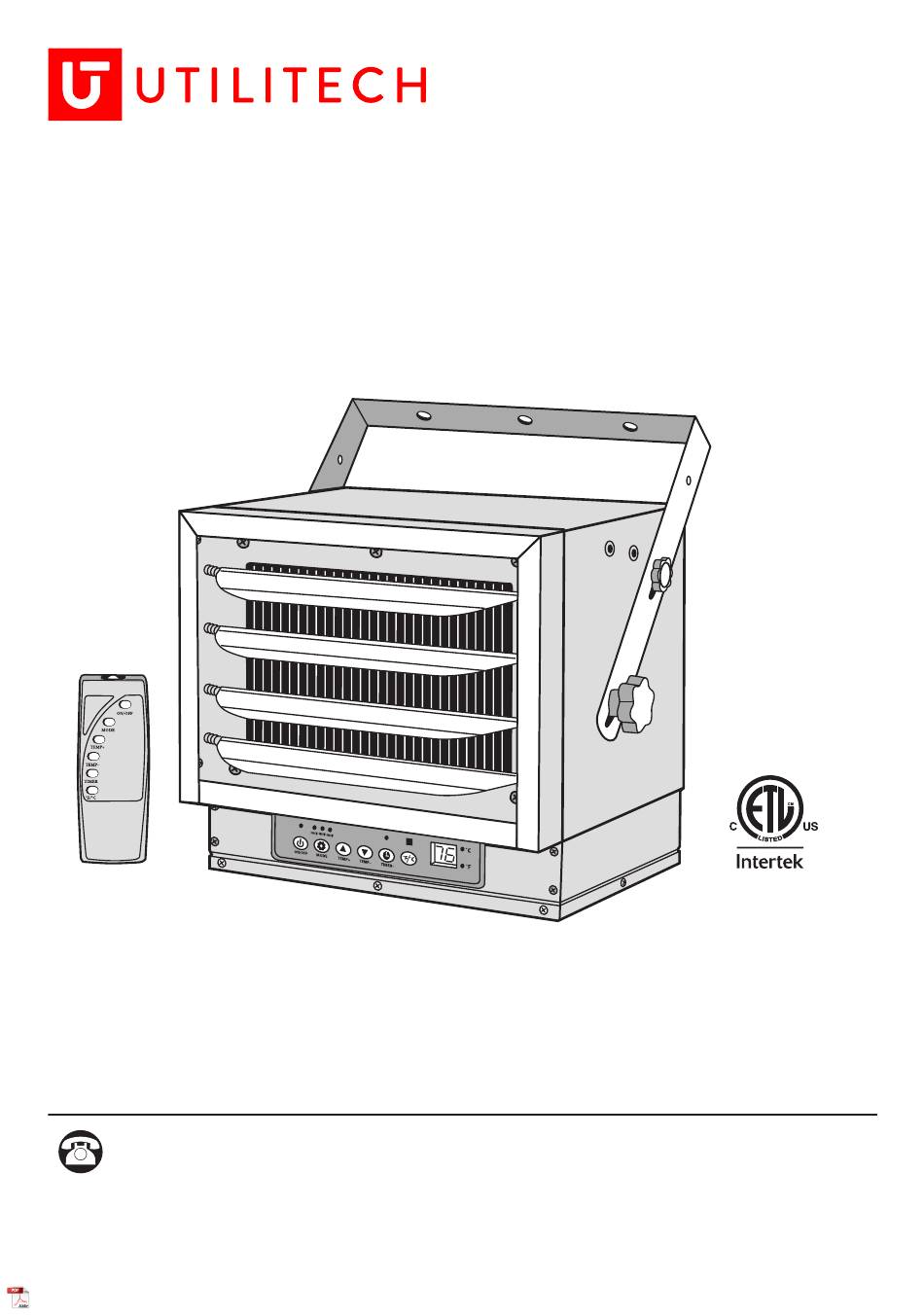

CEILING-MOUNT HEATER
PURCHASE DATE ________________________________
1
ITEM #1048286
MODEL #CZ225ERLSCN

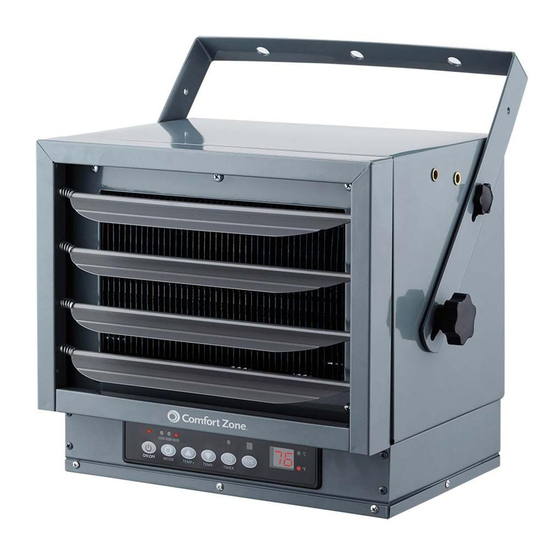

Heavy duty electric
utility heaters are
designed to meet
a variety of heating
requirements.
Heat output ranges
from 10,239 BTUs per
hour to 20,477 BTUs
per hour.
Heaters feature
horizontal and vertical
flow, built-in thermostat
and high limit thermal
cutout
Advertisement
Table of Contents
Related Manuals for Utilitech CZ225ERLSCN
Summary of Contents for Utilitech CZ225ERLSCN
- Page 1 ITEM #1048286 CEILING-MOUNT HEATER UTILITECH and logo design are trademarks or registered trademarks of LF, LLC. All rights reserved. MODEL #CZ225ERLSCN Heavy duty electric utility heaters are designed to meet a variety of heating requirements. Heat output ranges from 10,239 BTUs per hour to 20,477 BTUs per hour.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Product Features & Specifications......................2 Safety Information..........................2 – 3 Installation Instructions ......................... 3 – 5 Operating Instructions........................... 5 – 6 Care and Maintenance ..........................6 Troubleshooting ............................7 Warranty ..............................8 PRODUCT FEATURES & SPECIFICATIONS FEATURES SPECIFICATIONS Digital Thermostat &... -
Page 3: Safety Information
SAFETY INFORMATION WARNING: WARNING: • This heater is not suitable for use in hazardous • Extreme caution is necessary when any heater is used by or near children or invalids and whenever the locations as defined by the national fire protection association (NFPA) in the United States. - Page 4 INSTALLATION INSTRUCTIONS MOUNTING THE BRACKET: Figure 3a Refer to Figure 3a and 3b. CEILING JOIST • Locate a stud in the ceiling joist. SINGLE • Remove the mounting bracket from the heating SCREW MOUNTIN unit by loosening bracket thumb screws. WASHER •...
-
Page 5: Operating Instructions
INSTALLATION INSTRUCTIONS CONNECTING THE POWER (continued): • Pull enough properly sized wire through cable connector and connect the wire to the power block located in the base of the heater (see Figure 6). • Turn on the power at the main service. GROUND (or bare copper) HEATER RATING... -
Page 6: Care And Maintenance
OPERATING INSTRUCTIONS ADJUSTING AIR FLOW DIRECTION: Turning the unit – If the unit has been installed with a single lag bolt, as shown in the Figure 3a, simply turn the entire unit as needed to adjust air flow, as shown in Figure 7. Tilting the unit –... -
Page 7: Troubleshooting
Error Code Troubleshooting Guide Clearing Error Codes Error Code Possible Cause Recommended Solution Ensure heater is installed with sufficient clearance all-around Insufficient Clearance *8 feet minimun from floor To Clear E1 Code: Around Heater *8 inches minimum from rear of heater *13 inches minimum from side of heater 1. -
Page 8: Warranty
WARRANTY LIMITED WARRANTY This unit is guaranteed to the original retail purchaser against defects in quality or workmanship for a period of one year from the date of original purchase. If this unit fails because of a manufacturing defect within 30 days of purchase, return the unit, with your receipt, to the retailer.
