Highway Equipment Company NEW LEADER NL450C Manual

The nl450c includes the l5034g4 & the tr3000
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

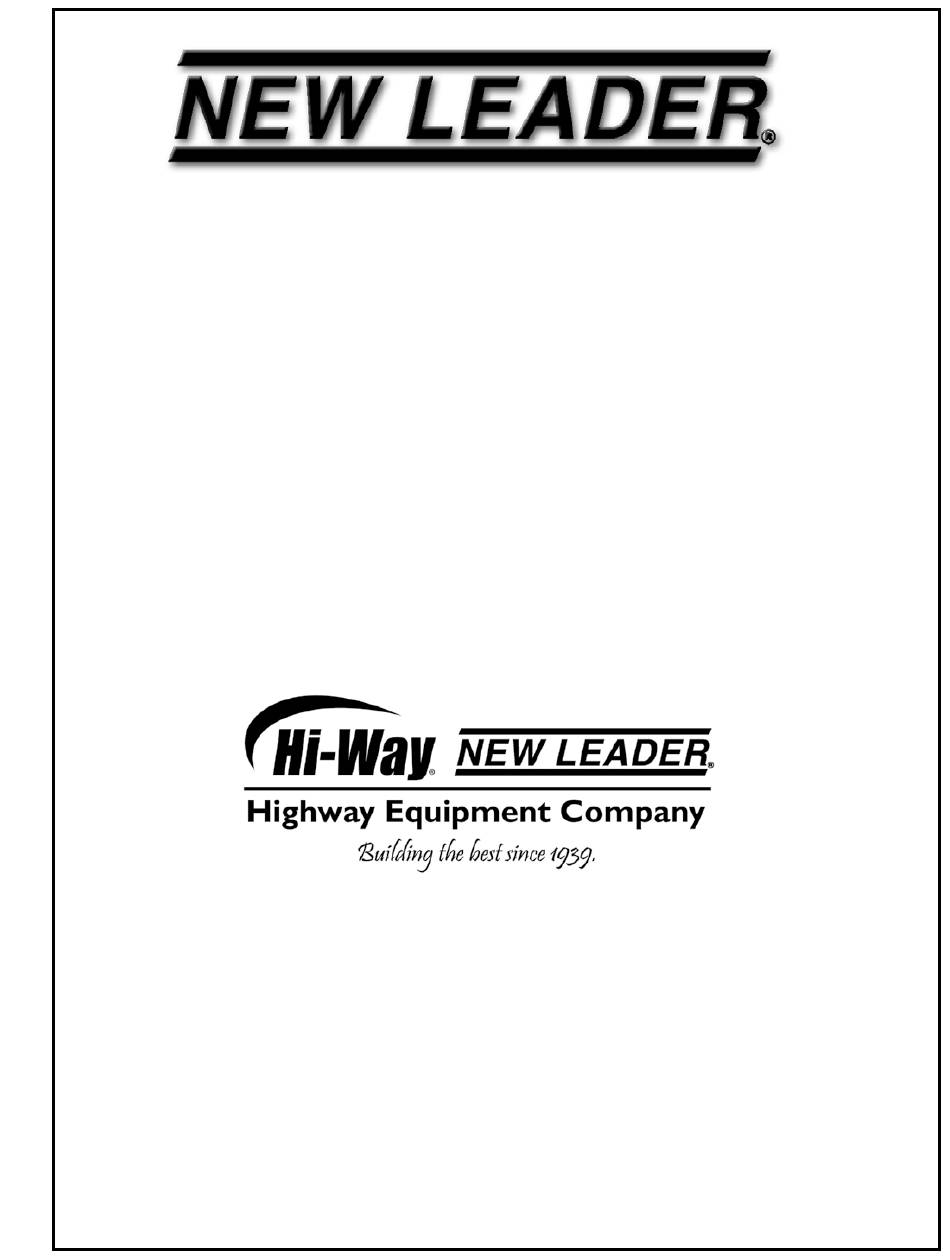

MODEL NL450C
The NL450C includes the L5034G4 & the TR3000.
L5034G4 SERIAL NUMBER _______________________
TR3000 SERIAL NUMBER ________________________
MANUAL NUMBER: 307306-C
EFFECTIVE 11/2015
1330 76TH AVE SW
CEDAR RAPIDS, IA 52404-7052
PHONE (319) 363-8281 | FAX (319) 286-3350
www.highwayequipment.com
Copyright 2009 Highway Equipment Company, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NEW LEADER NL450C and is the answer not in the manual?

Questions and answers

Related Manuals for Highway Equipment Company NEW LEADER NL450C

Summary of Contents for Highway Equipment Company NEW LEADER NL450C

  • Page 1 The NL450C includes the L5034G4 & the TR3000. L5034G4 SERIAL NUMBER _______________________ TR3000 SERIAL NUMBER ________________________ MANUAL NUMBER: 307306-C EFFECTIVE 11/2015 1330 76TH AVE SW CEDAR RAPIDS, IA 52404-7052 PHONE (319) 363-8281 | FAX (319) 286-3350 www.highwayequipment.com Copyright 2009 Highway Equipment Company, Inc.

  • Page 2: Table Of Contents

    NEW LEADER NEW LEADER NL450C TABLE OF CONTENTS HEADER Warranty............................... 4 Preface ................................5 Safety ................................6 Safety Decal Installation and Maintenance ................... 7 Safety Decal Illustrations ........................8 General Description ............................ 1 7 Dimensions & Capacities ..........................1 8 Installation Instructions ..........................
  • Page 3 NEW LEADER NEW LEADER NL450C TABLE OF CONTENTS CONTINUED HEADER L5034G4 Parts List ............................5 4 Feedgate .............................. 5 4 Mounting Angle ........................... 5 6 Conveyor Cover ........................... 5 7 Pintle Chain Conveyor ......................... 5 8 Chain Shield Hardware ........................5 9 Conveyor Idler .............................

  • Page 4: Warranty

    INSERT CURRENT NEW LEADER WARRANTY...

  • Page 5: Preface

    We urge you to protect your investment by using genuine HECO parts and our authorized dealers for all work other than routine care and adjustments. Highway Equipment Company reserves the right to make alterations or modifications to this equipment at any time. The manufacturer shall not be obligated to make such changes to machines already in the field.

  • Page 6: Safety

    NOTE: process. The need for safety cannot be stressed strongly enough in this manual. At Highway Equipment Company, we urge you to make safety your top priority when operating any equipment. We firmly advise that anyone allowed to operate this machine be thoroughly trained and tested, to prove they understand the fundamentals of safe operation.
  • Page 7 NEW LEADER NL450C SAFETY CONTINUED HEADER MAINTENANCE INSTRUCTIONS 1. Keep safety decals and signs clean and legible at all times. 2. Replace safety decals and signs that are missing or have become illegible. 3. Replaced parts that displayed a safety sign should also display the current sign. 4.
  • Page 8 NEW LEADER NL450C SAFETY DECALS L5034G4 HEADER 307306-C Please Give Part No., Description Page Rev. A & Unit Serial No.
  • Page 9 NEW LEADER NL450C SAFETY DECALS L5034G4 CONTINUED HEADER Please Give Part No., Description 307306-C Page Rev. A & Unit Serial No.
  • Page 10 NEW LEADER NL450C SAFETY DECALS TR3000 HEADER 307306-C Please Give Part No., Description Page Rev. A & Unit Serial No.
  • Page 11 NEW LEADER NL450C GENERAL SAFETY RULES HEADER OPERATION SECTION 1. Before attempting 6. Stay clear of any moving to operate this unit, members, such read and be sure shafts, couplings and understand universal joints. Make operation adjustments in small maintenance steps, shutting down manual.
  • Page 12 Replacement enough cause decals can be ordered from your dealer’s parts department or from Highway Equipment Company burns. DO NOT by calling (319) 363-8281. work on system that is hot. Wait until oil has cooled.
  • Page 13 NEW LEADER NL450C GENERAL SAFETY RULES HEADER MAINTENANCE SECTION 1. Maintenance includes all 7. Some parts lubrication, inspection, assemblies adjustments (other quite heavy. Before than operational control attempting adjustments such unfasten any heavy feedgate openings, part or assembly, conveyor speed, etc.) arrange to support part replacement, repairs...
  • Page 14 NEW LEADER NL450C GENERAL SAFETY RULES HEADER MAINTENANCE SECTION CONTINUED 11. When batteries being charged discharged, they generate hydrogen and oxygen gases. This combination of gases is highly explosive. DO NOT SMOKE around batteries—STAY AWAY FROM FLAME—don’t check batteries by shorting terminals as the spark could cause an explosion.
  • Page 15 NEW LEADER NL450C GENERAL SAFETY RULES HEADER INSTALLATION SECTION 1. Follow connection instructions in the Installation section of this manual. If mounting conditions require deviation from these instructions refer to factory. 2. When making the installation, be sure that the lighting meets Federal Motor Vehicle Safety Standard (FMVSS) No.
  • Page 16 NEW LEADER NL450C HEADER NOTES: 307306-C Please Give Part No., Description Page Rev. A & Unit Serial No.

  • Page 17: General Description

    NEW LEADER NL450C GENERAL DESCRIPTION HEADER The Model NL450C is a L5034G4 spreader mounted on the TR3000 trailer. It is intended for spreading feedlot composted manure, waste water sludge, industrial waste, paper mill waste, compost, marl, poultry litter and fly ash.

  • Page 18: Dimensions & Capacities

    NEW LEADER NEW LEADER NL450C DIMENSIONS & CAPACITIES HEADER 295 (749 cm) Overall Length 179 (455 cm) Inside Body Length 126 (317cm) Overall Height Struck Capacity Spreader Weight Cu Yd (Cu M) Cu Ft Approx. Pounds (kilograms)As Shipped Spreader 6400 (2903) 16.8 (12.8) 453 Trailer 14,600 (6623)

  • Page 19: Hydraulic Requirements

    NEW LEADER NL450C INSTALLATION INSTRUCTIONS HEADER HYDRAULIC REQUIREMENTS Spinner (Provided by Tractor Pump) PUMP TYPE PTO Driven Gear Pump PTO SPEED 1000 RPM PRESSURE 2500 PSI (172 bar) Continuous; 3100 PSI (214 bar) Intermittent FLOW 40 GPM (151 LPM) FILTRATION Return line filter, 10 Micron RESERVOIR 40 gallon (151 liters)

  • Page 20: Implement Preparation And Connection

    NEW LEADER NEW LEADER NL450C INSTALLATION INSTRUCTIONS CONTINUED HEADER IMPLEMENT PREPARATION AND CONNECTION Make sure area is clear between the tractor and implement when backing up to WARNING implement. DO NOT wear loose clothing. Keep hands and other body parts away from connecting WARNING parts of tractor and implement.
  • Page 21 NEW LEADER NL450C INSTALLATION INSTRUCTIONS CONTINUED HEADER Connect Implement 1. Check visible wear and make sure hitch and draw pin are clear of debris and dirt. 2. Raise hitch by turning the jack handle to extend the jack. 3. Pull out draw pin on tractor hitch. (Figure 1) 4.
  • Page 22 NEW LEADER NEW LEADER NL450C INSTALLATION INSTRUCTIONS CONTINUED HEADER Figure 8 Figure 9 10. Attach PTO driveline to tractor PTO. a. Inspect, clean and lube PTO and PTO driveline. b. Inspect all shields, make sure they are in proper working order. c.

  • Page 23: Spinner Installation

    NEW LEADER NL450C INSTALLATION INSTRUCTIONS CONTINUED HEADER SPINNER INSTALLATION See L5034G4 Spread Pattern Installation Instructions at www.highwayequipment.com, then Support, then Operators Manuals, then Fertilizer Spreader Manuals. SPINNER SENSOR The spinner sensor must be mounted under the right-hand spinner disc in holes provided. Rotate disc so one of the cap screws is directly above the sensor.

  • Page 24: Initial Start

    NEW LEADER NEW LEADER NL450C INITIAL START-UP HEADER Become familiar with the General Operating Procedures section before preforming the initial field testing. The following procedure is a guide: 1. Field test over any suitable course which allows implement to be pulled at speeds to be used while spreading. 2.

  • Page 25: Field Testing

    NEW LEADER NL450C FIELD TESTING HEADER The following procedure is a guide: 1. Make sure unit has been properly serviced and is in good operating condition. Field test unit prior to first use, prior to each spreading season’s use, and following overhaul or repair work, to verify that all components and systems are functioning properly.

  • Page 26: General Operating Procedures

    NEW LEADER NL450C GENERAL OPERATING PROCEDURES HEADER 1. Make sure unit has been properly serviced and is in good operating condition. Field test unit prior to first use, prior to each spreading season’s use, and following overhaul or repair work, to verify that all components and systems are functioning properly.

  • Page 27: Tire Pressure And Transport Speeds

    NEW LEADER NL450C GENERAL OPERATING PROCEDURES CONTINUED HEADER TIRE PRESSURE AND TRANSPORT SPEEDS Proper air pressure achieves maximum tire performance. The TRAILER TIRE following table should be used as a guide. ROAD SPEED TABLE Tire Max Road Max Gross Drive at a reasonable and safe speed Pressure Speed Combined...

  • Page 28: Rear Pulling Lugs

    NEW LEADER NL450C HEADER GENERAL OPERATING PROCEDURES CONTINUED REAR PULLING LUGS Do not pull implement sideways—always pull straight. Always disconnect tractor from implement NOTICE! before using rear lugs. Otherwise, damage to implement may occur. NOTICE! Failure to raise jack before pulling stuck implement will destroy jack. If the implement gets stuck, attempt to dislodge the implement by powering the...
  • Page 29 NEW LEADER NL450C GENERAL OPERATING PROCECURES CONTINUED HEADER Maximum Hitch Angles & Walking Beam Travel DO NOT bottom out suspension. Damage may occur to implement. The manufacturer CAUTION will not be liable for damage to implement due to improper usage. 17°...

  • Page 30: Hydraulic System

    NEW LEADER NL450C LUBRICATION AND MAINTENANCE HEADER PREVENTATIVE MAINTENANCE PAYS! The handling and spreading of compost is a most severe operation with respect to metal corrosion. Establish a frequent, periodic preventative maintenance program to prevent rapid damage to spreading equipment. Proper cleaning, lubrication and maintenance will give you longer life, more satisfactory service and more economical use of your equipment.

  • Page 31: Hose Routing

    NEW LEADER NL450C LUBRICATION AND MAINTENANCE CONTINUED HEADER HOSE ROUTING WRONG RIGHT WRONG RIGHT 1. Use elbows and adapters in the installation to relieve 2. Install hose runs to avoid rubbing or abrasion. strain on the assembly, and to provide easier and Clamps are often needed to support long runs of neater installations that are accessible for inspection hose or to keep hose away from moving parts.

  • Page 32: Hydraulic Hose

    NEW LEADER NL450C LUBRICATION AND MAINTENANCE CONTINUED HEADER HYDRAULIC HOSE Hose assemblies in operation should be inspected frequently for leakage, kinking, abrasion, corrosion or other signs of wear or damage. Worn or damaged hose assemblies should be replaced immediately. Testing should be conducted in approved test stands with adequate guards to protect the WARNING operator.
  • Page 33 NEW LEADER NL450C LUBRICATION AND MAINTENANCE CONTINUED HEADER The conveyor will move away from the bottom panel if material accumulates under the conveyor or on the sprockets. The more material that accumulates, the closer the chain will come to the chain NOTICE! shields.

  • Page 34: Spinner Sensor

    NEW LEADER NL450C LUBRICATION AND MAINTENANCE CONTINUED HEADER SPINNER SENSOR Do not use stainless steel hardware for sensor readings. Using stainless steel hardware may cause NOTICE! improper sensor RPM readings. The spinner sensor must be mounted under the right-hand spinner disc in holes provided. Rotate disc so one of the cap screws is directly above the sensor.

  • Page 35: Brakes

    NEW LEADER NL450C LUBRICATION AND MAINTENANCE CONTINUED HEADER TRAILER - TR3000 BRAKES Perform maintenance on level surface with wheels blocked. There is no parking brake WARNING! on the TR3000. Block the wheels prior to unhitching or any maintenance of the TR3000. Uncontrolled movement of the trailer could cause death or serious injury.

  • Page 36: Tires

    NEW LEADER NL450C LUBRICATION AND MAINTENANCE CONTINUED HEADER TIRES Pressure and Load NOTICE! Inspect tires and wheels daily for wear and/or loose hardware. Service of tires and rims can be dangerous. Follow all safety rules. Only specialized WARNING personnel should mount tires. Use proper equipment and procedures. Damaged tires can explode causing injury.

  • Page 37: Pto Driveline Lube & Grease Points

    NEW LEADER NL450C LUBRICATION AND MAINTENANCE CONTINUED HEADER 7. Install hardened spacer and nuts, finger-tight, at 12 o’clock and 6 o’clock positions. Rotate wheel 180° and make sure wheel is fully seated against drum. Repeat as needed. Install spacers and nuts 8.

  • Page 38: Lubrication And Hydraulic Oil Specifications

    Extreme environments or dirty conditions may require the use of different oils. Consult your New Leader dealer or the Product Support Department at Highway Equipment Company for systems operating outside normal conditions. Ideal Oil Operating Temperature 115-158°F (46-70°...

  • Page 39: L5034G4 Lubrication And Maintenance Chart

    NEW LEADER NL450C L5034G4 LUBRICATION AND MAINTENANCE HEADER CHART The spreader should be regularly lubricated with the lubricants recommended in this manual in accordance with the following chart: SPREADER LOCATION PLACES METHOD FREQUENCY 1. PTO Driveline (Figure 23) Grease Gun a.
  • Page 40 NEW LEADER NL450C L5034G4 LUBRICATION AND MAINTENANCE HEADER CHART CONTINUED See Lubricant and Hydraulic Oil Specifications for types of lubricants and oil to be used. 1d, 1f Figure 23- PTO Driveline - Slip Yoke & Universal Joint Figure 24 - Hydraulic System - Reservoir, Cooler &...
  • Page 41 NEW LEADER NL450C L5034G4 LUBRICATION AND MAINTENANCE HEADER CHART Figure 27 - Conveyor - Chain Oiler Figure 28 - Conveyor - Gear Case Figure 29 - Spinner - Grease Zerks - Shaft & Jack Please Give Part No., Description 307306-B &...

  • Page 42: Tr3000 Lubrication And Maintenance Chart

    NEW LEADER NL450C TR3000 LUBRICATION AND MAINTENANCE HEADER CHART TRAILER - TR3000 LOCATION PLACES METHOD FREQUENCY 13. Implement Hitch (Figure 30) Grease Gun Weekly 14. Walking Beam Pivots (Figure 31) Grease Gun Weekly 15. Trailer Jack (Figure 32) Grease Gun Weekly 16.
  • Page 43 NEW LEADER NL450C TR3000 LUBRICATION AND MAINTENANCE HEADER CHART Figure 32 - Trailer Jack Figure 33 - S-Cam Bushing & Ratchet Slack Adjusters Figure 34 - Hangers Figure 35 - Spindle Bushings Figure 36 - Hub Please Give Part No., Description 307306-B &...

  • Page 44: Troubleshooting

    NEW LEADER NL450C TROUBLESHOOTING HEADER ELECTRICAL SCHEMATIC - 12 VOLT DC WIRING CODE • 12GA White Wire (Ground) • Black Wire (Not Used) • 12GA Yellow Wire (LH Flash Warning & Turn Light) • 12GA Red Wire (Stop Lights) • 12GA Green Wire (RH Flash Warning & Turn Light) •...

  • Page 45: Brake Schematic

    NEW LEADER NL450C TROUBLESHOOTING CONTINUED HEADER BRAKES SCHEMATIC Please Give Part No., Description 307306-B & Unit Serial No. Page Rev. A...

  • Page 46: Hydraulic Schematic

    NEW LEADER NL450C TROUBLESHOOTING CONTINUED HYDRAULICS SCHEMATIC SUPPLY FROM MOTORIZED VALVE TRACTOR HYDRAULICS 0-25 GPM (0-94.64 LPM) 25 GPM (94.64 LPM) CONVEYOR MOTORS @ 3400 PSI (234.42 Bar) 9.6 CID (157.32 cc) RETURN TO TRACTOR 3400 PSI HYDRAULICS (234.42 Bar) 9.6 CID (157.32 cc) PWM FLOW CONTROL SPINNER MOTORS...

  • Page 47: L5034G4 Conveyor Selection Chart

    NEW LEADER NL450C TROUBLESHOOTING CONTINUED L5034G4 CONVEYOR SELECTION CHART This chart is to help determine which conveyor is best for specific applications. Find the closest description of the type of material to be spread.* • X indicates the preferred conveyor. •...
  • Page 48 NEW LEADER NL450C TROUBLESHOOTING CONTINUED • Symptom: Spinner motors do not turn when spinner control valve is in running position. See reasons 1, 2, 3, 4, 5, 7 & 21. • Symptom: Spinners turn but conveyor does not run in manual mode. See reasons 6, 8, 9, 10 & 21. •...
  • Page 49 NEW LEADER NL450C TROUBLESHOOTING CONTINUED Reason: Correction: 5. Worn pump. With flow meter arranged to check relief valve setting, open load valve fully. Read flow rate with engine running at field operating speed. Close load valve until pressure reads 2000 PSI (1378 bar).

  • Page 50: Standard Torques National Coarse (Nc) Capscrews

    NEW LEADER NL450C STANDARD TORQUES NATIONAL COARSE (NC) CAPSCREWS CAP SCREW GRADE IDENTIFICATION - MARKINGS ON HEAD SAE GRADE 2 NO MARKINGS SAE GRADE 5 THREE MARKS - 120 DEGREES APART SAE GRADE 8 SIX MARKS - 60 DEGREES APART USE GRADE 2 TORQUES FOR STAINLESS STEEL FASTENERS AND CARRIAGE BOLTS.

  • Page 51: Serial Tags

    NEW LEADER NL450C SERIAL TAGS Figure 37 - TR3000 Serial Tag Figure 38 - L5034G4 Serial Tag Please Give Part No., Description 307306-B & Unit Serial No. Page Rev. A...
  • Page 52 NEW LEADER NL450C NOTES 307306-B Please Give Part No., Description Page Rev. A & Unit Serial No.

  • Page 53: Instructions For Ordering Parts

    Highway Equipment Company. If your claims are not being handled (by the transportation company) to your satisfaction, please call the Parts Manager at Highway Equipment Company (319-363-8281) for assistance. In the parts list the following symbols and abbreviations stand for: * - Not Shown AR –...
  • Page 54 NEW LEADER NL450C FEEDGATE HEADER 13-15 8-11 8,9,11,12 307306-C Please Give Part No., Description Page Rev. A & Unit Serial No.

  • Page 55: Feedgate

    NEW LEADER NL450C FEEDGATE CONTINUED HEADER ITEM PART NO. DESCRIPTION 70286 70286-X1 Slide – Weldment Feedgate RH 70288 70288-X1 Slide – Weldment Feedgate LH 55377 55377 Cylinder – Hydraulic 305473 303298 Feedgate – Weldment 34” #2 303379 303325 Bracket – Indicator *55395 *55395 Decal –...

  • Page 56: Mounting Angle

    NEW LEADER NL450C MOUNTING ANGLE HEADER ITEM PART NO. DESCRIPTION 20209 Cap Screw - 3/4-10NC x 3 20698 Washer - Flat 3/4 20683 Nut - Lock 3/4-10NC 58560 Cap Screw - 3/4-10NC x 7 305220 Spring - Compression 310487 Washer - Flat 25/32 SS 307306-C Please Give Part No., Description Page Rev.

  • Page 57: Conveyor Cover

    NEW LEADER NL450C CONVEYOR COVER HEADER ITEM PART NO. DESCRIPTION 308379 Guard - Front Top 308380 Guard - Front Bottom 36408 Bolt - Carriage, 3/8-16NC x 1 SS 36425 Washer - Flat 3/8 SS 36420 Washer - Lock 3/8 SS 36414 Nut - Hex 3/8-16NC SS 308191...

  • Page 58: Pintle Chain Conveyor

    NEW LEADER NL450C PINTLE CHAIN CONVEYOR HEADER #1 – Cross bars every 3rd link #2 – Cross bars every other link ITEM PART NO. DESCRIPTION 304465-AD #2 Chain - Assembly 305774-AD #1 Pintle Chain 310292 Crossbar Weldment 310293 Cross Bar Weldment 90284 Chain - Link 36697...

  • Page 59: Chain Shield Hardware

    NEW LEADER NL450C CHAIN SHIELD HARDWARE HEADER ITEM PART NO. DESCRIPTION 305450-AD Chain Shield 36414 Nut – Hex 3/8 71829 Bolt – Carriage 3/8 x 1 36420 Washer – Lock 3/8 Please Give Part No., Description 307306-C Page Rev. A &...

  • Page 60: Conveyor Idler

    NEW LEADER NL450C CONVEYOR IDLER HEADER ITEM PART NO. DESCRIPTION 36508 36508 Screw - Weldment Adjusting SS 39110 39110 Nut Weldment 20925 20925 Pin – Roll 1/4 x 1 1/2 30725 30725 Collar – Set 1” 22511 22511 Bearing – Take-up 97051 97051 Sprocket –...

  • Page 61: Conveyor Drive

    NEW LEADER NL450C CONVEYOR DRIVE HEADER 13,14 7,8,9 18,21 ITEM PART NO. DESCRIPTION 303304 303304 Shaft – Drive 6465 6465 Bearing 88276 88276 Sprocket 20748 20748 Screw – Set 3/8-16 x 3/8 6131 6131 Key – Square 3/8 x 1 1/2 82882 82885 Guide –...

  • Page 62: Breather Tube - Gear Case

    NEW LEADER NL450C BREATHER TUBE - GEAR CASE HEADER SINGLE PINION GEARCASE ITEM PART NO. DESCRIPTION 306891 Fitting - 4-2 630202K 9005-0-7761 Tubing - 1/4 OD Air Brake Black 1.5 ft 307306-C Please Give Part No., Description Page Rev. A &...

  • Page 63: Encoder

    NEW LEADER NL450C ENCODER HEADER ENCODER REMOVED ITEM PART NO. DESCRIPTION 303994 Encoder – 180 with Hardware 310601 Coupler - Rate Sensor SS 310603 Screw - Set 1/4-20NC x 1/4 SS 81949 Bracket - Sensor, Idler Mount 2696 Collar - Set 1” Please Give Part No., Description 307306-C Page Rev.

  • Page 64: Conveyor Chain Oiler

    NEW LEADER NL450C CONVEYOR CHAIN OILER HEADER 5, 6,16, 30 307306-C Please Give Part No., Description Page Rev. A & Unit Serial No.
  • Page 65 NEW LEADER NL450C CONVEYOR CHAIN OILER CONTINUED HEADER ITEM PART NO. DESCRIPTION 306066 Tank - Assembly, Includes 1-13 305754 Tank – Weldment 306657 Elbow 304409 Mount - Pump 304390 Pump - Assembly with Connector 304834 Pump - Diagram 1.1 GPM 30 PSI 303730-AB Connector - FEM Socket Sealed 303730-CC...
  • Page 66 NEW LEADER NL450C CONVEYOR CHAIN OILER CONTINUED HEADER ITEM PART NO. DESCRIPTION 306649 Nozzle - Mount Assembly 304839 Angle - Weldment Nozzle Mount 306650 Body - Male Nozzle Brass 306651 Strainer - Check Valve 306652 Plate - Orifice SS 306654 Nozzle - Even Flat Spray SS 306653 Cap - Nozzle...

  • Page 67: Wiper Front

    NEW LEADER NL450C WIPER FRONT HEADER ITEM PART NO. DESCRIPTION 36393 Screw – Machine 1/4 x 3/4 303314 Wiper – Belt 303315 Retainer – Belt 36418 Washer – Lock 1/4 36412 Nut – Hex 1/4 Please Give Part No., Description 307306-C Page Rev.

  • Page 68: Rear Wiper - #2 & #3 Conveyors

    NEW LEADER NL450C REAR WIPER - #2 & #3 CONVEYORS HEADER ITEM PART NO. DESCRIPTION 304441 304442 Wiper – Assembly Rear 303312 305329 Lip – Weldment Rear 303306 305329 Wiper – 34” Rear Lip 304446 304446 Belt – Rear Wiper 20617 56400 Screw –...

  • Page 69: Fenders

    NEW LEADER NL450C FENDERS HEADER 10,11,12,13 ITEM PART NO. DESCRIPTION 83074 83086 Fender – RH 83077 83089 Fender – LH 83021 96969 Angle – Mounting 83017 96965 Formed Angle – RH 83018 96966 Formed Angle – LH 306365-X1 306365-X2 Support - Fender RH 306366-X1 306366-X2 Support - Fender LH...

  • Page 70: Spinner Divider, Guard & Shields

    NEW LEADER NL450C SPINNER DIVIDER, GUARD & SHIELDS HEADER Guards are intended to reduce hazard of entanglement with machinery and injury. All WARNING guards must be installed per this drawing before spreader is put into operation. ITEM PART NO. DESCRIPTION 305309 Divider –...

  • Page 71: Spinner Sensor

    NEW LEADER NL450C SPINNER SENSOR HEADER ITEM PART NO. DESCRIPTION 97310 Sensor – Kit Spinner 89011 Sensor – Assembly 89009 Cable – Sensor Extension 86672 Bracket 42448 Cap Screw – 1/4 x 1-1/2 SS 36393 Cap Screw – 1/4 x 3/4 SS 36423 Washer –...

  • Page 72: 34" Hydraulic Fans

    NEW LEADER NL450C 34” HYDRAULIC FANS HEADER 307306-C Please Give Part No., Description Page Rev. A & Unit Serial No.
  • Page 73 NEW LEADER NL450C 34” HYDRAULIC FANS CONTINUED HEADER ITEM PART NO. DESCRIPTION 304895 34” Fan Assembly, Includes 1-59 304899 34” Fan – LH Assembly, Includes Items 8, 49-54 304900 34” Fan – RH Assembly, Includes Items 8, 50-55 304911 Plate – Weldment Back 305945 Motor –...
  • Page 74 NEW LEADER NL450C 34” HYDRAULIC FANS CONTINUED HEADER ITEM PART NO. DESCRIPTION *36422 Washer – Lock 1/2 SS *36416 Nut – Hex 1/2-13NC SS 304906 Hose Assembly 87110 Decal – Scale 98319 Decal - Patent 302449 Fitting – 16-16 S1040-38 Non Standard 302160-AB Valve –...

  • Page 75: Reservoir

    NEW LEADER NL450C RESERVOIR HEADER ITEM PART NO. DESCRIPTION 305054 Hydraulic Tank Assembly 305050 Tank – Hydraulic Weldment 88838 Filter – Return 306772 O-Ring - Cover Filter 306773 O-Ring - Housing Filter 306789 Tetreseal - Filter Assembly 305066 Element - Filter Cellulose Media 305063 Strainer –...

  • Page 76: Reservoir & Cooler

    NEW LEADER NL450C RESERVOIR & COOLER HEADER 307306-C Please Give Part No., Description Page Rev. A & Unit Serial No.
  • Page 77 NEW LEADER NL450C RESERVOIR & COOLER CONTINUED HEADER ITEM PART NO. DESCRIPTION 305054 Hydraulic Tank Assembly 43534 Indicator – Service 38575 Gauge – Sight & Temperature 36398 Cap Screw – 3/8-16NC x 1 SS 72054 Nut – Lock 3/8 SS 36424 Washer –...
  • Page 78 NEW LEADER NL450C HYDRAULICS HEADER 307306-C Please Give Part No., Description Page Rev. A & Unit Serial No.

  • Page 79: Hydraulics

    NEW LEADER NL450C HYDRAULICS CONTINUED HEADER ITEM PART NO. DESCRIPTION 305504-AD Tube – Assembly 16’ 98119 Tube – Assembly 16’ 305502-AD Tube – Assembly 16’ 304231 Tube - Assembly 16’ 96925 Plate – Top 1-1/4 Tube 96926 Clamp – Pair 1-1/4 Tube 75036 Clamp - Pair 3/4 Tube 86557...
  • Page 80 NEW LEADER NL450C HYDRAULICS CONTINUED HEADER ITEM PART NO. DESCRIPTION 29802 Fitting - 16 070112 56132 Hose Assembly - 3/4 x 2’ 100R2 58960 Hose Assembly - 3/4 x 15-1/2 100R2 29809 Fitting – 12-12-12 070433 34816 Fitting - 6-6 070221 29781 Fitting - 12-12-12 070432 34709...
  • Page 81 NEW LEADER NL450C HYDRAULICS CONTINUED HEADER ITEM PART NO. DESCRIPTION 305524 Hose Assembly - 1” x 50” 100R12 *96906 Sleeve - Abrasive 76044 Gauge - Hydraulic 5000 PSI 306796 Hose Assembly - 1/4 x 120” 100R2 29765 Fitting - 4-4 070102 34757 Fitting - 6-4 070120 56279...

  • Page 82: Conveyor Hydraulics

    NEW LEADER NL450C CONVEYOR HYDRAULICS HEADER ITEM PART NO. DESCRIPTION 307316 Hose Assembly - 3/4 100R2 x 192 305266 Clamp - Hose 305267 Plate - Cover, Hose Clamp 71830 Cap Screw - 5/16-18NC x 2-1/2 SS 42221 Nut - Lock 5/16-18NC SS 305262 Nipple - QD 1/2 305263...

  • Page 83: Sight Window

    NEW LEADER NL450C SIGHT WINDOW HEADER 2,3,4 ITEM PART NO. DESCRIPTION 302686 Window - Sight 5 x 12 42034 Nut - Lock 1/4 SS 36395 Cap Screw - 1/4-20 x 1 SS 36423 Washer - Flat 1/4 SS Please Give Part No., Description 307306-C Page Rev.

  • Page 84: Spinner Motor

    NEW LEADER NL450C SPINNER MOTOR 307306-C Please Give Part No., Description Page Rev. A & Unit Serial No.
  • Page 85 NEW LEADER NL450C SPINNER MOTOR CONTINUED HEADER ITEM PART NO. DESCRIPTION 305945 Motor - Hydraulic 306093 Shaft – Assy Output, Includes: 1-8,20,21 72548 Kit - Seal, Includes 3,4 & 20 305824 Retainer – Assy w/Seals, Includes 1,3-5 306088 Shaft – Output 306091 Ring –...

  • Page 86: Lights

    NEW LEADER NL450C LIGHTS 6,7,10 5,6,7 307306-C Please Give Part No., Description Page Rev. A & Unit Serial No.
  • Page 87 NEW LEADER NL450C LIGHTS CONTINUED ITEM PART NO. DESCRIPTION 305186 Kit - Reflective Farm Implement, Includes 11-13 305213 Guard - Tail Light 304 304704 Grommet - Super 45 304715 Light - Super 45 Amber 300150 Light STT Red 36393 Cap Screw - 1/4-20NC x 3/4 SS 36418 Washer - Lock 1/4 SS 36412...

  • Page 88: Decals

    NEW LEADER NL450C DECALS NEW LEADER NEW LEADER NL450C NEW LEADER 307306-C Please Give Part No., Description Page Rev. A & Unit Serial No.
  • Page 89 NEW LEADER NL450C DECALS CONTINUED ITEM PART NO. DESCRIPTION 150034 Caution - Operation & Maintenance Danger - Moving Part 39138 Warning - High Pressure Fluid 55630 Warning - Falling Hazard 55631 Warning - Moving Part Hazard Caution - Hazardous Material Flying Material 71526 Spread Pattern...
  • Page 90 NEW LEADER NL450C NOTES 307306-C Please Give Part No., Description Page Rev. A & Unit Serial No.

  • Page 91: Wheels & Tires

    NEW LEADER NL450C WHEELS & TIRES HEADER ITEM PART NO. DESCRIPTION 304926 Hub - Assembly 305794 Spacer - Wheel Bolt 304926-AA Hub - Wheel 304926-AB Drum - Brake 304926-AC Stud 304926-AD Nut - Flange Swivel 304926-AE Bearing - Cup Inner 304926-AF Bearing - Cup Outer 307280...

  • Page 92: Pump Hydraulics

    NEW LEADER NL450C PUMP HYDRAULICS HEADER 13,14,15 1,3,5 12,14,15 2,4,5,7 11,14 14,19,20,21 Please Give Part No., Description 307306-A Page Rev. A & Unit Serial No.
  • Page 93 NEW LEADER NL450C PUMP HYDRAULICS CONTINUED HEADER ITEM PART NO. DESCRIPTION 304921 Hydraulic Pump 304921-AZ Pump - Service Kit 305173 Support - Pump 20131 Cap Screw - 1/2-13 x 2 20128 Cap Screw - 1/2-13NC x 1-1/4 20680 Nut - Lock 1/2-13NC 20682 Nut - Lock 5/8-11NC 20695...

  • Page 94: Driveline

    NEW LEADER NL450C DRIVELINE Please Give Part No., Description 307306-A Page Rev. A & Unit Serial No.
  • Page 95 NEW LEADER NL450C DRIVELINE CONTINUED ITEM PART NO. DESCRIPTION 307294-AA Yoke 307294-AB Kit - Cross & Bearing 307294-AC Yoke - Double 307294-AD Kit - Cross & Bearing *307294-AX Kit - Collar (In Item 10) 307294-AF Pin - Spring 307294-AG Profile - Inner 307294-AH Profile &...

  • Page 96: Hydraulic Brakes

    NEW LEADER NL450C HYDRAULIC BRAKES HEADER 38,45 29,40,47 28,39,44 30,46 1,48,61,62 Please Give Part No., Description & Unit Serial No.
  • Page 97 NEW LEADER NL450C HYDRAULIC BRAKES CONTINUED HEADER ITEM PART NO. DESCRIPTION 20643 Nut - Hex 5/16-18NC 301338 Tube - 1/4 72” 21655 Grommet - Rubber 1-1/2 304925 Spindle 304926 Hub - Assembly See Wheels & Tires section for Hub Assembly parts. 304933 Cam - Shaft LH 304934...
  • Page 98 NEW LEADER NL450C HYDRAULIC BRAKES CONTINUED HEADER ITEM PART NO. DESCRIPTION 304928-AA Brake - Shoe 304928-AB Roller 304928-AC Retainer - Roller 304928-AD Pin - Anchor 304928-AE Retainer - Spring Return 304928-AF Spring - Return 304928-AG Retainer - Spring 304936 Bearing - Cone 759 304937 Bearing - Cone 740 304938...
  • Page 99 NEW LEADER NL450C HYDRAULIC BRAKES CONTINUED HEADER ITEM PART NO. DESCRIPTION 20036 Cap Screw - 5/16-18NC x 1 20129 Cap Screw - 1/2-13NC x 1-1/2 58560 Cap Screw - 3/4-10 x 7 89545 Cap Screw - 1NC x 7 305702 Cap Screw - 1-8NC x 4-1/2 20711 Washer - Lock 5/16...

  • Page 100: Brake Lines

    NEW LEADER NL450C BRAKE LINES HEADER Please Give Part No., Description & Unit Serial No.
  • Page 101 NEW LEADER NL450C BRAKE LINES CONTINUED HEADER ITEM PART NO. DESCRIPTION 34839 Fitting - 8-8 070601 34809 Fitting - 8-6 070120 305408 Hose - Assembly 3/8 100R1 x 124 305410 Clamp - Tubing 20711 Washer - Lock 3/8 20038 Cap Screw - 5/16-18 x 1-1/2 86419 Fitting - 8-8-8 070401 34804...
  • Page 102 NEW LEADER NL450C HEADER DECALS ITEM PART NO. DESCRIPTION 305281 Decal - Caution Braking 305288 Decal - Caution Tow 305289 Decal - Caution Tipping 305745 Decal - Imp. Tightening 39017 Decal - No Step 305239 Decal - Grease 305275 Decal - Trailer Tire Speed 305298 Decal - Weight Restrictions *58631...
