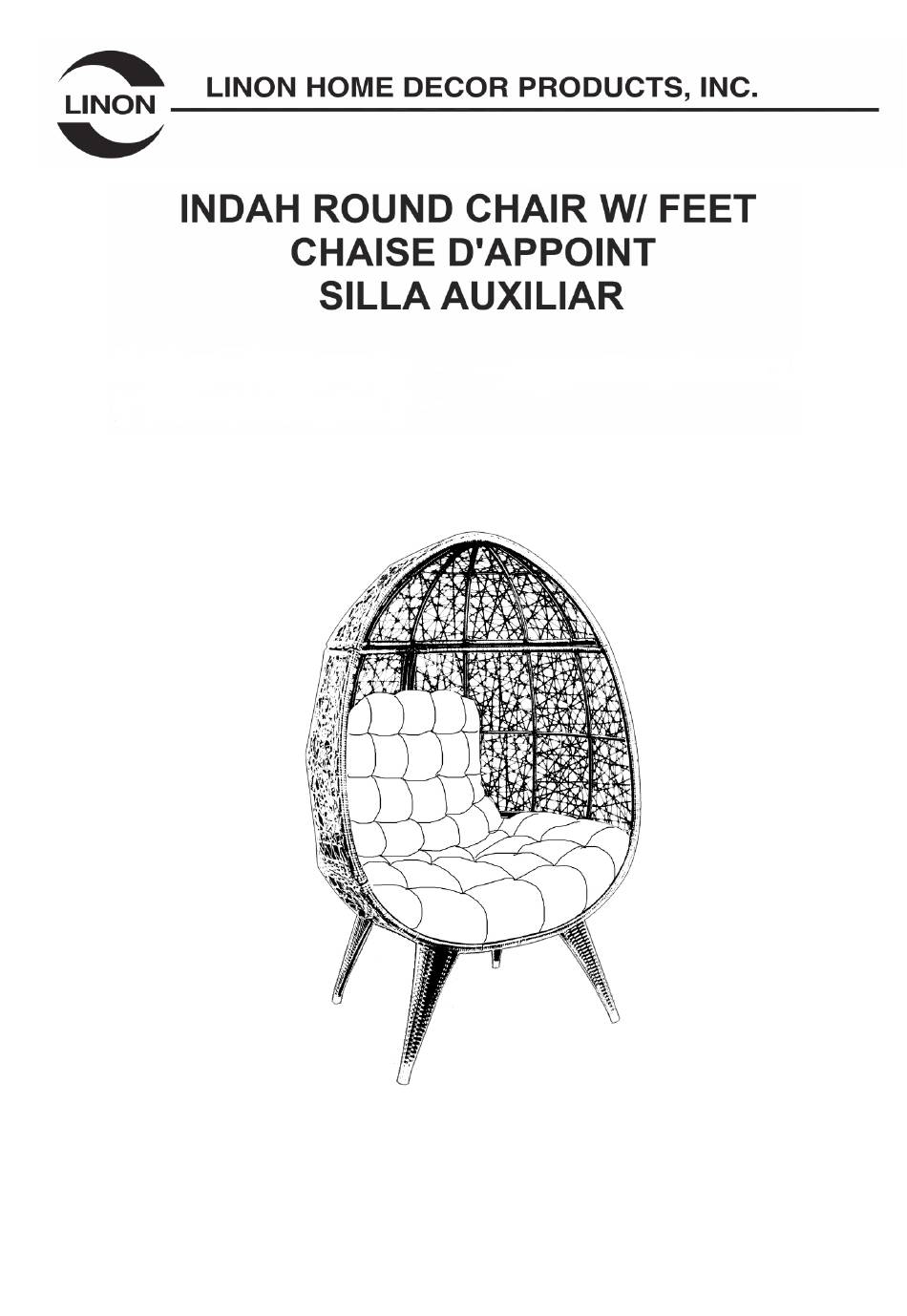

- Page 1 IDO - 20459...
- Page 3 Assembly Instructions Caution : Please read this carefully before you proceed Indah Round Chair w/Feet Part List Description Label Picture Front Left Leg Front Right Leg Back Left Leg Back Right Leg Bottom Seat Panel Middle Left Side Panel Middle Right Side Panel Top Panel Seat Cushion...
- Page 4 Assembly Instructions Caution : Please read this carefully before you proceed Indah Round Chair W/Feet Hardware List / Liste des pieces / Lista de piezas Label Picture Description Cap Nut Ring Washer Short Bolt M6 45mm Long Bolt M6 60mm Wrench Allen Key Assembly Steps...
- Page 5 Assembly Step 1 Open the carton and place all the parts onto a clean surface. Unpack all hardware packages. Place the Bottom Seat Panel (E) with its mounting positions, facing upwards, attach Front Left Leg (A) to Bottom Seat Panel (E) using Short Bolt (3), Ring Washers (2), Nut (5), Cap Nut (1) and tighten using Allen Key (7) and Wrench (6).
- Page 6 Assembly Step 3 Attach Top Panel (H) to the Middle Left Side panel (F), and Middle Right Side Panel (G) by first aligning the end pipes of Top Panel (H), to the end pipes of Middle Side Panel, then assemble them by using Long Bolt (4), Ring Washers (2), Nut (5) and tighten using Allen Key (7) and Wrench (6) Do not fully tighten the bolts.
- Page 7 Assembly Step 6 Place the Seat Cushion (I) to the assemled Indah Round Chair w/Feet and once the Seat Cushion is well positioned,secure it by tightening the rope on the back of Seat Cushion (I) to the back frame of Indah Round Chair w/Feet.
