Linon 6206SF-AB-KD-U Assembly Instructions

STEP 3)

3.1. ATTACH THE PRE- ASSEMBLED UNIT

(PIECES # 1, AND # 2) TO THE
BASE # 3, FIX THE PIECES USING
(08) SCREWS (A), A PHILLIPS
HEAD SCREWDRIVER
(NOT PROVIDED) AND THE PRE-
DRILLED HOLES AS GUIDE,

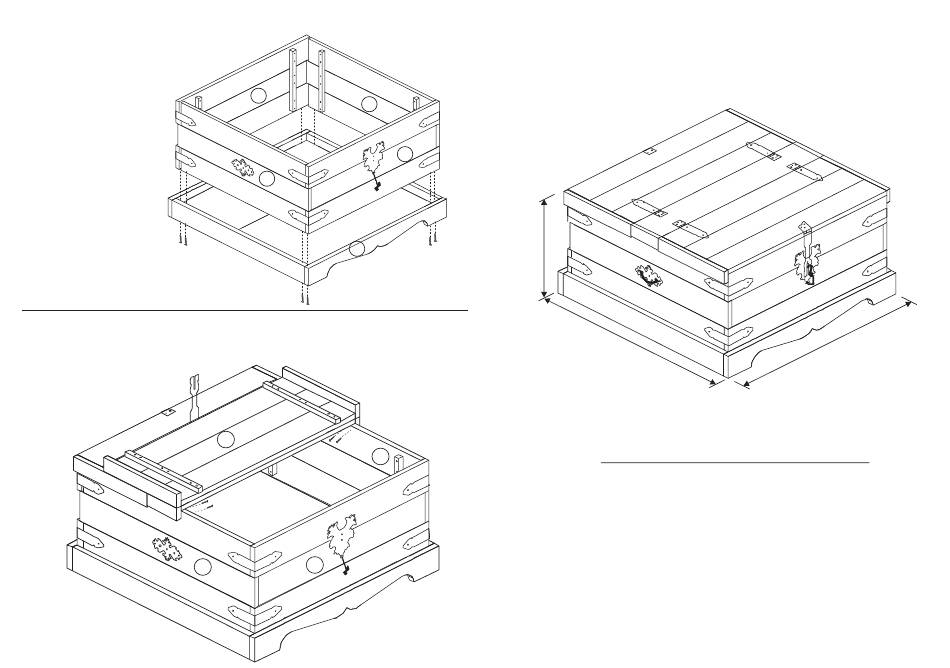

AS SHOWN ON DRAWING.
A

STEP 4)

4.1. ATTACH THE TOP PANEL # 4 TO ASSEMBLED UNIT USING THE DOWELS AS GUIDE,
AND FIX IT USING (04) SCREWS (A), A PHILLIPS HEAD SCREWDRIVER (NOT PROVIDED)
AND THE PRE-DRILLED HOLES IN THE RIGHT AND LEFT SIDE PANELS #2 AS GUIDE, AS
SHOWN ON DRAWING.
2
PAGE 4
1
2
2
3
FIGURE 3
A
4
A
2
A
1
FIGURE 4
1
A
18"
WE TRY TO INSURE THAT YOUR FURNITURE ARRIVES IN EXCELLENT CONDITIONS.OUR
SERVICE REPRESENTATIVES ARE READY TO HELP YOU WITH QUICK SERVICE.PLEASE
CALL IF A PART IS DAMAGED OR MISSING. PLEASE CALL PRIOR TO RETURNING THE
ITEM TO THE STORE. OUR OFFICE IS OPEM 9 AM TO 5 PM EASTERN STANDARD TIME.
PLEASE READ ALL INSTRUCTIONS IN THIS BOOKLET BEFORE STARTING ASSEMBLY.
PAGE 1
ASSEMBLY INSTRUCTIONS
DOUBLE TRUNK
MODEL # 6206SF-AB-KD-U
35 5/8"
WE ARE HERE TO HELP!
LINON HOME DECOR PRODUCTS, INC.
TOLL FREE NUMBER 1.800.262.1852
TEL: (516) 699.1000 FAX: (516) 699.1001
e-mail: customersupport@linon.com
IMPORTANT:
MADE IN BRAZIL
FOR LINON HOME DECOR PRODUCTS, INC.
35 5/8"
BY RS3/034
04/03
