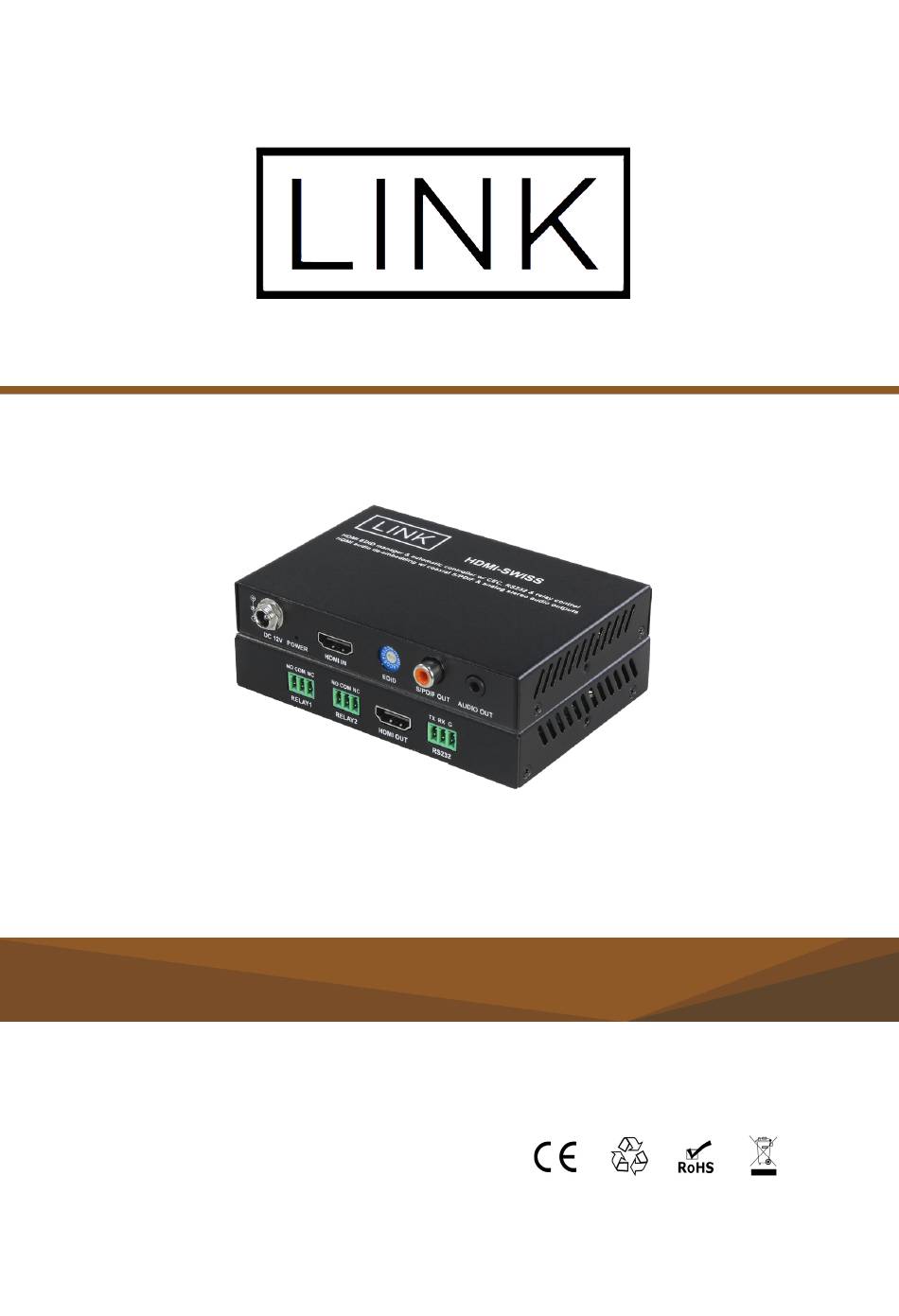

- Page 1 LINK HDMI-SWISS HDMI In-line Controller User Manual Version: V1.0.1...
- Page 2 Important Safety Instructions 1. Do not expose this apparatus to 6. Clean this apparatus rain, moisture, dripping or only with dry cloth. splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus. 7. Unplug this apparatus 2.
- Page 3 Warnings of FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 4: Table Of Contents
Table of Contents Introduction ....................2 Features ....................2 Package Contents ..................3 Specifications .................... 3 Panel Description ..................4 Application Diagram ..................6 EDID Presets ....................7 RS232 Control ....................8 Troubleshooting ................... 10 Warranty Terms and Conditions ..............11... -
Page 5: Introduction

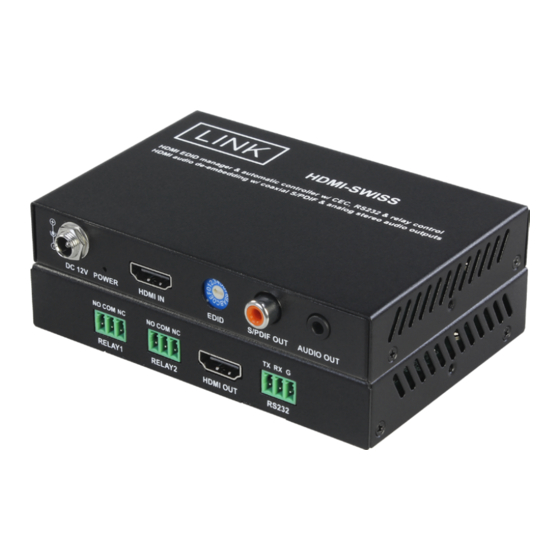

Thank you for purchasing this product. For proper installation and optimum performance, please read the instructions in this manual carefully. LINK HDMI-SWISS is an HDMI In-line Controller, with resolutions up to 4K@60Hz (chroma sub-sampling 4:4:4 8-bit only) and HDCP 2.2. It features de-embedded audio distribution system. -
Page 6: Package Contents
Package Contents • 1 x HDMI-SWISS • 1 x Power Adapter (DC 12V 1A) • 3 x 3.5mm 3-Pin Phoenix Connector • 2 x Mounting Brackets (with Screws) • 1 x User Manual Specifications Technical Input/Output Signal Type HDMI with 4K@60Hz 4:4:4, HDCP 2.2... -
Page 7: Panel Description
General Humidity 10% to 90%, non-condensing Human-body Model: ESD Protection ±8kV (Air-gap discharge)/ ±4kV (Contact discharge) Power Supply DC 12V 1A Power Consumption ≤ 2 W (Pair, PoC) (Maximum) Device Dimension 120mm x 20mm x 80mm / (W x H x D) 4.72’’... - Page 8 Name Description DC 12V Connect to the power adapter provided. POWER LED On/Off: The device is powered on/off. HDMI IN Connect to an HDMI source device such as a Blu-Ray, DVD Player. EDID Switch for EDID Management with 15 EDID presets.
-
Page 9: Application Diagram
Application Diagram Amplifier In-ceiling Speaker HDMI IN AUDIO OUT AUDIO OUT HDMI Relay control RS232 Control Projector Project Screen... -
Page 10: Edid Presets
EDID Presets Switch for EDID Management with 15 presets as follows: Description Description Copy EDID FROM HDMI Output 1400 x 1050@60Hz 2CH 3840 x 2160P@60Hz 2CH 1360 x 768@60Hz 2CH 3840 x 2160P@30Hz 2CH 1280 x 1024@60Hz 2CH 1920 x 1080P@60Hz 2CH 1280 x 960@60Hz 2CH 1280 x 720P@60Hz 2CH 1280 x 768@60Hz 2CH... -
Page 11: Rs232 Control
RS232 command for controlling the sink device power on/off the commands are triggered by detecting input signal status. To configure the unit’s ability to do this, connect a PC to HDMI-SWISS via a (RS232 3pins) UART-to-USB cable, check which port on the computer the RS232 cable is connected to in the device manager. - Page 12 HDMI-SWISS to the sink device. Then click “Set” to take effect. Set Relay Mode: Set relay mode for the sink device. Latch –relay closes and latches when it is triggered; Momentary –only closes for a moment and then opens after it is triggered.
-
Page 13: Troubleshooting
Troubleshooting No Power • Ensure the power is on. • Ensure you use the power adapter provided in the package. No Picture or Video Flash • Ensure all devices are on, and all cables are qualified and connected properly. • Ensure all the cables’... -
Page 14: Warranty Terms And Conditions
Warranty Terms and Conditions For the following cases LINK shall charge for the service(s) claimed for the products if the product is still remediable and the warranty card becomes unenforceable or inapplicable. The original serial number (specified by LINK) labeled on the product has been removed, erased, replaced, defaced or is illegible.
