Elura SUBR10IC Instructions

Overview.
Thank you for purchasing Elura speaker
products. Elura is a high performance
custom installed product engineered
for movie and music enthusiasts. Each
Elura product is manufactured to the
highest quality standard using state of
the art components and built for years
of enjoyment.
Considerations.
Before connecting, mounting or
installing any Elura products, please
read all instructions. Careful
considerations should be given to avoid
obstacles such as electrical wires,
plumbing or HVAC products.
If you are unsure or inexperienced with
construction methods, please consult a
professional.
Use the proper tools and pay close
attention to detail while connecting the
speaker wires. Make sure all equipment
is powered off while connecting and
disconnecting any equipment.
Improper use, not following precautions
or instructions may cause damage to
property, equipment, and possible injury
or electrocution.

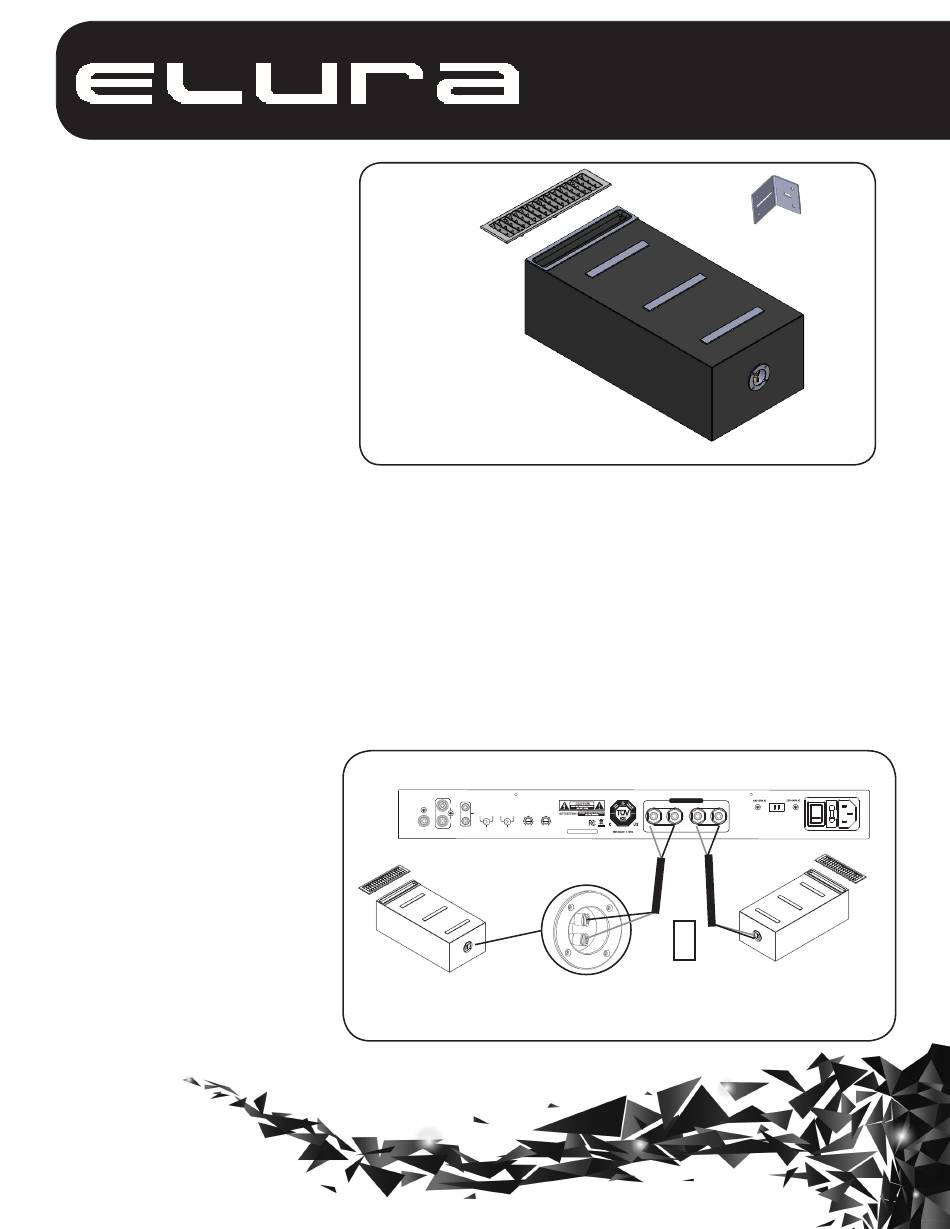

Contents.
• Elura SUBR10IC
• All hardware needed to attach
the speaker enclosure onto the
ceiling or floor joists.
• Sound deadening foam adhesive
strips
• HVAC like speaker grille &
screws
• Retrofit locating template
• Installation Manual
Grille Kit
• Grille
• 6 - Painted screws
• 1 - Grille Gasket
Accessories
• 5 - Acoustic foam strips
• 1 - MDF Cover / Template
• 1 - Retrofit Locating Template
Features.
• Conveniently hide the subwoofer
into a ceiling or floor joists without
degrading performance.
• Long throw 10" woofer.
• Braced and slot-vented rigid MDF
enclosure.
• Designed to use an HVAC like vent
grille to blend into the environment.
• Engineered to work with Elura
subwoofer amp, model AMP500/1.
Elura AMP500/1 Rear Panel
IN
L
TRIGGER
DC 12V ON EQ 1 EQ 3
R
OUT AUTO EQ 2
LFE IN LINE IN
POWER MODE SETTINGS
Sub 1
Speaker Terminal Cup
model SUBR10IC
high performance
custom installed subwoofer
Subwoofer
Connections.
Connect the subwoofer speaker
connections to high-quality 14 to 16
gauge stranded CL3 speaker wire and
connect to the AMP500/1 speaker
output connections. The stripped bare
ends of the speaker wire may be
connected directly to the speaker's
binding posts. Twist the speaker wire
to avoid strands from shorting from
one connection to the other and pay
careful attention to polarity (+ / - ).
SPEAKER OUTPUT
+ - +
CROSSOVER PHASE
50 200 0° 180° SUB 1 Total Impedance
S/N: (Sub 1+Sub 2) minimum 4Ω
-
+
Mounting Kit
• 16 - Screws
• 4 - L brackets
-
SUB 2
Sub 2
* Note: You can add
up to (2) SUBR10IC
subwoofers to (1)
Elura AMP500/1
