GE Profile PDWT502RII Dimensions And Installation Information

PDWT502RII
GE Profile Dishwasher with SmartDispense
™

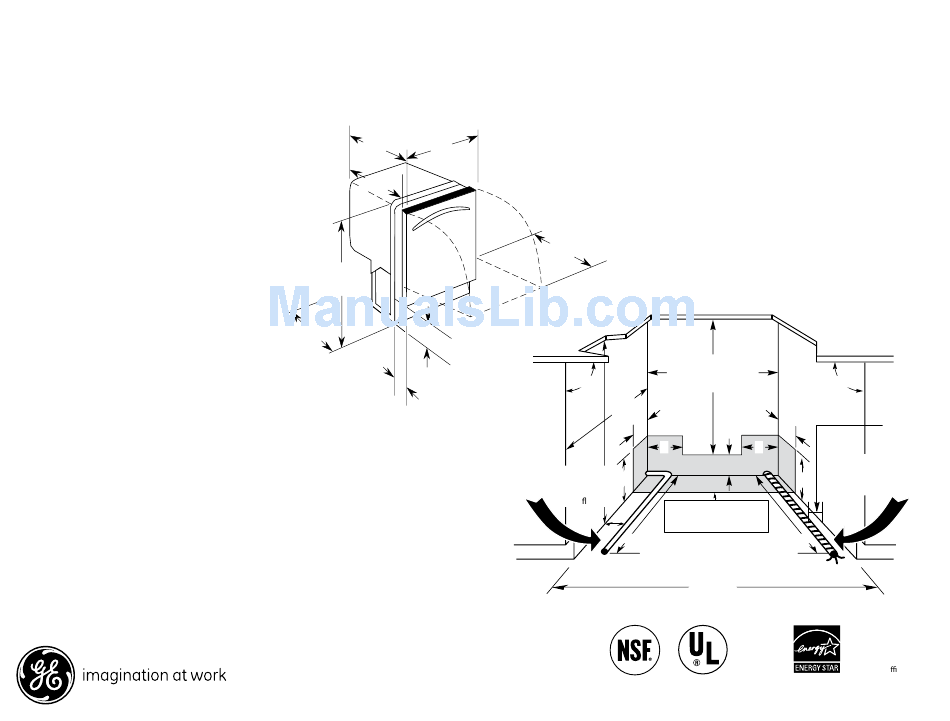

Dimensions and Installation Information (in inches)
Electrical Rating
Voltage AC.......................................................... 120
Hertz.....................................................................
Total connected load amperage............. 9.9
Calrod heater watts max........................ 875
®
For use on adequately wired 120-volt,
15-amp circuit having 2-wire service
with a separate ground wire. This appliance
must be grounded for safe operation.
Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.
††† Add 3/4" for custom panel and additional
room for custom handle
An installation template is packed with these
models and may be obtained in advance.
Order Pub. No. 5-X063.
For answers to your Monogram, GE Profile
®
GE appliance questions, visit our website at
®
ge.com or call GE Answer Center service,
®
800.626.2000.
24
†††
60
22-1/2
33-13/16" MIN.
adj. to 35"
21-1/4
2-3/4
Add 3/4" for custom panel and additional room
or
™
Technology
™
24
27-1/2
4 (Adjustable)
90°
Hot
water
34" to 34-3/4"
line on
Underside
left
of countertop
to oor
This wall area
must be free of
pipes or wires
24"
4 4
MIN.
4
5 5
6
Plumbing and electrical
2
service must enter
inside shaded area
19" MIN. from wall 24" From wall
24" MIN.
Listed by
Underwriters
Laboratories
Specification Created 6/09
Countertop
90°
Electrical
wiring is
3" from
cabinet
Electrical
wiring on
6
right
As an ENERGY ST AR
®
partner, GE has determined
that this product meets the
ENERGY ST AR guidelines
for energy e ciency.
