KMART Parallel Garment Rack Assembly Instructions

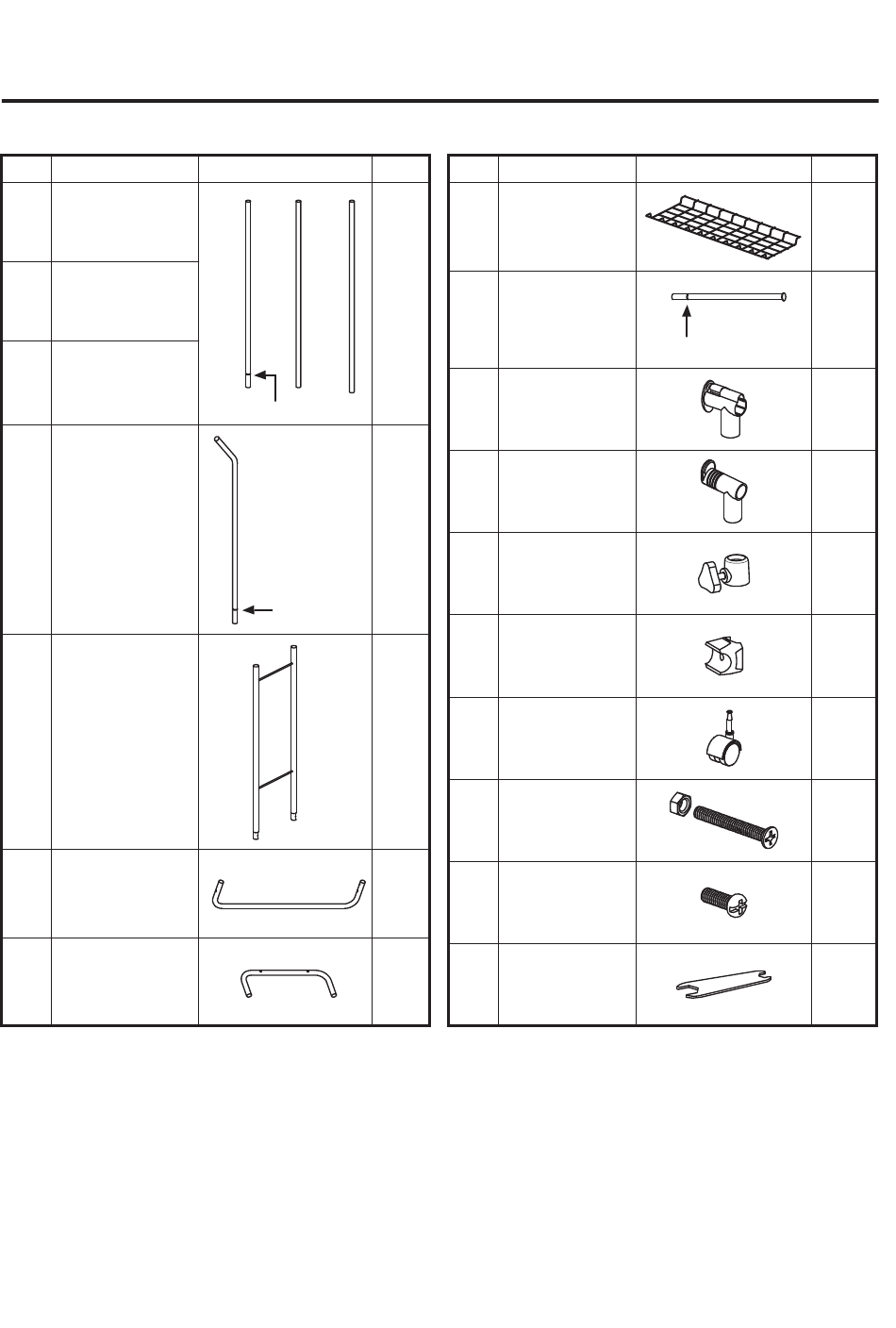

Parts Supplied
Ref Description
A 2 pcs Chrome
Upper Back Post
(with red marker)
B
1 pc Back Top
Horizontal Bar
(no marker)
C 1 pc Front Top
Horizontal Bar
(no marker)
• Longer Bar
D Chrome Upper
Front Post
(with red marker)
E White Lower
Side Stand
F Bottom "U" Bar
G
Base Rails
Tools Required (not supplied)
•
Phillips head screwdriver
•
Cushioned hammer
User Instructions:
To adjust the garment rack, simply release the locking mechanism located on both vertical
•
bars. Move the bar to the desired height, and re-lock. Ensure vertical bars are simultaneously
adjusted at all times.
PLEASE NOTE: Failure to follow this instruction will place undue stress on the plastic joints,
•
and may cause the Plastic components to break.
• MAXIMUM WEIGHT LOAD 10KGS evenly distributed over rails.
Assembly Instructions
Parallel Garment Rack
Illustration
AX2 BX1 CX1
red marker
red marker
Qty Ref Description
4 pcs H Wire Shelf
I Extendable Post
(with red marker)
J Back Post
Connector
2 pcs
K Front Post
Connector
L Locking Screw
M Base Rails
Connector
2 pcs
N Castor
Long Screw
O
& Nut
2 pcs
P Screw
2 pcs
Q Spanner
Illustration
red marker
Qty
1 pc
2 pcs
2 pcs
2 pcs
4 pcs
4 pcs
4 pcs
4 sets
4 pcs
1 pc
