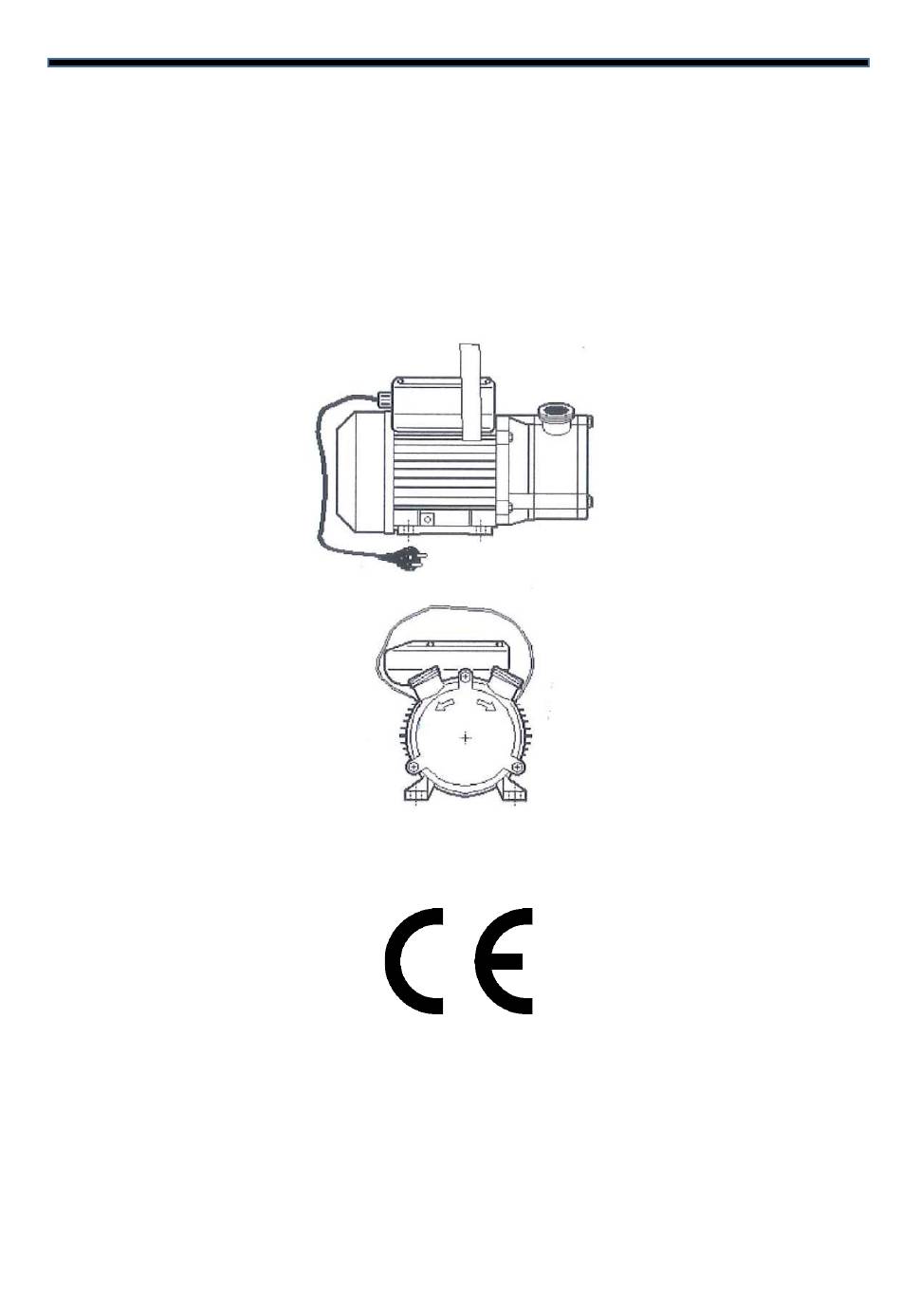

- Page 1 INSTRUCTIONS MANUAL BIDIRECTIONAL SELFPRIMING...
- Page 2 Overall dimensions Mod. G20I G20I95° A (mm) B (mm) H (mm) Technical specifications Model Unità G20I G20I95° Connection ¾” 1” 1 ¼” ¾” ¾” income/outcome Delivery l/min Lift Power Revolutions of the engine 2850 2850 2800 2850 2850 Protection of the engine Net voltage Net frequency 8 uF...

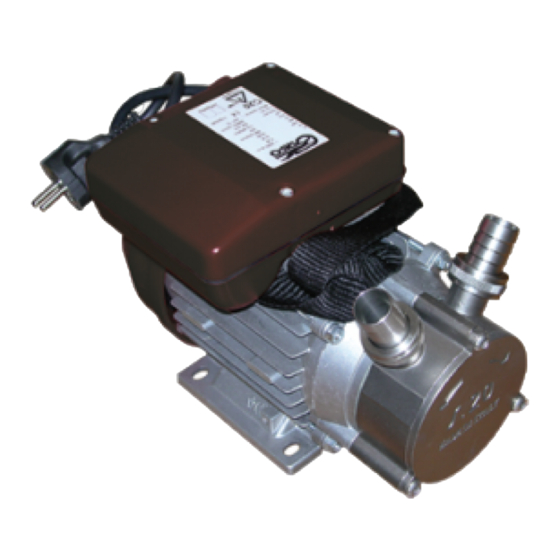

- Page 3 Description All the transfer pumps are guaranteed as execution, as used materials and provide the performances, when they are correctly used and subjected to maintenance, following the instructions given. All products are covered by a one-year warranty starting from the date of shipment of the material. This is the classic self-suction liquid ring auto suction pump with a star-shaped impeller.
- Page 4 Usage control • Read the manual carefully before starting to use the pump. • Do not use the machine to suck or pump liquids or substances other than those indicated in the section Field of use. • Only operate the self-priming self-priming pump when you are certain that the flow of treated liquid is directed towards a container that collects it.
- Page 5 Starting and self priming effect Before start the pump, fill up the body of the pump with liquid to facilitate the self priming. Start the engine. After 30 seconds, if the self priming does not begin, stop the pump and check the presence of air in the pipe. The tightening of hose clamps and pipe unions must be controlled frequently.
- Page 6 Maintenance For any modification not authorize, the producer is not liable. All the motioning parts are pre-lubricated in the factory. Never use oils or greases on the motioning parts, they might be damaged. All the spare parts and accessories used during the reparation must be original and authorized by the producer in order to have the highest safety during the working process.
- Page 7 Esplosi e ricambi DE - ZEICHNUNG EINER AUSEINANDER GEBAUTEN PUMPE, UM DIE IDENTIFIKATION DER ERSATZTEILE ZU ERLEICHTERN 1.Deckelschraube, 2. Raddeckel, 3. OR-Ring, 4. Hydraulikrad, 5. gekrümmte Gummihalterung, 6. gerade Gummihalterung, 7. Dichtung der Gummihalterung, 8. Gewindering der Gummihalterung, 9. Pumpenkörper, 10. Dichtungsring, 11.
- Page 8 ventilador, 23.Tirante motor, 24.Cable con clavija Schuko y cortacircuito térmico, 25.Tornillos de seguridad, 26.Tornillos antidestornillamiento, 27.Tuerca antidestornillamiento motor. 1.Tornillo tapa, 2.Tapa rodete, 3.Anillo OR, 4.Rodete hidráulico, 5.Portagoma curvada, 6.Portagoma recta, 7.Junta portagoma, 8.Anillo portagoma, 9.Cuerpo bomba, 10.Retén, 11.Tuerca antidestornillamiento cuerpo bomba, 12.Junta goma tela, 13.Soporte bomba, 14.Eje con cojinetes, 15.Clavija, 16.Anillo Seeger, 17.Anillo compensador, 18.Polea FR –...
