Williams AV WaveCAST Quick Start Manual

WaveCAST
WF T5

Wi-Fi Network Required

The WaveCAST connects to the installation location's Wi-Fi
Network. It does not provide a network on its own. The Wi-Fi
network will need to be installed and established before the
WaveCAST can be used.
Upgrades to your network equipment may be necessary
depending on the performance desired from the WaveCAST. For
instance, a higher-end, more powerful router will allow more users
to connect to your audio stream than using a less powerful router.
Depending on your specific use case and current network
infrastructure you may find your experience is less than ideal. For
network optimization please refer to the "WaveCAST Network
Guide" documentation.

Installation Procedures

1. Connect the power supply to the Power Supply connector
located on the back of the WaveCAST. Press in the power
button on the front of the WaveCAST. The power button
should light up. If not, go back and check the power
connections.
2. Choose and configure the audio source.
CAUTION!
This source must be configured in the menu
before plugging the source into the jack. Voltage sent to the jack
based on the source selected in the menu. Selecting the wrong
configuration could send the wrong voltage to the source and
cause damage.
bal
unbal
phantom
Line / Mic In
Analog
Audio
Line Out
– 3
– 6
– 9
– 12
– 15
– 18

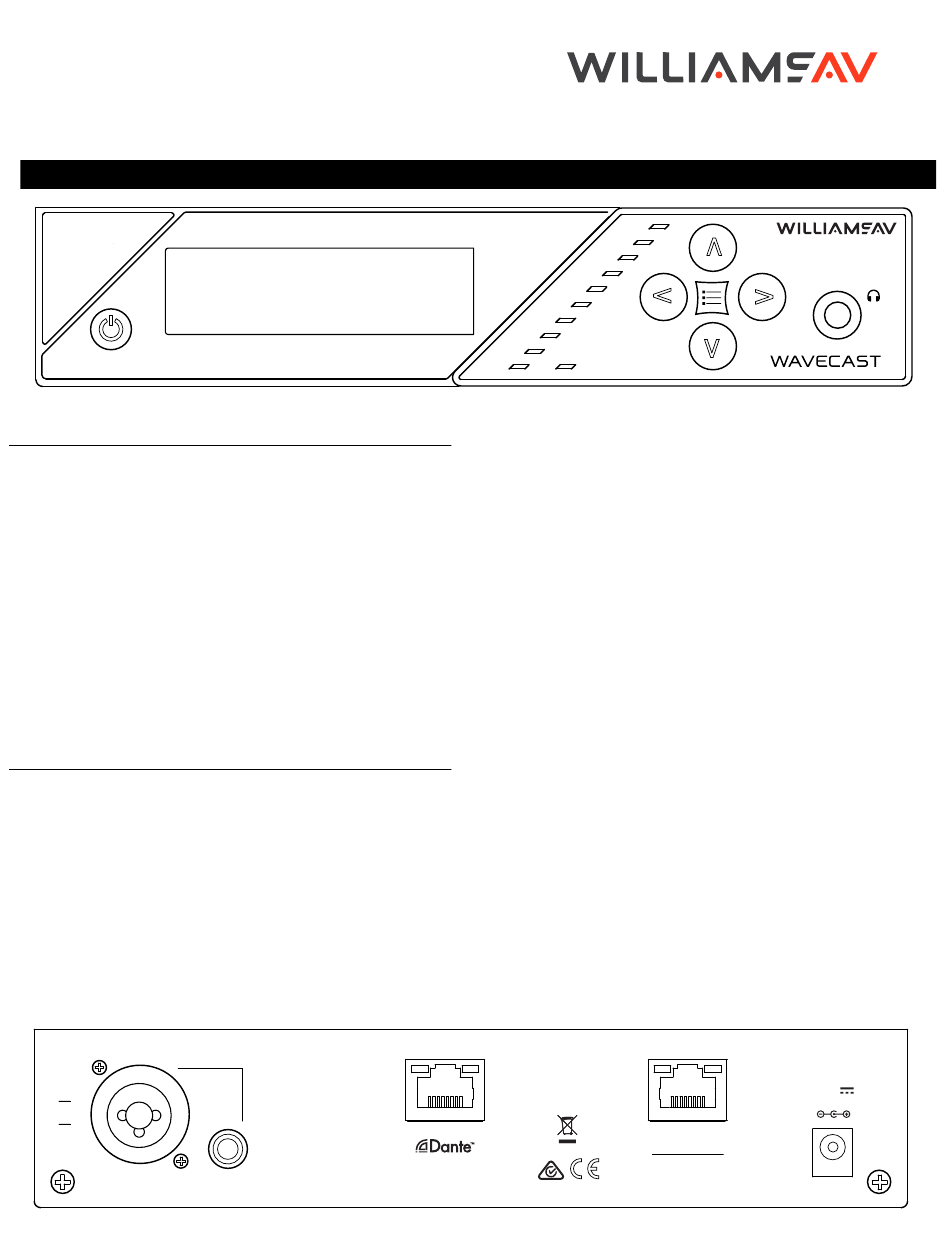

Front Panel Diagram
The audio source must be configured in the menu before
plugging the source into the jack (except Dante Audio - skip
to step 7). Push the center Menu button and push the right arrow
button once to display AUDIO SOURCE on the screen. Push the
right arrow button to access the audio sources. Using the up
arrow or down arrow menu buttons, choose between ANALOG
LINE IN, MIC, PHANTOM MIC +12V, or DANTE. When the desired
audio source is displayed, press the right arrow button to apply
the setting. Press the Menu button to exit the menu.
3. Push the power button to turn the unit off.
4. Connect the audio source to the audio input jack on the rear
of the WaveCAST.
5. Push the power button to turn the unit on.
6. (WaveCAST D only) Connect an Ethernet cable from the
Dante network to the connector labelled Dante on the
transmitter. Note: Dante IP Address and other settings are
configured externally through the Dante Controller software;
there are no settings in the transmitter for Dante, other than
choosing Dante as the input source).
7. If Dante audio is being used, the Dante source must be
connected, must be playing audio, and the Dante Controller
software must be used to route audio from the Dante source
to the WaveCAST.
Made in USA
RoHS
Back Panel Diagram
QUICK START GUIDE
+ 9
+ 6
+ 3
0 dB
Ethernet
Streaming Audio Out
24VDC
0.75A
