DEL UV
-C PRO 200, 350, 500
®
INSTALLATION INSTRUCTIONS & PRODUCT MANUAL
CMPCOMMERCIAL.COM
4-2813-01 Rev.A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DEL UV-C PRO 200 and is the answer not in the manual?

Questions and answers

Summary of Contents for CMP DEL UV-C PRO 200

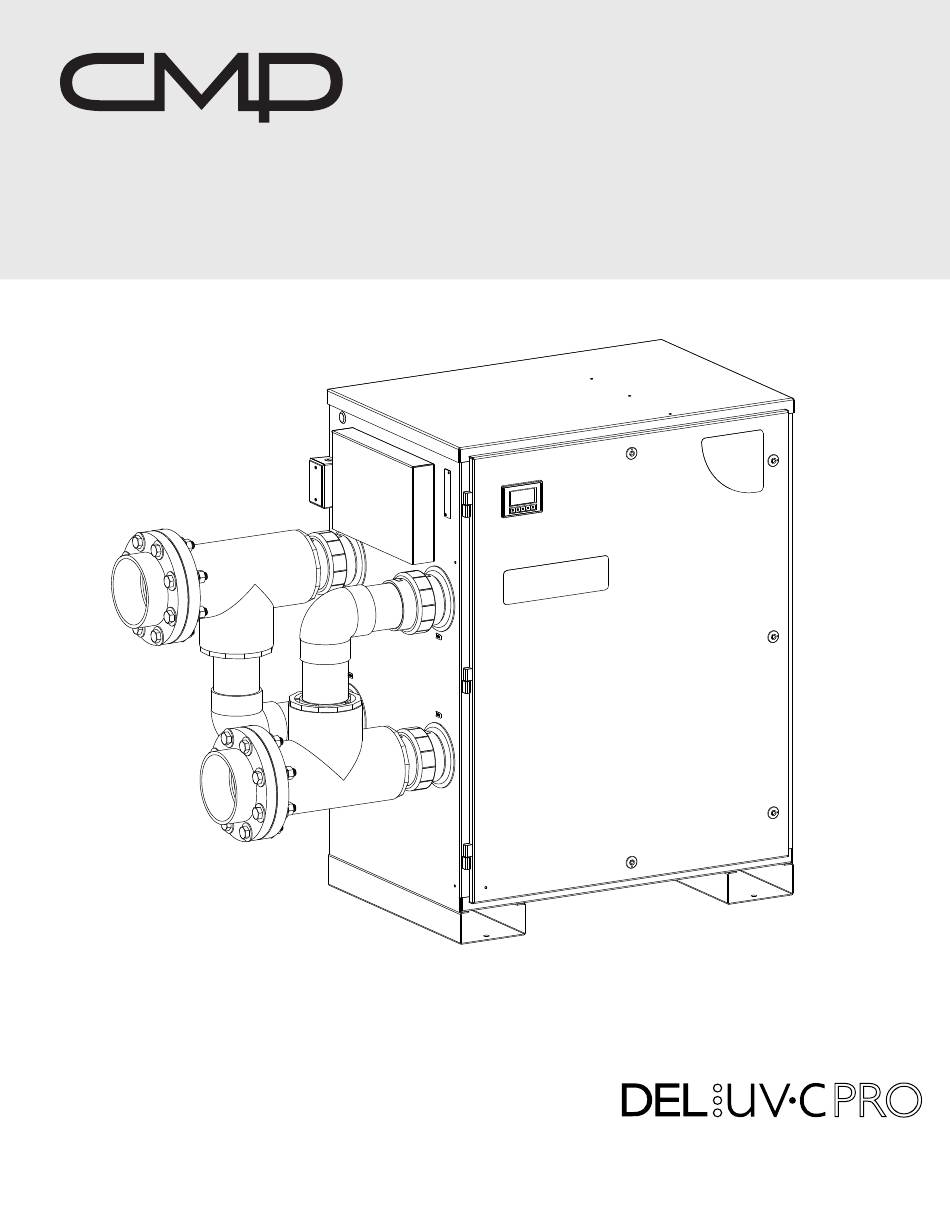

  • Page 1 ® DEL UV -C PRO 200, 350, 500 ® INSTALLATION INSTRUCTIONS & PRODUCT MANUAL CMPCOMMERCIAL.COM 4-2813-01 Rev.A...
  • Page 2 IMPORTANT INFORMATION READ AND FOLLOW ALL INSTRUCTIONS • Read this manual completely before attempting installation. Failure to install in accordance with the installation instructions could void warranty and result in injury or death. • All permanent electrical connections should be made by a qualified electrician. •...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1 General Information 1A. Description .............................1 1B. Specifications ..........................1 2 Installation 2A. Pool Preparation .......................... 2 2B. Location ............................2 2C. Mounting ............................2 2D. Electrical ............................3 2E. Plumbing ............................3 3 Operation 3A. Initial System Start-Up ....................... 4 3B.
  • Page 4: General Information

    1. GENERAL INFORMATION 1A. Description DEL UV-C Pro products use UV-C light to provide superior disinfection of pool and spa water. The system utilizes low pressure (254 nm) lamps in a modular design to provide a completely integrated system. Controls and UV-C reactors are all in one cabinet.
  • Page 5: Installation

    2. INSTALLATION Bonding Lugs Water Outlet Water Inlet Figure 1: UV-C Generator Overview 2A. Pool Preparation To achieve optimal performance from the system, the pool must be as clean as possible to start with. Backwash or clean filters one day before starting the generator. Superchlorinate pool water using a chlorine based shock treatment so the water has a sustained 1-3 ppm free chlorine level.
  • Page 6: Electrical

    2. INSTALLATION 2D. Electrical Refer to the IMPORTANT SAFETY INSTRUCTIONS at the beginning of this manual for important wiring information. 2D-1. Main Power • Connect the UV-C Pro so that it operates simultaneously with the pool pump. • An electrical junction box and wires are provided on the left wall of the enclosure for a 1/2” conduit connection. •...
  • Page 7: Operation

    3. OPERATION 3A. Initial System Start-Up Upon completing all system connections and cleaning the pool as outlined in SECTION 2, you are ready to start the UV-C Pro. Ensure that power is removed from the UV-C Pro and turn on the pool circulation system. Confirm that all fittings are free of leaks both outside and inside the unit.
  • Page 8 3. OPERATION Screen Select Menu UV Service Screen 2. Screen Select Menu: This menu is accessed through the function button on any screen and allows navigating to the other HMI screens. 3. UV Service Screen: Contains countdown timers that track the hours remaining until service is due on listed UV components.
  • Page 9: System Shut-Down

    3. OPERATION Fault Counters Screen 5. Fault Counters Screen: Contains a list of possible faults for the system (model dependent) and how many faults have occurred. The fault count can be used during troubleshooting to identify common faults in the system. All fault counts can be reset through the function key.
  • Page 10: Maintenance & Service

    4. MAINTENANCE & SERVICE 4A.System Electromechanical Overview Disconnect power before performing service. Refer to the IMPORTANT SAFETY INSTRUCTIONS displayed in CAUTION the front of this manual. Refer to Figures 3, 4 and 5. NOTE: To replace a UV lamp, follow only SECTIONS 4B-1 and 4B-4. There are two lamps in each UV reactor of the UV-C Pro powered by an energy efficient electronic ballast.
  • Page 11 4. MAINTENANCE & SERVICE Ballast Outlet Flange UV Reactor Inlet Flange Flow Switch Location (not shown) Figure 3: UV-C Pro Electro-Mechanical Overview...
  • Page 12 4. MAINTENANCE & SERVICE UV Lamp Lamp Retainer Quartz Tube Lamp Retainer Sealing O-ring Screws Figure 4: UV Lamp and Quartz Tube Removal Properly Seated Quartz Tube Improperly Seated Quartz Tube Figure 5: UV Quartz Tube lnstallation NOTE: DAMAGES CAUSED BY BROKEN QUARTZ TUBES ARE NOT COVERED UNDER THE LIMITED WARRANTY.
  • Page 13: Plc Memory Battery Backup Replacement

    4. MAINTENANCE & SERVICE 4B-3 Quartz Tube Installation Place a sealing O-ring approximately 1/2in (12.7mm) from the end of the quartz tube. Insert quartz tube into the UV reactor until it is fully seated. NOTE: If the end of the quartz tube is protruding from the UV reactor, the alignment is off. Remove and re-insert the quartz tube to seat it properly as shown in Figure 5.
  • Page 14: Troubleshooting & Resources

    Knowledge of electrical applications is required for troubleshooting. Contact a certified electrician if you are unsure of your ability to service the equipment. Improper servicing will void generator warranty. If any condition persists contact CMP Technical Support (see Section 5B).
  • Page 15: Contact Information

    5. TROUBLESHOOTING & RESOURCES 5B. Contact Information: For technical assistance: • Call: 1-800-733-9060 • Email: support@c-m-p.com • Visit: www.cmpcommercial.com Be prepared with the following information: • Name • Address • Model # • Date Purchased 5C. Ordering Information: To locate a dealer nearest you call 1-800-733-9060 or visit www.cmpcommercial.com. 5D.
  • Page 16: Appendix A: Pressure Drop Curve

    APPENDIX A UV-C Pro Pressure Drop Characterization NOTE: Tested on simulated recirculation system using a variable speed pump. No back pressure added. Actual results will vary depending on pump and plumbing variables.
  • Page 17: Appendix B: In-Place Quartz Tube Cleaning

    APPENDIX B In-Place Quartz Tube Cleaning Outlet Flange Inlet Flange The UV-C Pro quartz tubes may be cleaned without removing them from the vessel. 1. Ensure that the UV-C Pro is isolated from the rest of the pool system with valves at the inlet and outlet.
  • Page 18 NOTES SAVE THESE INSTRUCTIONS Record Information on this System Below & Keep for Your Records Installer _______________________________________________________________ System Purchased From ______________________________________________ Installation Date _____________________________ Serial Number _______________________________...
