US Robotics USR5699C Installation Manual

56k pci faxmodem for windows
Hide thumbs Also See for USR5699C:
Table of Contents

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com
56K PCI Faxmodem for Windows
Installation Guide
Windows XP, 2000, Me, 98, and 95
Operating Systems
part number R24.0487.00
56K PCI Faxmodem for Windows
Guide d'installation
Systèmes d'exploitation
Windows XP, 2000, Me, 98 et 95
numéro de pièce : R24.0487.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USR5699C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for US Robotics USR5699C

Summary of Contents for US Robotics USR5699C

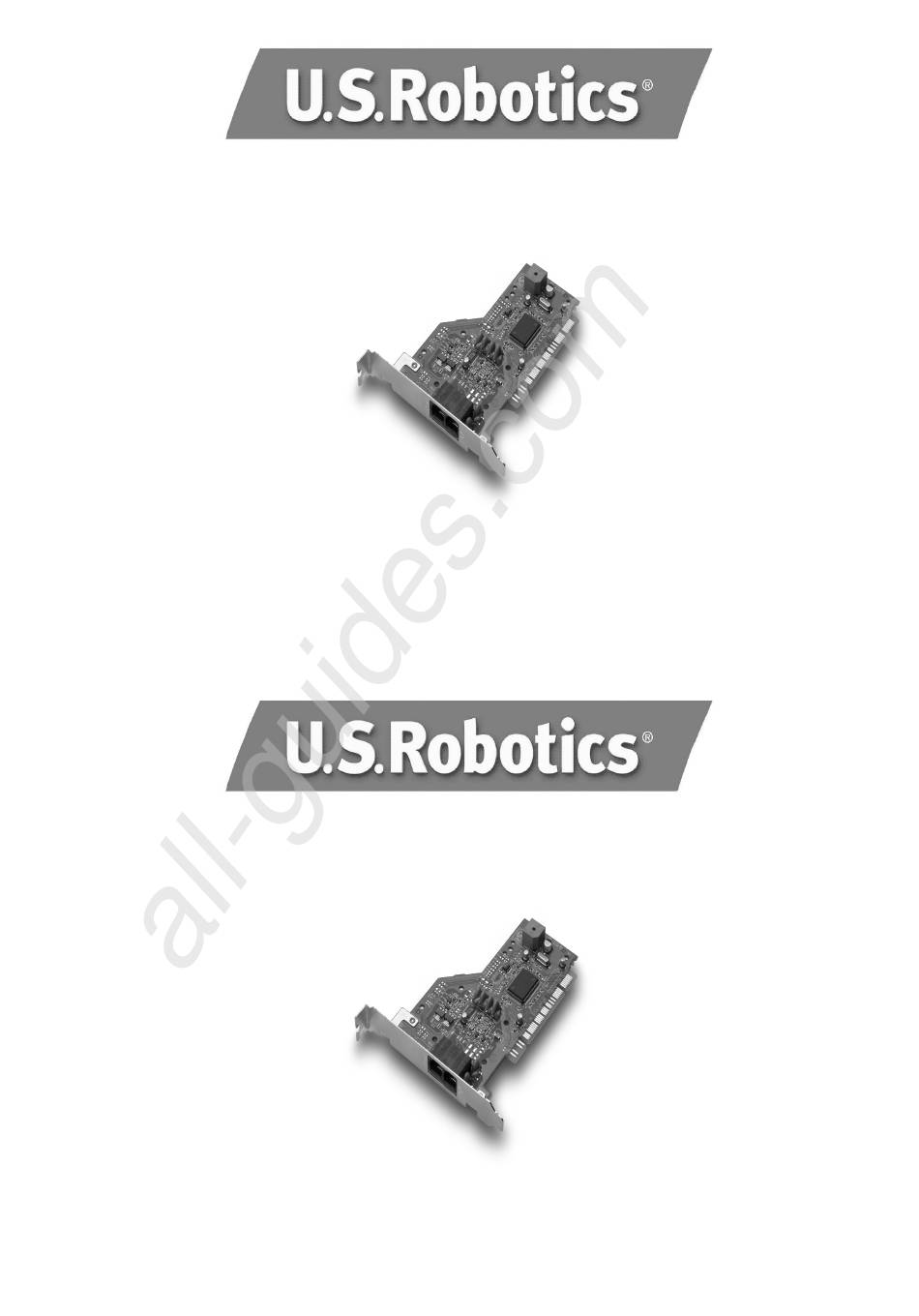

  • Page 1 All manuals and user guides at all-guides.com 56K PCI Faxmodem for Windows Installation Guide Windows XP, 2000, Me, 98, and 95 Operating Systems part number R24.0487.00 56K PCI Faxmodem for Windows Guide d’installation Systèmes d'exploitation Windows XP, 2000, Me, 98 et 95 numéro de pièce : R24.0487.00...

  • Page 2: Before You Begin

    All manuals and user guides at all-guides.com Step 1 Before You Begin Insert the modem into an empty PCI expansion slot. Before you begin, we recommend you uninstall any other modems you have in your system and unplug all telephone cords connected to these modems. Turn off and unplug your computer and all peripherals.
  • Page 3 All manuals and user guides at all-guides.com Step 2 will choose the driver to install and click Next. Select Install the modem drivers. Have Disk. Click Browse and select your CD-ROM drive. NOTE: If at any time during the installation you are Double-click Win2K_XP and click Open, click OK, and prompted to select the location of your installation then click Next.
  • Page 4 All manuals and user guides at all-guides.com Windows 95 Users NOTE: If your modem is not listed and/or you do not Turn on your computer. Insert the Installation CD- see a series of commands and responses, make sure ROM into your drive before Windows opens. When that your internal modem is physically installed the New Hardware Found or Update Device Driver correctly in your computer.
  • Page 5 All manuals and user guides at all-guides.com Step 4 If you have Windows Me/98/95 Click Windows Start, Settings, , , , , and then Control Install software and register Panel. Double-click the Modems icon. In the Modems Properties screen, you should see a description for your modem.

  • Page 6: Troubleshooting

    All manuals and user guides at all-guides.com Troubleshooting they are assigned. Locate your modem and the IRQ which it is assigned. If this IRQ is being used by any other devices, it may be causing the modem to work improperly. Either your modem or the device which shares an IRQ with your modem Having trouble with your modem? will have to be reassigned to another IRQ in order to resolve...

  • Page 7: Voice Mail Users

    All manuals and user guides at all-guides.com users will not be able to take full advantage of V.92 or V.90 technology at this time. In order to achieve a V.92 or V.90 Problem: My modem won’t dial out or doesn’t answer connection: incoming calls.

  • Page 8: Support Resources

    All manuals and user guides at all-guides.com Manufacturer’s Declaration of Support Resources Conformity If you have not fixed your problem after trying the suggestions in the “Troubleshooting” section, you can receive U.S. Robotics Corporation 935 National Parkway additional help via one of these Schaumburg, IL 60173-5157 convenient resources: U.S.A.

  • Page 9: General Terms

    All manuals and user guides at all-guides.com U.S. Robotics Corporation Limited The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device, including fax machines, to send any Warranty message unless such message clearly contains in the margin at the top or bottom of each transmitted page or on the first page of the transmission, the date and time it is sent, an identification of the business or other entity, or other individual GENERAL TERMS:...

  • Page 10: Customer Obligations

    All manuals and user guides at all-guides.com For information on how to contact U.S. ROBOTICS U.S. ROBOTICS makes no warranty or representation that Technical Support or an authorised U.S. ROBOTICS Service this product will meet CUSTOMER requirements or work in Centre, please see the U.S ROBOTICS corporate Web site at: combination with any hardware or software products provided by www.usr.com...
  • Page 11 All manuals and user guides at all-guides.com handling; damage caused by undue physical, temperature, or electrical Authorised CUSTOMER returns will be unpacked, visually stress; counterfeit products; damage or loss of data caused by a inspected, and matched to the Product Model Number and Product computer virus, worm, Trojan horse, or memory content corruption;...
  • Page 12 All manuals and user guides at all-guides.com the TWO (2) YEAR duration of this written warranty. This warranty gives CUSTOMER specific legal rights, which may vary depending on local law. GOVERNING LAW: This Limited Warranty shall be governed by the laws of the State of Illinois, U.S.A. excluding its conflicts of laws principles and excluding the United Nations Convention on Contracts for the International Sale of Goods.
