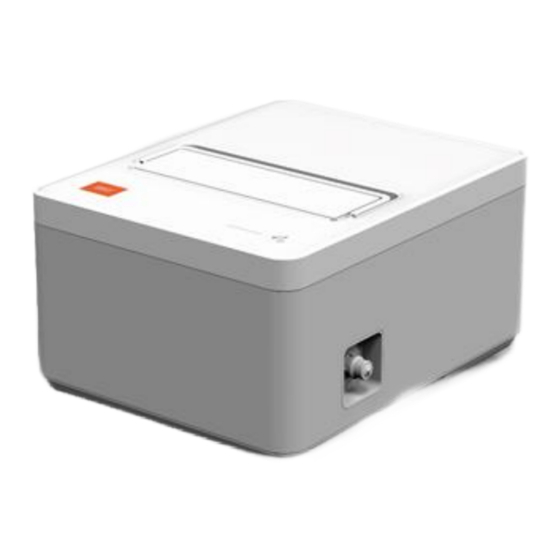

- Page 1 ® CASPER Portable Air Supply User Manual 01-0931 01-0937 CC-950006-TM-4...
- Page 2 Symbol Key Manufacturer Reference number Serial number Date of manufacture Consult instructions for use CE mark DO NOT dispose of in household waste Use-by date ©Owlstone Medical Ltd. 2019 95-0006-004 08 Oct 2019 Page 2 of 25...
- Page 3 Storage Temperature Limit Humidity Limit Fragile, handle with care Do not use if package is damaged ©Owlstone Medical Ltd. 2019 95-0006-004 08 Oct 2019 Page 3 of 25...
-
Page 4: Table Of Contents
Contents General Information Introduction to the CASPER Portable Air Supply Setup of the CASPER Portable Air Supply Operating Instructions Indications Troubleshooting Servicing Cleaning ©Owlstone Medical Ltd. 2019 95-0006-004 08 Oct 2019 Page 4 of 25... -
Page 5: General Information
The CASPER Portable Air Supply is not a medical device and should not be used to deliver concentrated oxygen, or to support the breathing of individuals unable to breath independently, or for any other life supporting application. ©Owlstone Medical Ltd. 2019 95-0006-004 08 Oct 2019 Page 5 of 25... - Page 6 The test subject must be monitored at all times when using the CASPER Portable Air Supply The CASPER Portable Air Supply should not be used to deliver concentrated oxygen ©Owlstone Medical Ltd. 2019 95-0006-004 08 Oct 2019 Page 6 of 25...
- Page 7 2km in subjects who have not acclimatised The CASPER Portable Air Supply should not be used for longer than 1 hour by a single test subject in a 24 hour period ©Owlstone Medical Ltd. 2019 95-0006-004 08 Oct 2019 Page 7 of 25...
- Page 8 Warranty Statement Owlstone Medical is proud of our quality, reliability and our after- sales service. We continuously strive to improve our service to our customers. Warranty provisions necessarily vary to comply with differences in national and regional legislation. Specific details can be found in the delivery documentation or from your dealer or representative.
- Page 9 Please consult Owlstone Medical Ltd for details of our recycling and disposal program for this product. For users outside the European Union consult local authorities for correct disposal or contact Owlstone Medical Ltd.
-
Page 10: Introduction To The Casper Portable Air Supply
L = 415 mm W = 383 mm H = 230 mm Size of Air Filter L = 272 mm W = 85 mm H = 114 mm ©Owlstone Medical Ltd. 2019 95-0006-004 08 Oct 2019 Page 10 of 25... - Page 11 CASPER Unit (230V Variant) 01-0937 CASPER Unit (115V variant) 01-0862 Air Filter 01-0924 Air Supply Tubing 50-1869 Mains Power Cord, UK 50-1870 Mains Power Cord, EU 50-1871 Mains Power Cord, US ©Owlstone Medical Ltd. 2019 95-0006-004 08 Oct 2019 Page 11 of 25...
-
Page 12: Setup Of The Casper Portable Air Supply
Note: Please retain all packaging during the warranty period. The CASPER Portable Air Supply should not be used if it is visibly damaged. ©Owlstone Medical Ltd. 2019 95-0006-004 08 Oct 2019 Page 12 of 25... - Page 13 Note: The ‘use by’ date on the Air Filter is the date by which the Air Filter should have started to be used. The Air Filter and Tubing should not be used if packaging is damaged. ©Owlstone Medical Ltd. 2019 95-0006-004 08 Oct 2019 Page 13 of 25...
- Page 14 5. Remove the Air Filter from the plastic case and place in the CASPER unit. Note: The Air Filter should be stored in the CASPER unit until end of life. ©Owlstone Medical Ltd. 2019 95-0006-004 08 Oct 2019 Page 14 of 25...
- Page 15 CASPER unit and plug in to mains power. Note: Avoid positioning the system in a corner or close to walls which may restrict airflow away from the back of the system. ©Owlstone Medical Ltd. 2019 95-0006-004 08 Oct 2019...
- Page 16 8. Following assembly, the complete system must be run continuously for 1 hour to allow it to settle and for the air quality to stabilise. ©Owlstone Medical Ltd. 2019 95-0006-004 08 Oct 2019 Page 16 of 25...
-
Page 17: Operating Instructions
4 Operating Instructions Figure 1: CASPER User Interface 1. Attach the Air Supply Tubing to the ReCIVA Breath Sampler ©Owlstone Medical Ltd. 2019 95-0006-004 08 Oct 2019 Page 17 of 25... - Page 18 LED does not illuminate. The remaining lifetime of the scrubber will be shown by the filter status indicators. On first use of the scrubber, five green LEDs should be visible. ©Owlstone Medical Ltd. 2019 95-0006-004 08 Oct 2019 Page 18 of 25...
- Page 19 Note: When the CASPER Portable Air Supply is not in use, seal the air supply pipe using the attached bung. The CASPER Portable Air Supply should not be used if the LEDs turn off during operation ©Owlstone Medical Ltd. 2019 95-0006-004 08 Oct 2019 Page 19 of 25...
-
Page 20: Indications
Remove air supply from test subject, an audible alarm will be present. Once the air supply has been removed from the test subject, press the on/off switch Flashing red to turn off the audible alarm. ©Owlstone Medical Ltd. 2019 95-0006-004 08 Oct 2019 Page 20 of 25... - Page 21 Air Filter. Wear clean nitrile gloves when changing the Air Filter. The Air Supply Tubing should also be replaced at the end of filter life. ©Owlstone Medical Ltd. 2019 95-0006-004 08 Oct 2019 Page 21 of 25...
-
Page 22: Troubleshooting
Audible Return the air filter to the Alarm unit and reset system by hard power off and on using IEC power inlet rocker switch. ©Owlstone Medical Ltd. 2019 95-0006-004 08 Oct 2019 Page 22 of 25... - Page 23 Remove air supply from pump has been activated. test subject if present. Turn Pump will have stopped off flow using on/off switch. Turn off power to system. Request service. ©Owlstone Medical Ltd. 2019 95-0006-004 08 Oct 2019 Page 23 of 25...
- Page 24 Turn system is providing air off flow using on/off switch. Turn off power to system. Request service. Flashing red & Audible Alarm ©Owlstone Medical Ltd. 2019 95-0006-004 08 Oct 2019 Page 24 of 25...
-
Page 25: Servicing
All servicing must be carried out by Owlstone Medical Ltd. Do not disassemble any of the individual system components. If you encounter any problems with the equipment or this procedure, please contact Owlstone Medical Ltd immediately using the contact details below. Support forum: https://support.owlstonenanotech.com/...
