Sheboygan, WI
800-558-8700

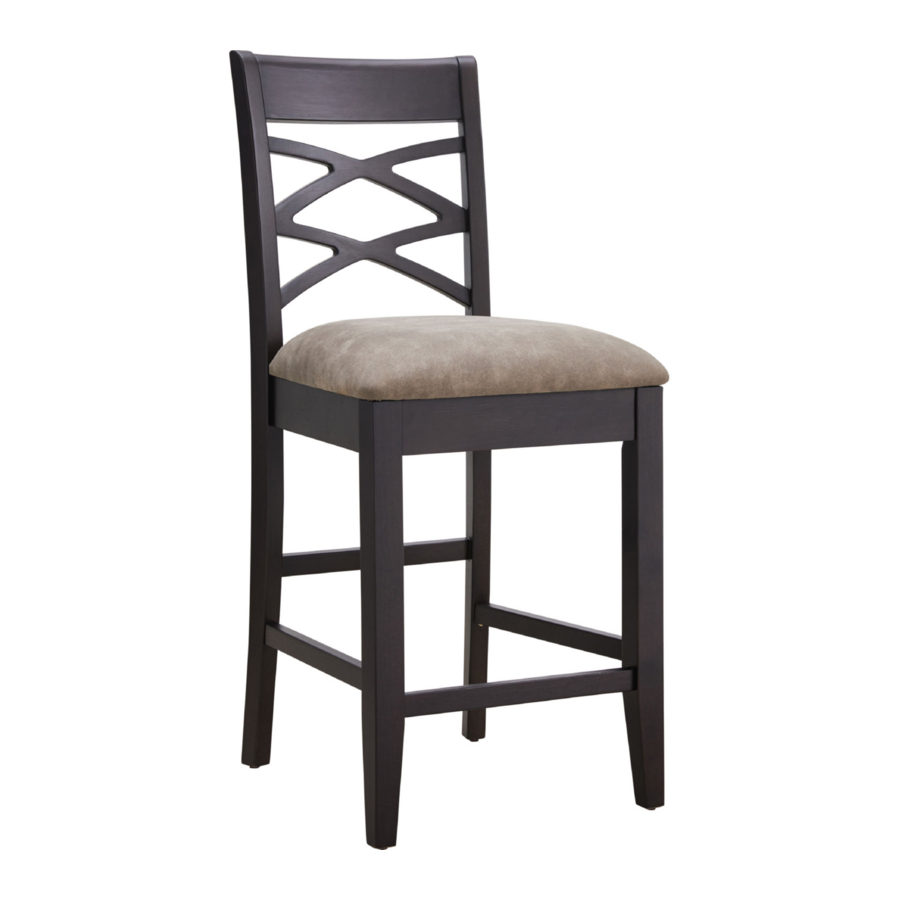

Double Cross Back 24 Counter Height Stool
A packet with complete set of hardware can be found by pulling the red ribbon that's
easily visible upon opening the box.
Thank you for purchasing Leick Furniture products.
Contact customer service for comments or concerns.
cs@todaysdesignhouse.com
Assembly Instructions, #10084
LIST OF PARTS
A
Chair Back
B
Seat Pad
C
Side Stretchers (L&R)
D
Front Stretcher
E
Front Legs
F
Bolt 1/4"*2"
G
Bolts 1/4"*2-1/2"
H
Bolts 1/4"*3"
I
Lock Washers
J
Flat Washers
K
Screws 8*1-3/4"
L
Allen Wrench
---1---
todaysdesignhouse.com
1
1
2
1
2
1
4
4
9
9
6
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Leick Home 10084
Summary of Contents for Leick Home 10084
- Page 1 Sheboygan, WI 800-558-8700 cs@todaysdesignhouse.com todaysdesignhouse.com Assembly Instructions, #10084 Double Cross Back 24 Counter Height Stool A packet with complete set of hardware can be found by pulling the red ribbon that's easily visible upon opening the box. LIST OF PARTS...
- Page 2 Step 1 Step 2 Fasten the seat pad onto chair back with one shortest Place the chair assembly upside down on a table. bolt (F & I & J) in the center, and four long bolts (H & I Insert two side stretchers into back leg holes. Make &...
