1
Page
Clixx'Pixx DrillPunch Pro2 4-12" 56-1012
Operating instructions

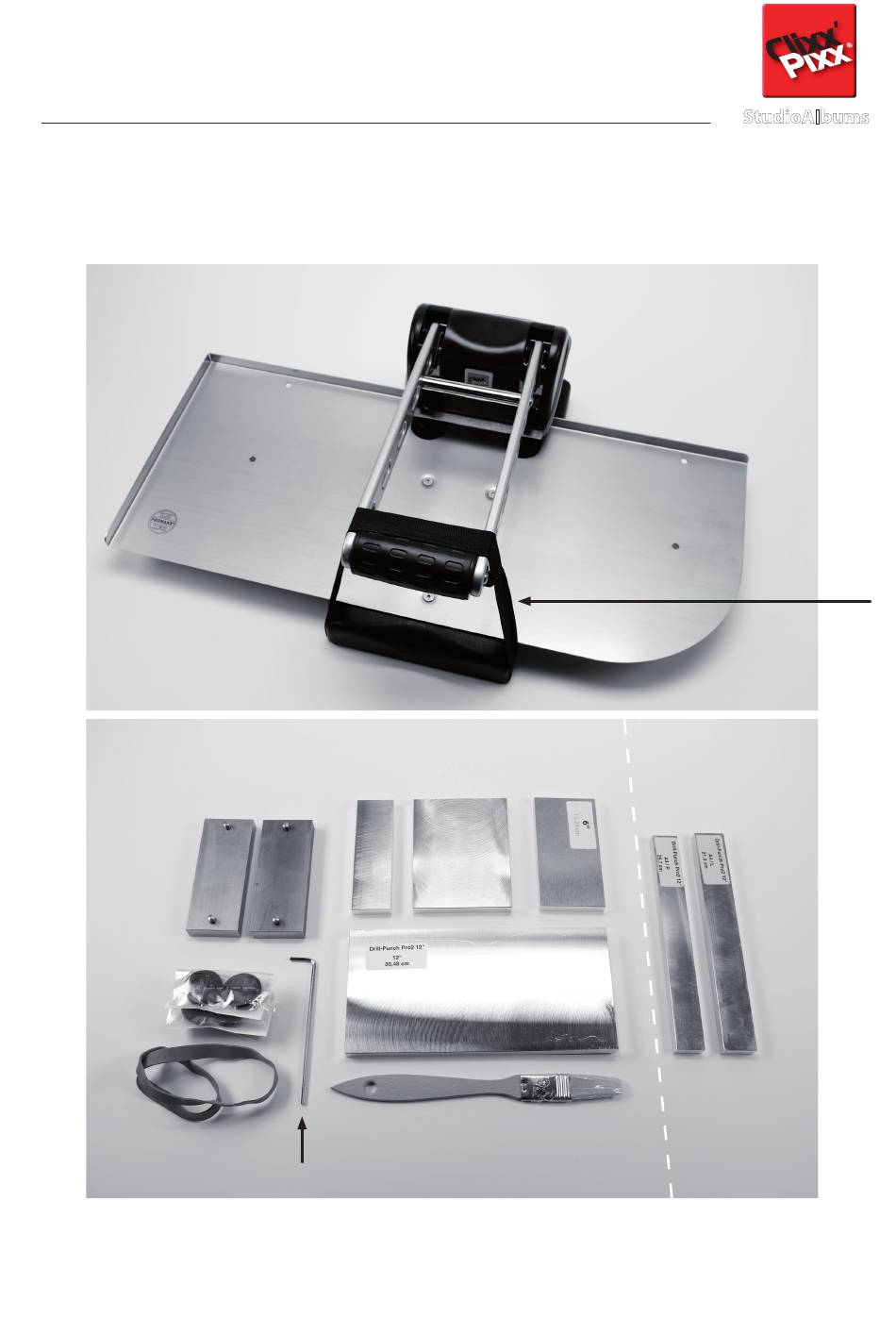

1. Unpack machine system and check
Find these items
Machine
Accessories
Alignment Blocks:
2 Limiter Blocks
6 Counter
Pressure
Disks
Tension
Rubber Band
-Spare/Extra-
Hexagon Key
Check that your Drill Punch pack contains all neccessary parts shown above.
Warning: This machine contains sharp cutting dies. Please handle with caution and keep your
fingers away from the cutting area.
4"
5"
Alignment Block 12"
Cleaning Brush
EN
06.2014
6"
2 Alignment Blocks A4
Portrait and Landscape
StudioAlbums
Transport locking belt
Please remove
OPTIONAL !
Art.-Nr. 56-1903
Advertisement
Table of Contents
Related Manuals for ProMaxX Clixx'Pixx DrillPunch Pro2
Summary of Contents for ProMaxX Clixx'Pixx DrillPunch Pro2
- Page 1 Page Clixx’Pixx DrillPunch Pro2 4-12” 56-1012 Operating instructions 06.2014 StudioAlbums 1. Unpack machine system and check Find these items Machine Transport locking belt Please remove Accessories Alignment Blocks: 4” 5” 6” 2 Alignment Blocks A4 Portrait and Landscape OPTIONAL ! Art.-Nr.
- Page 2 Clixx’Pixx DrillPunch Pro2 4-12” 56-1012 Page 2. Make system ready StudioAlbums Tension Rubber Install PunchAlignmentBar and place LimiterBlocks Band Check correct installation of Punch Alingment Bar and TensionRubber- Band 45° New punches, like this one, are equipped with a PunchAlignmentBar and a TensionRubberBand.
- Page 3 Clixx’Pixx DrillPunch Pro2 4-12” 56-1012 Page 3. Drill binding holes StudioAlbums See different procedures for different book heights 4” Drill binding holes (101,6mm) print height: 4” Images are punched only one time. ►Arrange all prints of a book in a clean square pile. ►Use the 4”...
- Page 4 Clixx’Pixx DrillPunch Pro2 4-12” 56-1012 Page StudioAlbums 8” Drill binding holes (203mm) print height: 8” Images are punched two times. ►Arrange all prints of a book in a clean square pile. ►Use the left Limiter Block as shown and punch the pile once .
- Page 5 Clixx’Pixx DrillPunch Pro2 4-12” 56-1012 Page Drill binding holes Portrait and Landscape: StudioAlbums A4 Portrait has 4 binding holes, A4 Landscape has 3 binding holes. Insert A4 Portrait alignment block as shown as Turn the alignment block as shown and repeat a spacer and arrange all prints of the book in a punching.
- Page 6 This is legal information to potential licensees and business partners and not intended to be an advertising message: PROMAXX® reserves all rights to the design, function and materials of these photo systems to the extent international patent laws allow. German utility models have been applied in DE covering the PhotoBook covers, the Clixx‘Pixx Ring System and other proprietary features to allow for worldwide patent protection of these proprietary technologies.
