Clixx'Pixx StudioAlbums / PhotoBooks
Assembly & fault recovery

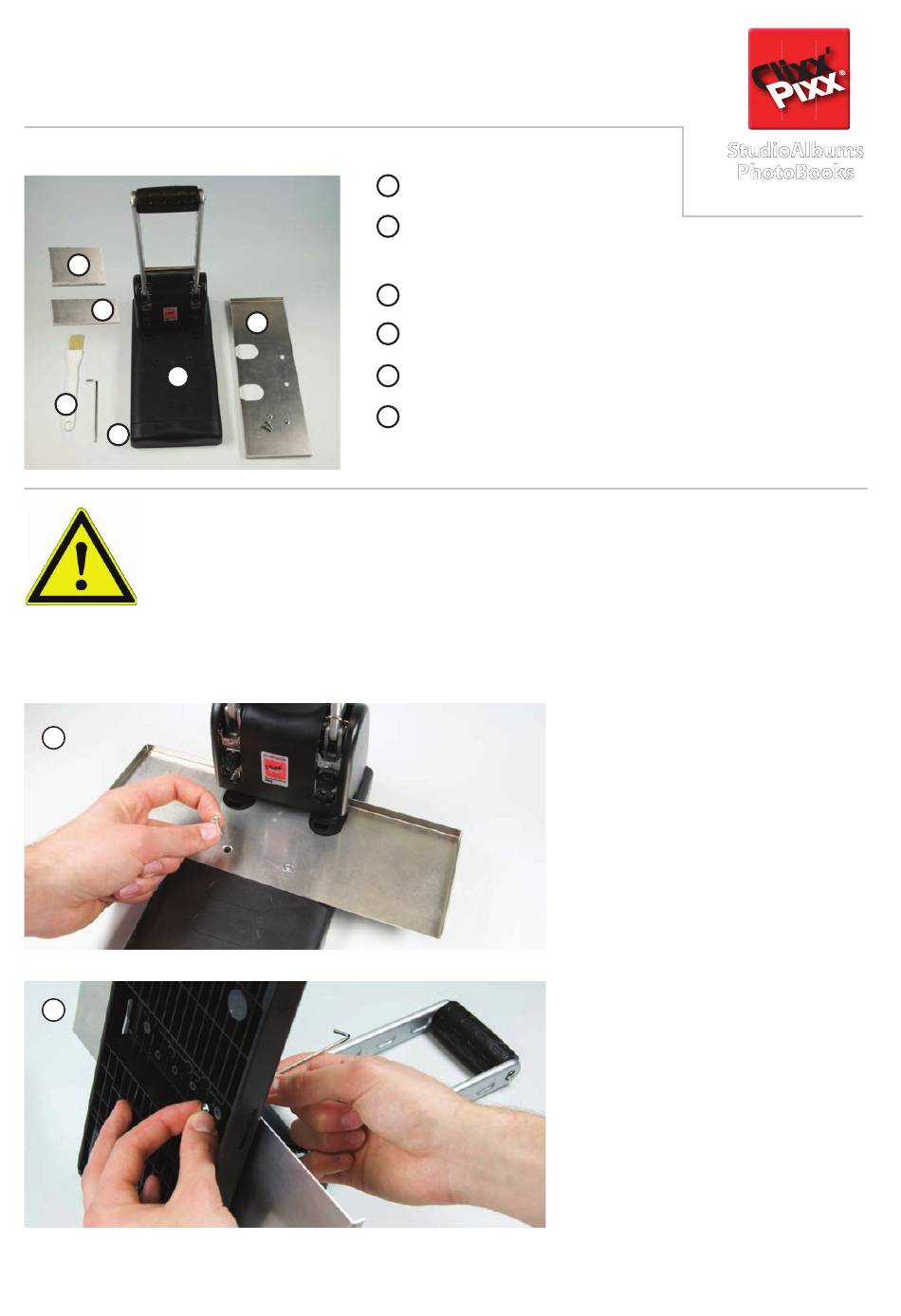

Package content
Packungsinhalt
C
D
A
F
E
Check if your Drill Punch machine contains all neccessary parts shown above.
Warning: This Machine contains sharp cutting dies. Please handle with caution
and keep your fi ngers away from the cutting area.
Prüfen Sie, ob Ihr Drill Punch Gerät alle notwendigen Teile (s.oben) enthält.
Warnung: dieses Gerät enthält scharfe Schneidemesser. Bitte gehen Sie damit
vorsichtig um und halten Sie Ihre Finger vom Stanzbereich fern.
DrillPunch PRO2 assembly instructions
DrillPunch PRO2 Montageanleitung
1
2
last update: 02.09.2008 13:16
StudioAlbums Instructions
Bedienungsanleitung
Montage & Fehlerbeseitigung
1 DrillPunch PRO2 Unit
A
1 DrillPunch Gerät
Alignment plate for 8" prints with
B
2 hexagon screws and nuts
Anschlagplatte für 8" Fotos mit
2 Sechskantschrauben und Muttern
1 Big alignment Block for 5" pictures
C
1 Großer Anschlagblock für 5" Fotos
B
1 Small alignment Block for 4" pictures
D
1 Kleiner Anschlagblock für 4" Fotos
1 Screw wrench for hexagon socket
E
1 Innensechskant Schraubenschlüssel
1 Cleaning brush
F
1 Reinigungspinsel
StudioAlbums
PhotoBooks
Mounting of alignment plate (B)
Place the alignment plate onto the machine as
shown. Insert the two hexagon screws into the
corresponding holes.
Montieren der Anschlagplatte (B)
Legen Sie die Anschlagplatte wie gezeigt auf das
Gerät und setzen Sie die Senkschrauben in die beiden
Löcher.
Attach both screw nuts from the bottom side and
use the screw wrench (E) to fasten the alignment
plate.
Befestigen Sie die Anschlagplatte mit den beiden
Muttern von unten. Ziehen Sie die Schrauben mit dem
Schraubenschlüssel (E) fest.
page 1 of 5
Advertisement
Table of Contents
Related Manuals for ProMaxX CLIXX'PIXX DrillPunch PRO2
Summary of Contents for ProMaxX CLIXX'PIXX DrillPunch PRO2
- Page 1 Clixx’Pixx StudioAlbums / PhotoBooks Operating instructions Bedienungsanleitung Assembly & fault recovery Montage & Fehlerbeseitigung StudioAlbums Package content Packungsinhalt PhotoBooks 1 DrillPunch PRO2 Unit 1 DrillPunch Gerät Alignment plate for 8” prints with 2 hexagon screws and nuts Anschlagplatte für 8” Fotos mit 2 Sechskantschrauben und Muttern 1 Big alignment Block for 5”...
- Page 2 Operating Instructions Bedienungsanleitung Punch your pictures Decide which size of pictures you want to punch. Align the stack of pictures to border in the back and as shown 8” on the following image. 8x8” The Drill Punch is ready for 4”, 5” and 8” picture 8x10”...
- Page 3 PhotoAlbum assembly instructions PhotoAlbum Montageanleitung The album cover comes with chrome rings already premounted. Proceed as following: Turn the album cover 180° as shown and place it on a flat surface. The open side of the ring must be upwards. Hint: Fix the cover by using a paperweight or similar.
- Page 4 Machine care Wartung Counter pressure disk Replace the counter pressure disk, if there is no space for further if the last pictures are not cut punchings left (refer to picture). properly, the counter pressure disk must be rotated. Pull it Hint: To remove the counter towards you, rotate it by around pressure disk, push it towards you...
- Page 5 All statements, technical Information and recommendations about PROMAXX® products are based upon tests believed to be reliable but do not constitute a guarantee or warranty. In no event shall PROMAXX® be responsible for claims beyond the replacement value of www.promaxx.de www.clixxpixx.com...
