Figure 14

Command Module

Figure 15
Figure 16
Figure 17

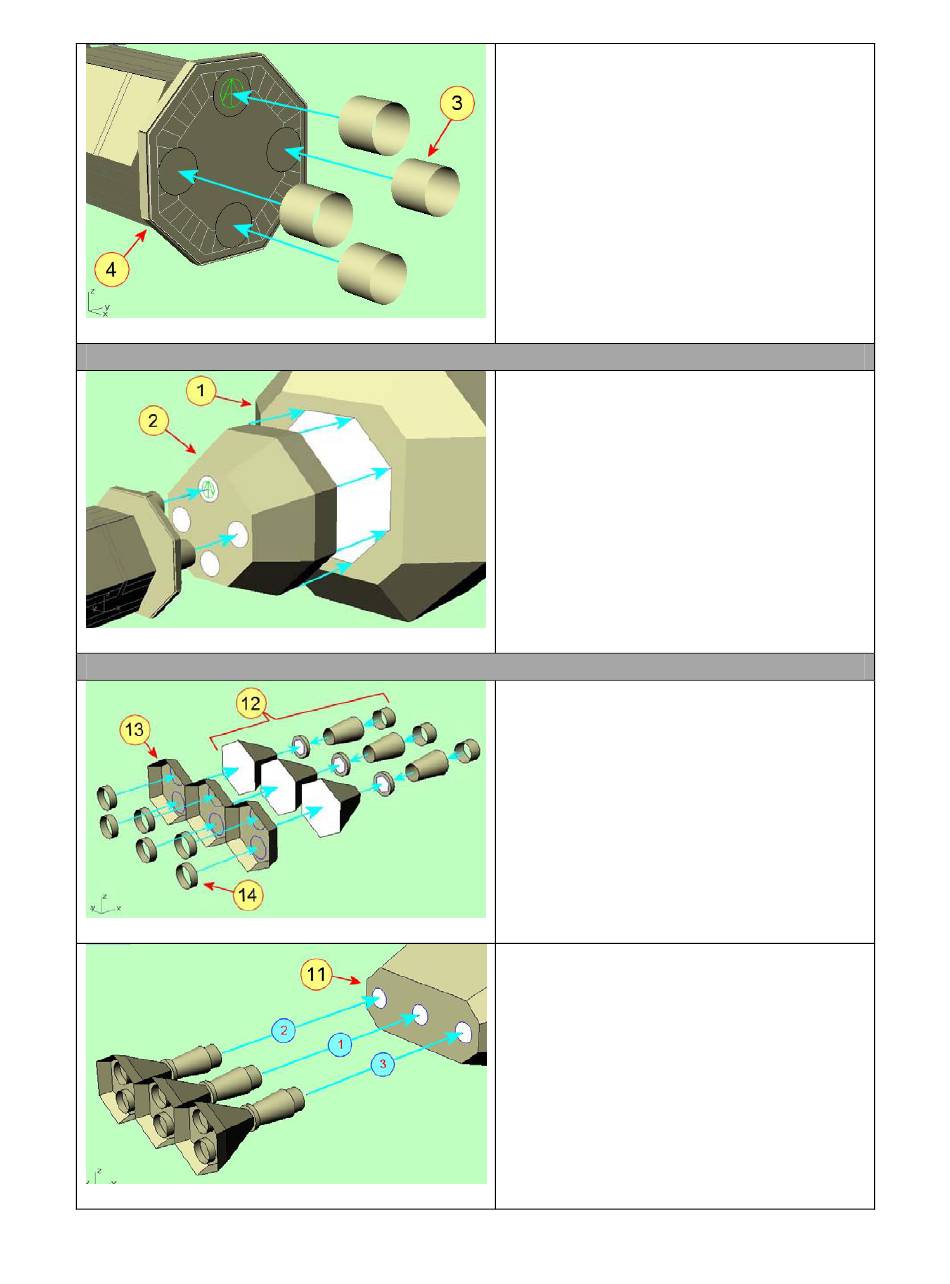

Form the 4 emergency engine tubes,
part 3, into cylinders. Attach to part 4 as
shown.
Score, cutout, fold and assemble parts 1
and 2. Attach 2 to 1, carefully noting
green alignment marks to complete the
Command Module.
Apply a bead of glue around the inside
of each of the emergency engine
cylinders (3) then attach to piece 2 by
holding the assembly vertical until the
glue dries.

Engines

Assemble the engines as shown.
Optionally substitute 1mm card for 12e.
Form part 13 first attaching the glue
tabs around the outside, then fold the
large flaps over the outside covering the
glue tabs. Form parts 14 into rings with
black on the inside.
Attach the center engine to the Reactor
Module (11). After glue is completely
cured attach the outer two engines.
