The Motion Detection feature can also have its own schedule, so it is active only when required. • Syslog Support. If you have a Syslog Server, the iCamera2 can send its log data to your Syslog Server. • Audio Support.
Page 5
Internet Features • User-definable HTTP/HTTPS port number . This allows Internet Gateways to use "port mapping" so the iCamera2 and a Web Server can share the same Internet IP address. • NTP (Network-Time-Protocol) Support. NTP allows the iCamera2 to calibrate its internal clock from an Internet Time-Server.

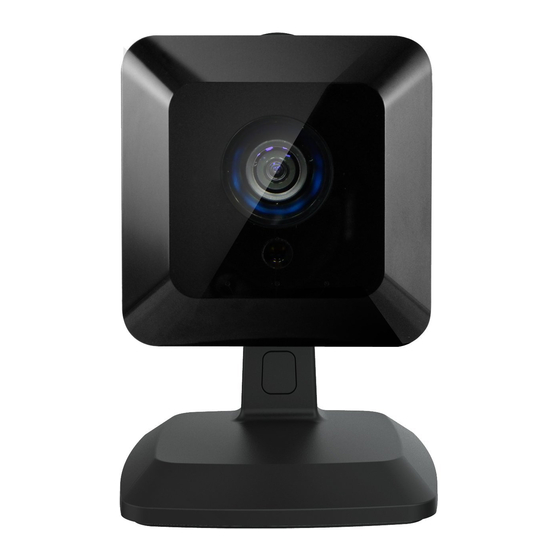

All manuals and user guides at all-guides.com Physical Details - iCamera2 Front - iCamera2 Figure 1: Front Panel 1. Light Sensor This is hardware sensor to detect LUX. 2. Lens No physical adjustment is required or possible for the lens, but you should ensure that the lens cover remain clean.
Page 7
All manuals and user guides at all-guides.com Rear - iCamera2 Figure 2: Rear Panel 1. LAN Port Use standard Ethernet cable (RJ45 connectors) to connect your PC to the port for installation and configuration. The port is also used for power connection when the camera is under wireless mode. A customized PoE (Power over Ethernet) splitter, as a Y-cable, for both Ethernet and DC Jack is provided.
All manuals and user guides at all-guides.com Package Contents The following items should be included: If any of these items are damaged or missing, please contact your dealer immediately. 1. iCamera2 x 1 2. Stand x 1 3. Y-cable x 1 4. DC Cable x 1 5.
Installation - iCamera2 Step 1 - Initial Setup Initial setup is required when the iCamera2 is used for the FIRST time. It only needs to be done ONCE in order to configure the wireless settings for the iCamera2. Note: Skip this section if the iCamera2 has been set up already.
Page 10
All manuals and user guides at all-guides.com 1. Assemble the Camera Hold the metal screw of the stand up. Face the back of the iCamera2 to the stand and turn the iCamera2 clockwise to attach it to the stand. 2. Connect the Y-cable Connect the provided Y-cable (with Ethernet) to the LAN port of iCamera2.
Page 11
3. Power Up Connect the DC cable to the Ethernet cable. Connect the supplied power adapter to the DC cable to power up the iCamera2. Use only the power adapter provided. Using a different one may cause hardware damage. 4. Check the LEDs •...
3. Attach the stand to the plate. 4. Connect the LAN cable into the LAN port of the device. Turn the iCamera2 clockwise to attach it to the stand. 5. Connect the other end of the LAN cable to the adapter through the holes of the stand.
Router must be configured correctly. See Making Video available from the Internet in Chapter 4 - Advanced Viewing Setup for details. Requirements To view the live video stream generated by the iCamera2, you need to meet the following requirements: •...
Page 14
5. If the Administrator has restricted access to known users, you will then be prompted for a username and password. Enter the name and password assigned to you by the iCamera2 administrator. 6. The first time you connect to the camera, you will be prompted to install decoders.
Also, you need a broadband Internet connection to view video effectively. Dial-up connections are NOT supported. To establish a connection from your PC to the iCamera2 via the Internet: 1. Obtain the following information from the Administrator of the camera you wish to connect to: •...
Page 16
6. If the Administrator has restricted access to known users, you will then be prompted for a username and password. Enter the name and password assigned to you by the iCamera2 administrator. 7. The first time you connect to the camera, you will be prompted to install decoders.
All manuals and user guides at all-guides.com Viewing Live Video After installing the decoders, you will be able to view the live video stream in its own window, as shown below. Figure 7: View Video Screen There are a number of options available on this screen, accessed by select list, button or icon. See the table below for details.
Page 18
All manuals and user guides at all-guides.com General Options These options are always available, regardless of the type of camera you are connected to. Streaming. Use this drop-down list to select the desired streaming. Full Size. When using high-resolution mode (1280*720), click this button to see the full size of the image.
If necessary, the iCamera2 Administrator can adjust the Video image. To Adjust the Video Image: 9. Connect to the Web-based interface of the iCamera2. (See Chapter 5 - Web-based Management for details.) 10. Select Administration, then Streamings. You will see a screen like the example below.
Page 20
All manuals and user guides at all-guides.com Select the default channel for streaming from the drop-down list. Default Streaming Channel Streaming 1 Settings Video Format Select the desired format from the list. Resolution Select the desired video resolution format. • Constant Bit Rate: Select the desired bit rate.
Page 21
All manuals and user guides at all-guides.com User Defined URI You may enter the URI up to 32 characters long for accessing the live video from camera through cell phone connection.
All manuals and user guides at all-guides.com Controlling User Access to the Video Stream By default, anyone can connect to the iCamera2 and view live Video at any time. If desired, you can limit access to scheduled times, and also restrict access to known users.
Normally, HTTP (Web) connections use port 80. Since the iCamera2 uses HTTP, but port 80 is likely to be used by a Web Server, you can use a different port for the iCamera2. This port is called the Secondary Port.
Enter the Internet address of the Router/Gateway, and its port number, in the Address (or Location) field of your Browser. Example - IP address: HTTP://203.70.212.52:1024 Where the Router/Gateway's Internet IP address is 203.70.212.52 and the "Secondary Port" number on the iCamera2 is 1024.
Motion Detection Alerts The Motion Detection feature can generate an Alert when motion is detected. The iCamera2 will compare consecutive frames to detect changes caused by the movement of large objects. But the motion detector can also be triggered by: •...
This Chapter provides Setup details of the iCamera2’s Web-based Interface. This Chapter is for the Camera Administrator only. Introduction The iCamera2 can be configured using your Web Browser. The iCamera2 must have an IP address which is compatible with your PC. Connecting to iCamera2 •...
All manuals and user guides at all-guides.com Welcome Screen When you connect, the following screen will be displayed. Figure 13: Welcome Screen The menu options available from this screen are: • View Video - View live Video using your Web Browser. See Chapter 3 - Viewing Live Video for details.
All manuals and user guides at all-guides.com Administration Menu Clicking on Administration on the menu provides access to all the settings for the iCamera2. The Administration menu contains the following options: Setup • System • Network • Wireless • DDNS •...
Figure 14: System Screen Data - System Screen System Settings Device ID This displays the ID for the iCamera2. Enter the desired name for the iCamera2. Camera Name Description This field is used for entering a description, such as the location of the iCamera2.
Page 30
Enable or disable the Time Server feature as required. Network Time Protocol If Enabled, the iCamera2 will contact a Network Time Server at regular intervals and update its internal timer. Enter the address for the desired NTP server. NTP Server...
All manuals and user guides at all-guides.com Network Screen This screen is displayed when the Network option is clicked. Figure 15: Network Screen...
Page 32
ISP. • Password - Enter the password for the login name above. Obtain DNS server If selected, the iCamera2 will use the DNS address or addresses provided by the DHPC server. address automatically This option is only available if the IP address setting is Obtain an IP address Automatically.
Page 33
The Time to Live you entered must be in-between 1 to 255. UPnP Enable Discovery If enabled, the iCamera2 will broadcast its availability through UPnP. UPnP compatible systems such as Windows XP will then be able to detect the presence of the iCamera2.
Page 34
If enabled, HTTP connections (from your Web Browser) can use secondary port instead of port 80 (the standard HTTP port) to access the camera. Bonjour If enabled, the iCamera2 can be accessed through a "Bonjour" Enable Bonjour enabled browser, such as Microsoft Internet Explorer (with a Service Bonjour plug-in) or Safari browser.
Select your region from the drop-down list. Domain • Channel No. In Infrastructure mode, this setting is ignored. The iCamera2 will use the Channel set on the Access Point. • For Ad-hoc mode, select the Channel you wish to use on your iCamera2.
Page 36
All manuals and user guides at all-guides.com Security Security System Select the desired option, and then enter the settings for the selected method: • Disabled - No security is used. Anyone using the correct SSID can connect to your network. This is default. •...
Page 37
All manuals and user guides at all-guides.com WPA Personal Shared Key Enter the key value. Data is encrypted using a key derived from the network key. Other Wireless Stations must use the same network key. The PSK must be from 8 to 63 characters or 64 hex characters in length.
All manuals and user guides at all-guides.com DDNS Screen Many Internet connections use a "Dynamic IP address", where the Internet IP address is allocated whenever the Internet connection is established. This means that other Internet users don't know the IP address, so can't establish a connection. DDNS is designed to solve this problem, as follows: •...
Page 39
All manuals and user guides at all-guides.com Account/E-Mail Enter the login name for the DDNS account. Password/Key Enter the password for the DDNS account. Check WAN IP Set the schedule for checking if the Internet IP address has changed. If the IP address has changed, the DDNS Server will be Address notified.
All manuals and user guides at all-guides.com IP Filter The IP Filter feature allows administrator to control Full HD IP Camera access by filtering IP addresses. This screen is displayed when the IP Filter menu option is clicked. Figure 18: IP Filter Screen Data - IP Filter Screen IP Filter IP Filter...
All manuals and user guides at all-guides.com Streamings This screen is displayed when the Streamings menu option is clicked. If you want to view streaming via the cell phone: 1. Cell phone should be supported by 3GPP protocol. 2. Enter 554 for RTSP port number in the Network screen. 3.
Page 42
All manuals and user guides at all-guides.com Data - Streamings Screen Select the default channel for streaming from the drop-down list. Default Streaming Channel Streaming 1 Settings Video Format Select the desired format from the list. Resolution Select the desired video resolution format. •...
Page 43
All manuals and user guides at all-guides.com User Defined URI You may enter the URI up to 32 characters long for accessing the live video from camera through cell phone connection.
Select the desired option for the Saturation. You can select a value between -3 and 3. Day/Night Switch Switching Method The iCamera2 supports Day/Night mode switch for getting better quality of the low light condition. Select the desired method to use this function. IRLED Luminance...
Page 45
All manuals and user guides at all-guides.com Options Enable Microphone Enable audio by checking this checkbox. Using Audio will increase the bandwidth requirements slightly. Audio Type Select the desired audio type. Flip This setting will have the image swapped top-to-bottom. This setting will have the image swapped left-to-right.
All manuals and user guides at all-guides.com Video Access Screen This screen is displayed when the Video Access option is clicked. Figure 21: Video Access Screen Data - Video Access Screen User Access • If disabled (default) - No login required. Users do not have to Enable Security provide a username and password when they connect to the Checking...
Page 47
All manuals and user guides at all-guides.com Add New Schedule Choose the desired option for the period. Enter the start time using a 24 hr clock. Start Time Enter the end time using a 24 hr clock. End Time Click this button to add a new period. Clear Use this button to clear the input fields.
All manuals and user guides at all-guides.com User Database Screen This screen is displayed when the User Database option is clicked. Figure 22: User Database Screen Data - User Database Screen Existing Users User List This displays all users you have entered into the User database. If you have not entered any users, this list will be empty.
All manuals and user guides at all-guides.com Pan/Tilt Screen This screen is displayed when the Pan/Tilt option on the Video & Audio menu is clicked. Figure 23: Pan/Tilt Screen Data - Pan/Tilt Screen Pan/Tilt Select desired option for the patrol function. Patrol Click this button to define the preset point position.
Page 50
All manuals and user guides at all-guides.com Set Preset Position Screen This screen is displayed when the Preset Point Position button on the Pan/Tilt screen is clicked. Figure 24: Preset Point Position Screen Data - Preset Point Position Click this button to go to the center location. Goto Center Go to the user defined location.
All manuals and user guides at all-guides.com Motion Detection Screen This screen is displayed when the Motion Detection option on the Event menu is clicked. Figure 25: Motion Detection Screen Data - Motion Detection Screen Motion Detection Enable this if you want to use motion detection. Motion Enable Note: Motion detection can be triggered by rapid changes in lighting condition, as well as by moving objects.
All manuals and user guides at all-guides.com Audio Detection Screen This screen is displayed when the Audio Detection option on the Event menu is clicked. Figure 26: Audio Detection Screen Data - Audio Detection Screen Audio Detection Current It displays the current volume of the environment. Click Refresh to Volume update the status.
All manuals and user guides at all-guides.com E-Mail Screen This screen is displayed when the E-Mail option on the Event menu is clicked. Figure 27: E-Mail Screen Data - E-Mail Screen Primary/Secondary SMTP Server SMTP Server Enter the address of the SMTP (Simple Mail Transport Protocol) Address Server to be used to send E-Mail.
All manuals and user guides at all-guides.com FTP Screen This screen is displayed when the FTP option on the Event menu is clicked. Figure 28: FTP Screen Data - FTP Screen Primary/Secondary FTP Enter the address of the FTP Server. FTP Server Port Enter the Port of the FTP Server to be connected.
All manuals and user guides at all-guides.com HTTP Screen This screen is displayed when the HTTP option on the Event menu is clicked. Figure 29: HTTP Screen Data - HTTP Screen HTTP(s) Notification Enter the URL of your HTTP notification server. User Name Enter the user name of your HTTP server.
Page 56
All manuals and user guides at all-guides.com Password Enter the password to match the user name above. Post URL Enter the URL of your HTTP post server.
All manuals and user guides at all-guides.com Trigger & Recording Screen This screen is displayed when the Trigger & Recording option is clicked. Figure 30: Trigger & Recording Screen Data - Trigger & Recording Screen Event Schedule Schedule List The Event Schedule shows all of the event types currently configured in the Waterproof HD IP Camera, along with various information about their configuration, as listed below: •...
Page 58
All manuals and user guides at all-guides.com Add a new Schedule Figure 31: Add schedule screen Name Enter the name of the schedule. Schedule Schedule Choose the desired option: • Always • Schedule • Never Trigger Event • Motion Detection - Movement in a motion detection window Trigger by can be used to trigger events.
Page 59
All manuals and user guides at all-guides.com • Pre/Post Capture - Select the desired length. The size of the Attachment Type file depends on this setting, and also the Video size and degree of compression.
Firmware file. Select this file. Start Click this button to start the Firmware. When the upgrade is finished, the iCamera2 will restart, and this management connection will be unavailable during the restart. Clear File Name This does NOT stop the Upgrade process if it has started. It only clears...
Page 61
All manuals and user guides at all-guides.com Backup & Restore Click Backup button to save the current configuration information to a Backup Configuration text file. File It is suggested to backup the configuration file, in order to restore the camera easily. Click Restore button to reinitialize the camera to load the new updated Restore software.
Data - Status Screen System This shows the name of the iCamera2. Device Name Description This shows the description of the iCamera2, such as location. F/W version The version of the current firmware installed. Network The current IP address of the iCamera2.
Page 63
All manuals and user guides at all-guides.com Channel This shows the wireless channel currently used. Security The current security setting for Wireless connections. This shows the strength of the signal. Signal Strength Streaming (1~3) Video Format It displays the current format of video. Resolution The image size of the video stream.
All manuals and user guides at all-guides.com Log Screen This screen displays a log of system activity. Figure 34: Log Screen Data - Log Screen This is a log of system activity. System Log Click this to update the data shown on screen. Refresh Button Click this button to restart the log.
This chapter covers some common problems that may be encountered while using the iCamera2 and some possible solutions to them. If you follow the suggested steps and the iCamera2 still does not function properly, contact your dealer for further advice.
Page 66
All manuals and user guides at all-guides.com The motion detection feature doesn't send me any E-mail. Problem 5 It may be that the SMTP (Simple Mail Transport Protocol) server used by Solution 5 the camera to send the E-Mail will not accept mail. (This is to prevent span being sent from the server.).
Page 67
All manuals and user guides at all-guides.com Appendix A Specifications iCamera2 Model iCamera2 Dimensions 76.8mm (W) x 76.8mm (H) x 32.7mm (D) (without stand) Operating Temperature 0° C to 45° C Video compression H.264 and MJPEG Network Interface 1 Ethernet 10/100BaseT (RJ45) Storage Temperature -20°...
Page 68
All manuals and user guides at all-guides.com C Stateme This s equipment ge enerates, uses and can radia ate radio frequ uency energy a and, if not ins stalled and use ed in acco ordance with th he instruction s, may cause h harmful interf ference to rad io communica...
Page 69
All manuals and user guides at all-guides.com IC Approvals CAN-ICES-3 (B)/ NMB-3(B) This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
