CLE 8000 TYXAL +
Wireless outdoor keypad
EN
LS14500 – 3,6V - Lithium
Consumption stand-by : 2.5 µA
Consumption : 25 mA max..
868 - 868.6 MHz / 868.7 - 869.2 MHz
Maximum power radio < 10 mW,
receiver category: 2
IP
77 x 112 x 27 mm -
Important product
information (Ë Ì)
* Jusqu'à 10 ans, valable dans les conditions d'utilisation précisées dans
les notices d'installation et les Conditions générales de Vente
* Up to 10 years valid under the conditions of use specified in the
installation instructions and the General Conditions of Sale
* Hasta 10 años siempre y cuando se respeten las condiciones de
uso especificadas en el manual de instalación y en la Condiciones
Generales de Venta
www.deltadore.com
100 m Ý 300m
-10°C / +70°C
-25°C / +70°C
IP 64
75%
313 gr.
Contenu / Contents / Inhalt
Contenuto / Contenido / Inhoud
Zawartość
* Fino a 10 anni, in base alle condizioni di utilizzo precisate nelle
istruzioni di installazione e nelle Condizioni Generali di Vendita
* Bis zu 10 Jahren unter den in der Bedienungsanleitung und den AGB
angegebenen Nutzungsbedingungen
* Tot 10 jaar, geldig onder de gebruiksvoorwaarden gespecificeerd in de
installatie-handleidingen en de algemene verkoopsvoorwaarden
* aż do 10 lat, przy użytkowaniu zgodnym z opisem w instrukcji
instalowania oraz Generalnymi warunkami Sprzedaży
Instructions
Important
Product
Informations
Advertisement
Related Manuals for DELTA DORE CLE 8000 TYXAL+
Summary of Contents for DELTA DORE CLE 8000 TYXAL+

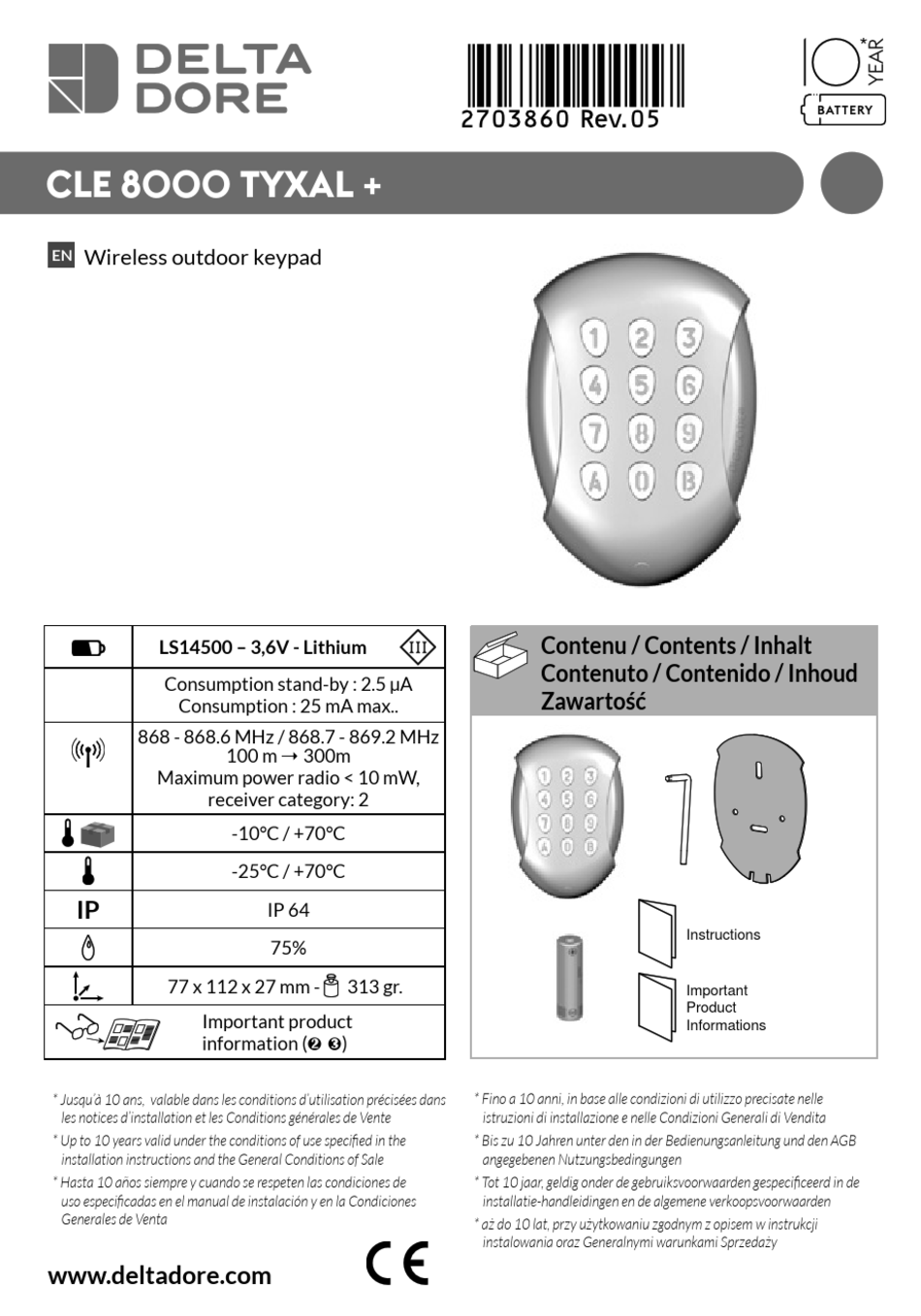

- Page 1 CLE 8000 TYXAL + Wireless outdoor keypad Contenu / Contents / Inhalt LS14500 – 3,6V - Lithium Contenuto / Contenido / Inhoud Consumption stand-by : 2.5 µA Zawartość Consumption : 25 mA max.. 868 - 868.6 MHz / 868.7 - 869.2 MHz 100 m Ý...
