- Page 1 DW30...
- Page 2 Warranty not exceed 600°C and is soot fire rated at 1000°C. Specflue DW30 is available in 130 and 150mm Specflue DW30 carries a 25 years conditional internal diameters and consists of adaptors, warranty.
-
Page 3: Combustion Air Requirements
Data Plate Floor Penetration Components It is a regulatory requirement that a data plate Where the Specflue DW30 product is used on solid is to be completed, positioned and secured fuel or oil appliances and the flue gas temperature by the installer where a hearth, fireplace, flue exceeds 250°C, the clearance at floor/ceiling void... - Page 4 Internal Installation Diagram Matt Black Finish BS 9004 Rain Cap Roof Support Flashing + Storm Collar Flue Enclosure Kit Combustible Floor Ventilated Fire Shield Stainless Finish in Closed Areas Ventilated Support Plate (Square) Magnetic Fire Shield Cover Ventilated Fire Shield (Round) Adjustable Pipe Allow Appliance Removal Matt Black Finish...

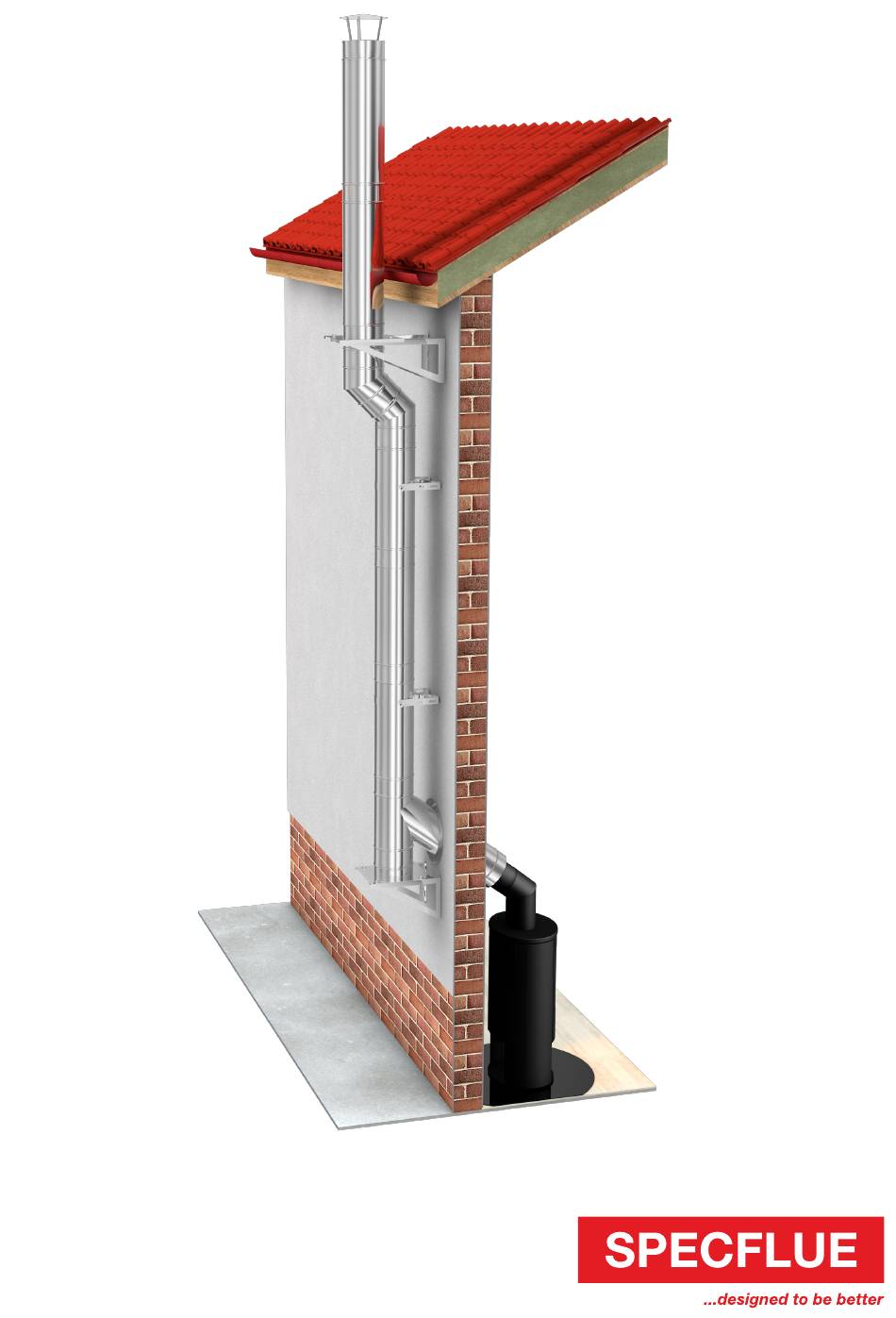

- Page 5 External Installation Diagram Locking Bands Termination Height to ADJ Bends Adj Wall Support Adj Wall B Wall Sleeve 135 Tee Specvit to DW30 Adaptor Tee Cap Specvit (Extended) Wall Support...
- Page 6 Starting Adaptor Used to connect DW30 to an appliance socket and/or connecting pipe. Part No 0105094 0105094MB Increasing Adaptor Used to connect DW30 to an appliance socket and/ or connecting pipe, increasing up in diameter. Part No 105097 0105097MB 0106097 0106097MB...
- Page 7 Anchor Plate Used to connect DW30 to a raft lintel. Can also be used at the top of an existing chimney stack where the termination section has been removed. DW30 flue components will sit on brickwork and multifuel flexible liner (155mm only) fits below.
- Page 8 Lengths Pipe (Installed) Straight pipe length – installed length of 80/180/430/930mm. Actual component is 70mm longer than installed length. 80mm Pipe (Installed) Part No 0105006 0105006MB 0106006 0106006MB 180mm Pipe (Installed) Part No 0105012 0105012MB 0106012 0106012MB 430mm Pipe (Installed) Part No 0105005 0105005MB...
- Page 9 Adjustable Pipe (Installed) Used to create specific lengths where standard pipes will not fit. Supplied with insulation pads which must be cut to length and installed within the cavity to ensure a fully insulated product. This component must not be installed within a floor/ceiling void. 300-430mm Adjustable Pipe (Installed) Part No 0105016...
- Page 10 Tees Used at the base of a vertical rise, or to provide access. Not supplied with tee cap. 90 Degree Tee Part No L1 L2 L3 0105043 130 190 330 130 185 0105043MB 130 190 330 130 185 0106043 150 210 330 130 195 0106043MB 150 210 330 130 195 135 Degree Tee...
- Page 11 Wall Sleeve (combustible wall) Part No 0105060 0106060...
- Page 12 Supports Standard Wall Band Provides lateral support for the flue system. Should be used at least every 4m. This items does not load bear. Provides a distance of 60mm from the wall to the back of the pipe. See page 20 for further information. Part No 0105088 0105088MB...
- Page 13 Extended Wall Band 250-400mm Provides lateral support for the flue system. Should be used at least every 4m. This items does not load bear. Provides a distance of between 250mm & 400mm from the wall to the back of the pipe. Support arms may require trimming to achieve smaller distances.
- Page 14 Roof Support Provides flue support as the flue passes through the roof. Adjustable gimble plates allow component to be set at any angle. Fixes into the roof joists. This component provides lateral support only. Part No 0105029 0105029MB 0106029 0106029MB 170mm Support Length (Installed) Small flue length (170mm installed length), fixed onto a support plate.
- Page 15 Firestops & Penetration Components Magnetic Fire Shield Cover Used in conjunction with the Ventilated Fire Shield this component provides a neat finish and aesthetic finish. Magnets secure the component to the Ventilated Fire Shield and ensure a 25mm air gap. Part No 0105110 0105110MB...
- Page 16 135 Degree Trim Collar Elliptical trim collar for when a flue passes through a wall at 45 degrees. Part No L1 L2 L3 L4 L5 L6 0105106 130 190 500 365 280 197 110 84 0105106MB 130 190 500 365 280 197 110 84 0106106 150 210 500 365 304 217 98 0106106MB 150 210 500 365 304 217 98...
- Page 17 Part No 0105076 0105076MB 0106076 0106076MB Top Adaptor to Single Wall Provides a top spigot above the DW30 system. This item can be used to allow connection of anti-down draught terminals, flue fans, adaptors to flexible liner, etc. Part No 0105063...
- Page 18 Flashings Lead Flashing - Flat Suitable for slates, flat tiles and pan tiles. Int. Diameter Ext. Diameter Part No 130mm 210mm 8808038 150mm 235mm 8809038 Lead Flashing - 30˚ Pitch Suitable for slates, flat tiles and pan tiles. Int. Diameter Ext. Diameter Part No 130mm 210mm 8808030...
- Page 19 Rubber upstand on malleable metal base. Suitable for slate, flat tile and pan tile roof. Int. Diameter Ext. Diameter Part No 200 - 275mm 1802035 OTHER FLASHINGS AND ANCILLARIES CAN BE FOUND IN THE SPECFLUE PRICE LIST OR VISIT OUR WEBSITE: WWW.SPECFLUE.COM...
-
Page 20: Elbow Offset Chart
Elbow Offset Chart 130mm DN 150mm DN L = Installed length 2 X 30° BEND 2 X 30° BEND + 80L 2 X 30° BEND + 180L 2 X 30° BEND + 430L 2 X 30° BEND + 930L 1130 1140 2 X 45°... - Page 21 Maximum Load Bearing Data Telescopic Roof Telescopic Support/Guy Roof Wire Bracket Extended Support Wall Support Roof Support Vent. Extended Support Wall Plate Support Extended Wall Wall Band Band Vent. Support Extended Plate Wall Band Extended Wall Support Extended Wall Support 1.5m...
-
Page 22: Additional Information
EN 15287-1 and their associated National Annex NA. Jointing The Specflue DW30 system is built from the bottom upwards. The joints are made by fitting a female end over the preceding male end, and then applying a locking band. - Page 23 Warranty and Life Expectancy Some bio fuels when burnt give off aggressive and corrosive acids which attack and cause For peace of mind, Specflue DW30 carries a 25 premature failure of stainless steel components. year conditional warranty. This covers any product...
- Page 24 Sep-19 DW30 CHIMNEY SYSTEM PART NO. STARTING COMPONENTS 130mm 150mm 0105094 Specvit/Prima Smooth to DW30 Adaptor 43.06 01**097 Increasing Adaptor 43.06 43.78 0106098 Specvit to DW30 Adaptor 43.78 0106099 Prima Smooth to DW30 Adaptor 43.78 01**089 Anchor Plate 98.21 108.07 PART NO.
- Page 25 Sep-19 DW30 CHIMNEY SYSTEM MATT BLACK PART NO. STARTING COMPONENTS 130mm 150mm 0105094MB Specvit/Prima Smooth to DW30 Adaptor 52.03 01**097MB Increasing Adaptor 52.03 52.92 0106098MB Specvit to DW30 Adaptor 52.92 0106099MB Prima Smooth to DW30 Adaptor 52.92 01**089MB Anchor Plate 118.85...
- Page 26 DW30 Specflue Ltd, 9 Curzon Close, Chilton Industrial Estate, Sudbury, Suffolk, CO10 2XW Email: sales@specflue.com Tel: 0333 999 7974...
