Kohler Power Systems KD Series Installation Instructions

Original Issue Date: 12/16

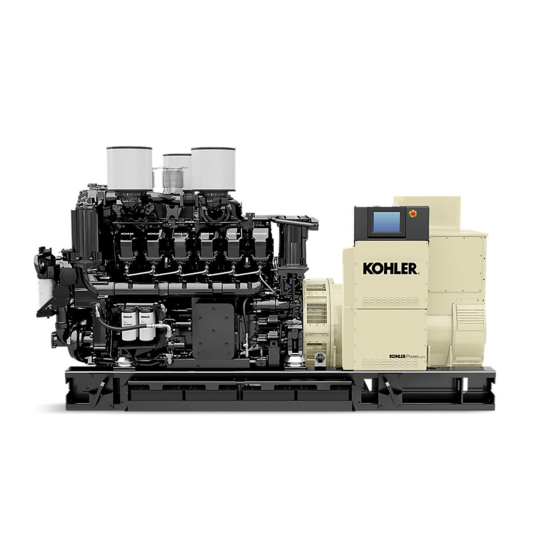

Model: KD Series Generator Sets with APM802 Controller
Market: Industrial
Subject: Remote Emergency Stop Kits, 11101000201-KP1

Introduction

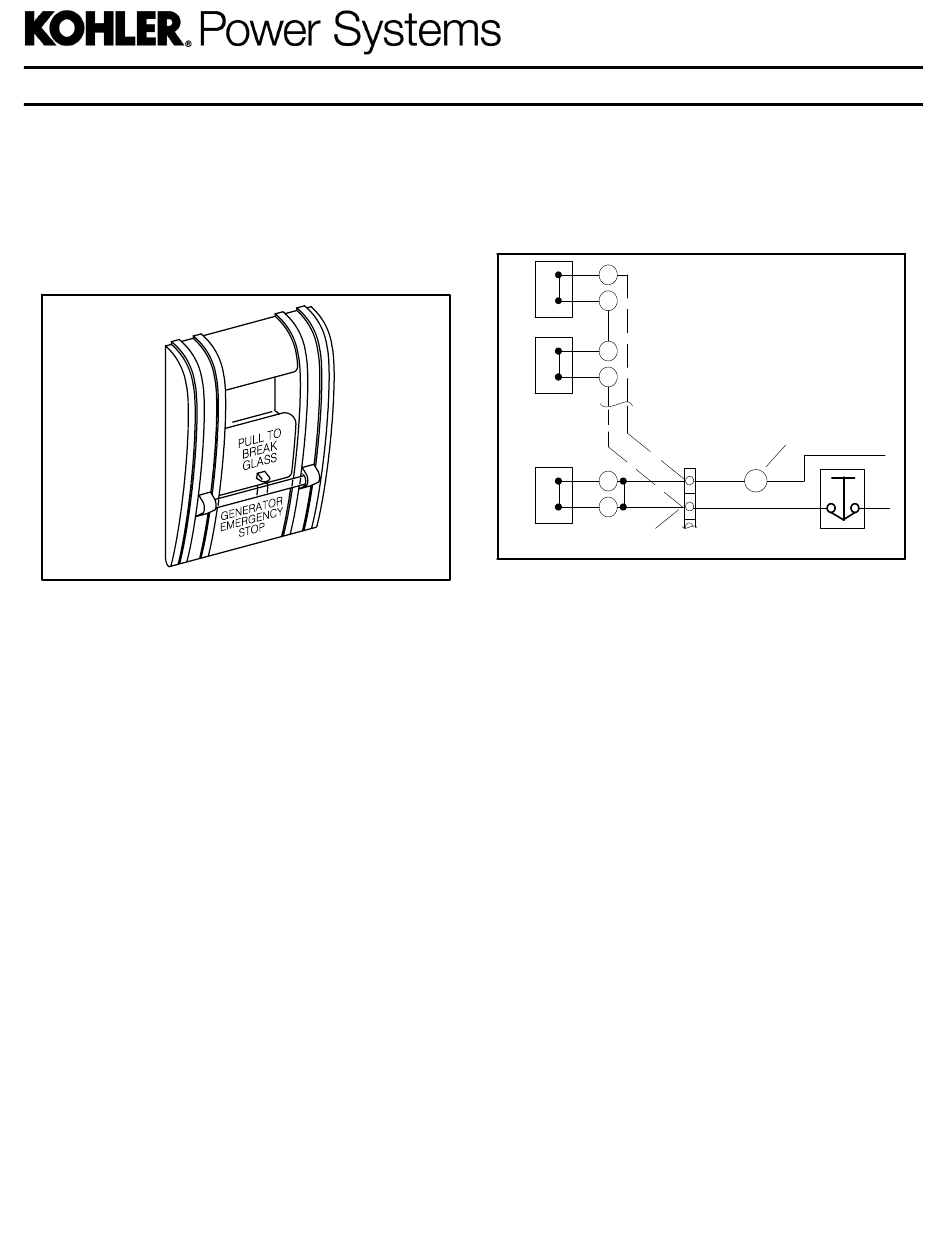

Figure 1 Remote Emergency Stop Switch
The emergency stop kit allows immediate shutdown of
the generator set from a remote location. Mount the
emergency stop switch(es) in a location easily
accessible by operating personnel at a normal
workstation. See Figure 1.
If the emergency stop switch is activated, the controller
shuts down the unit, places the controller in
Out-of-Service mode, and displays an Emergency
Push Button Engaged Fault on the HMI. The generator
set cannot be restarted until the emergency stop
switch(es) is reset by replacing the glass piece and
clearing the fault on the controller.
INSTALLATION INSTRUCTIONS
TP-6200

Emergency Stop Kit Connection

1
2
1
2
Emergency Stop
Kit Connection
(with single switch)
1
2
Remove jumper before
installing kit.
Figure 2 Terminal Block Connections
Connect as many emergency stop switches as
required; however, connect multiple switches in series
so the system functions correctly. The emergency stop
switch is connected to terminal block 10, TB10-1 and 2.
See Figure 2. Remove the jumper from terminals
TB10-1 and 2 before installing the kit.
emergency stop switch is activated, contacts in the
switch open to deenergize the K10 relay and shut down
the generator set.
TT-1719 12/16a
(with multiple switches)
TB10
terminal
K10 relay
block
1
K10
2
Local Emergency Stop
When the
