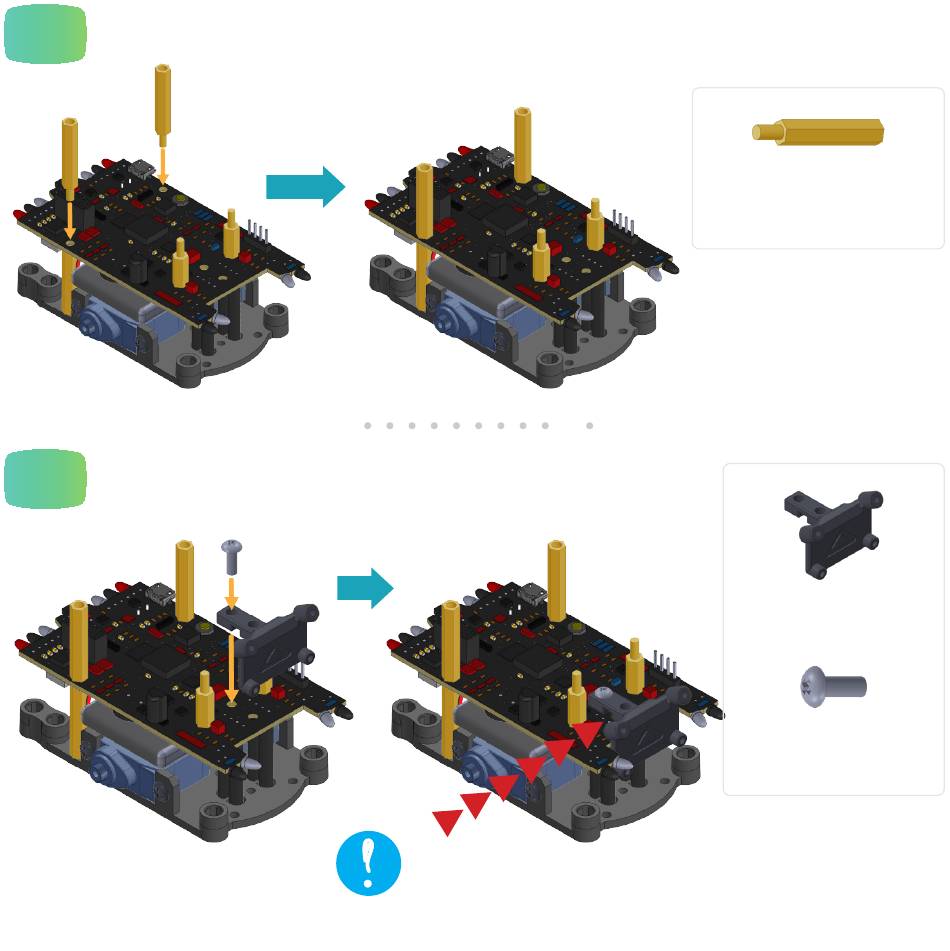

Add standoffs to the Zumi board

8

Attach the mounting bracket

10

TIP!

From the side, check that this

part of the bracket is completely flat

against the Zumi board.

2

long plug

standoffs

Mounting

bracket

1

thick silver

bolt
