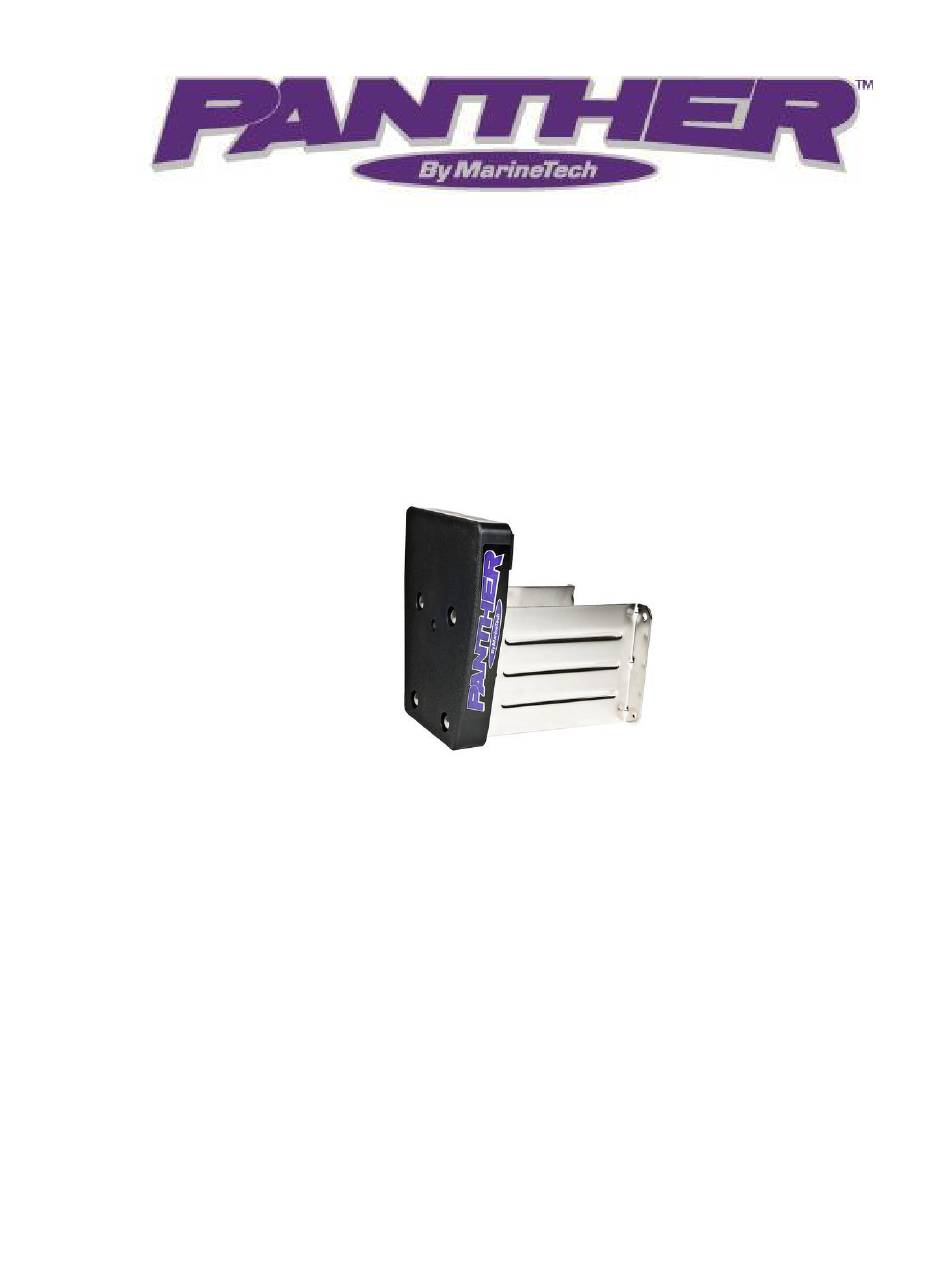

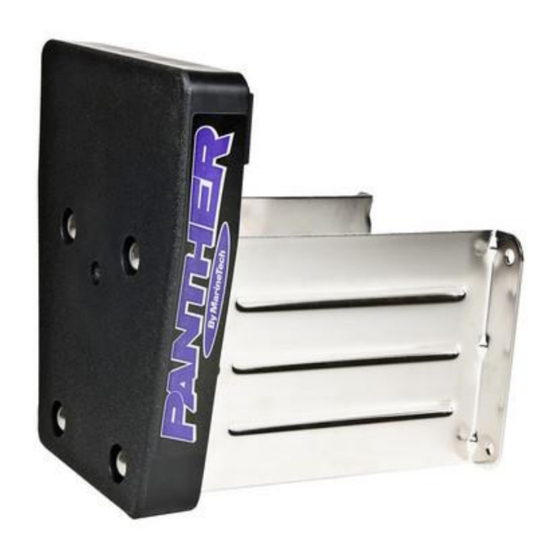

MODEL 55-0028
STAINLESS STEEL FIXED MOUNT
OUTBOARD MOTOR BRACKET
For Engines up to 35hp and 263 lbs. Max Weight
Heavy-duty Stainless Steel
Rugged Polypropylene Mounting Board (2" (5cm) thick)
Includes Mounting Hardware
INSTALLATION MANUAL
CUSTOMER MUST RECEIVE THIS MANUAL WITH INSTALLATION
Advertisement
Table of Contents
Related Manuals for MarineTech Panther 55-0028
Summary of Contents for MarineTech Panther 55-0028
- Page 1 MODEL 55-0028 STAINLESS STEEL FIXED MOUNT OUTBOARD MOTOR BRACKET For Engines up to 35hp and 263 lbs. Max Weight Heavy-duty Stainless Steel Rugged Polypropylene Mounting Board (2” (5cm) thick) Includes Mounting Hardware INSTALLATION MANUAL CUSTOMER MUST RECEIVE THIS MANUAL WITH INSTALLATION...
- Page 2 AUXILIARY OUTBOARD MOTOR BRACKET CAUTION GUIDELINES AUXILIARY OUTBOARD MOTOR BRACKET CAUTION GUIDELINES Always remove your motor from bracket when trailering. Failure to do so may result in damage to boat, motor, or bracket. 2. Do not exceed the stated H.P. rating or weight. 3.
- Page 3 MOUNTING THE BRACKET TO THE BOAT Place the assembled bracket on the desired location of your transom. Check to make sure there are no obstructions on the inside of the transom. Hold the bracket in place. Make certain that the bracket is level with the transom. Mark at least two (2) upper and two (2) lower hole locations using the assembled bracket as a template.
