Summary of Contents for MarineTech Panther 55-0416

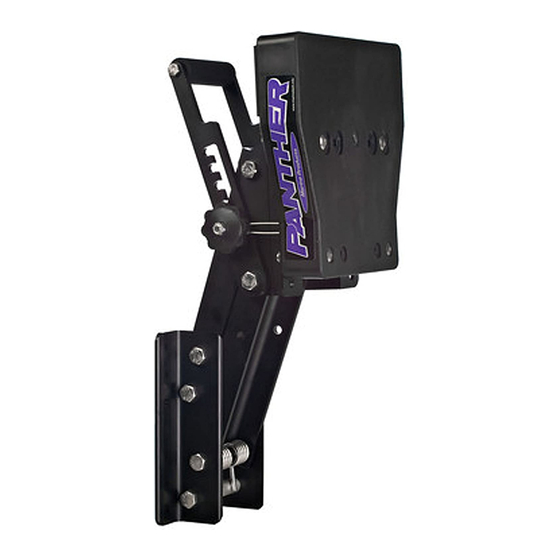

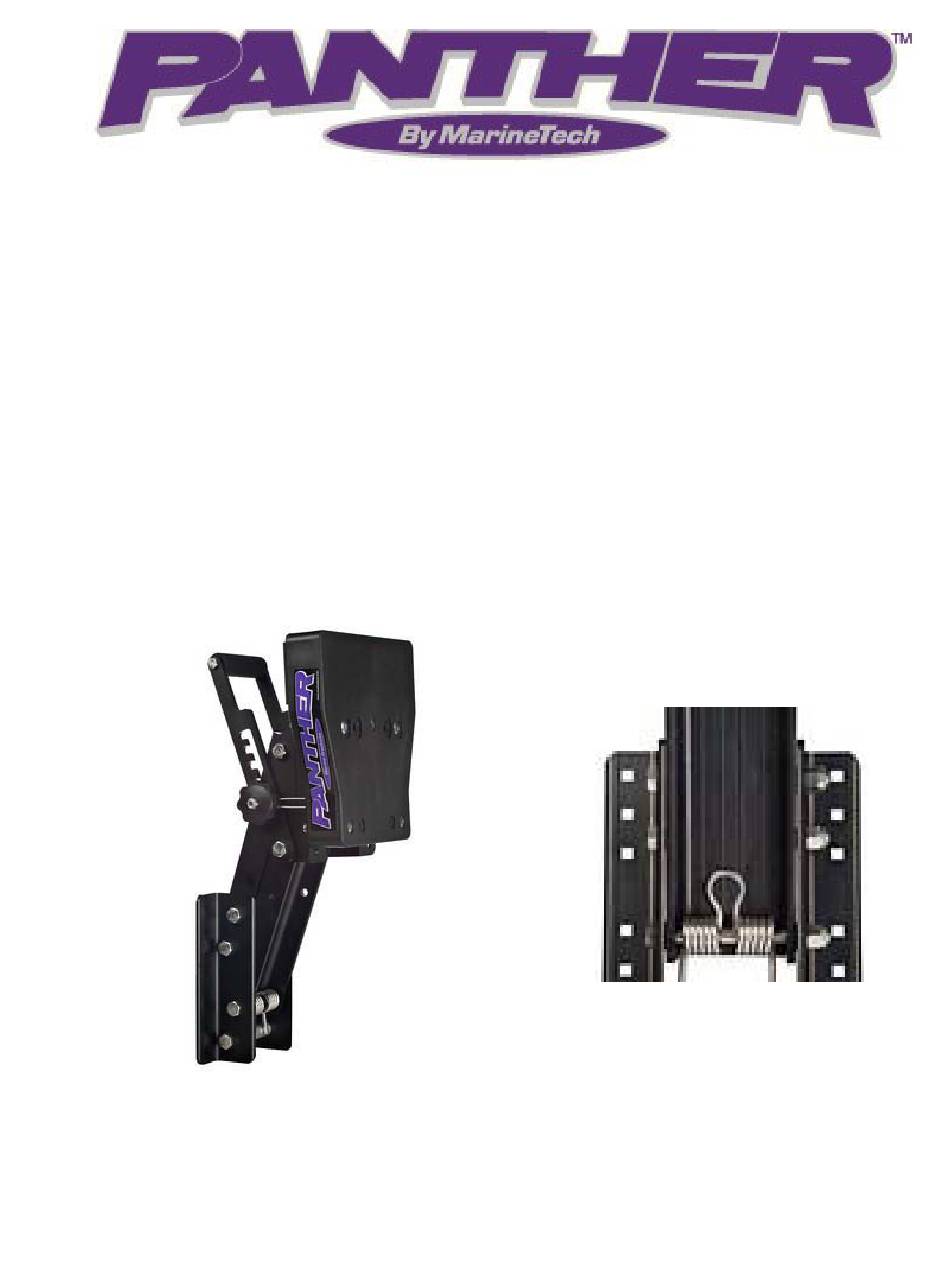

- Page 1 55-0416 ALUMINUM BRACKET DESIGNED FOR 4-STROKE MOTORS UP TO 35 HP AND 263 LBS INSTRUCTION MANUAL REV. 12/15...
- Page 2 4-Stroke Auxiliary Outboard Motor Bracket Mounting and Operating Instructions For the following products only: 55-0407AL, 55-0408SS, 55-0410, 55-0416 AUXILIARY OUTBOARD MOTOR BRACKET CAUTION GUIDELINES 1. Always r emove your motor fr om br acket when tr ailer ing. Failur e to do so may r esult in damage to boat, motor, or bracket.
- Page 3 DIAGRAM A DIAGRAM B This bolt adjustment is only available on Model 55-0408SS Position the outboard motor bracket on the transom of the boat on either the starboard or port side. Care should be exercised to make sure that the bracket will not interfere with the movement of the existing engine or a rudder.
- Page 5 The warranty coverage on this equipment is limited to the terms set forth below MarineTech Products, Inc. warrants this product to be free of defects in material and workmanship for a period of ONE (1) YEAR from the date of original retail purchase. Positive proof of date of purchase is required for warranty service. If service is required and covered by warranty, the unit will be repaired or replaced with new or factory rebuilt parts at no charge.
- Page 6 MarineTech Products, Inc. is proud to offer these fine lines SOLUTIONS FOR MOTOR MOUNTING, REMOTE STEERING, TILT & TRIM, SHALLOW WATER ANCHORS, AND SECURITY SYSTEMS THE ORIGINAL ENGINE-MOUNTED ELECTRIC TROLLING MOTORS—HIGH THRUST WITH WHISPER-QUIET EFFICIENCY ROD HOLDERS, TROLLING MOTOR SUPPORTS, AND...
Need help?
Do you have a question about the Panther 55-0416 and is the answer not in the manual?
Questions and answers
Is the stainless arm at the bottom of the bracket, held by a bolt on the bracket side with a 1" hole on the other end meant for the safety cable?
I have a 4 stroke 9.9 hp that weighs about 120. Is this too small for the panther 55-0416?
