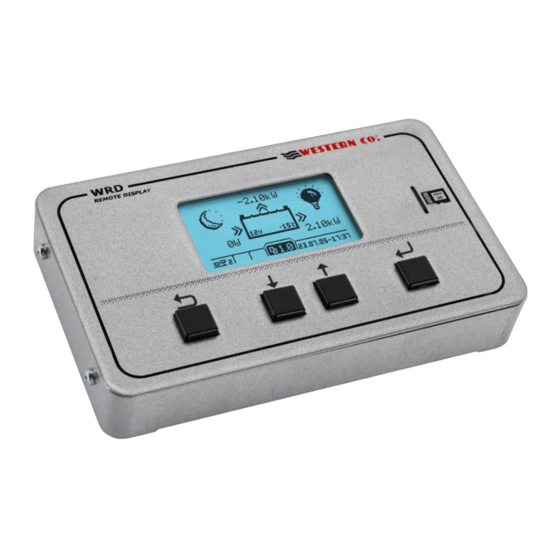

Western Co WRD User Manual

Remote display for western wrd system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
WRD
Remote display for WESTERN WRD SYSTEM
Manuale utente
User manual
Manual del usuario
Benutzerhandbuch
IT
EN
FR
ES
DE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WRD and is the answer not in the manual?

Questions and answers

Related Manuals for Western Co WRD

Summary of Contents for Western Co WRD

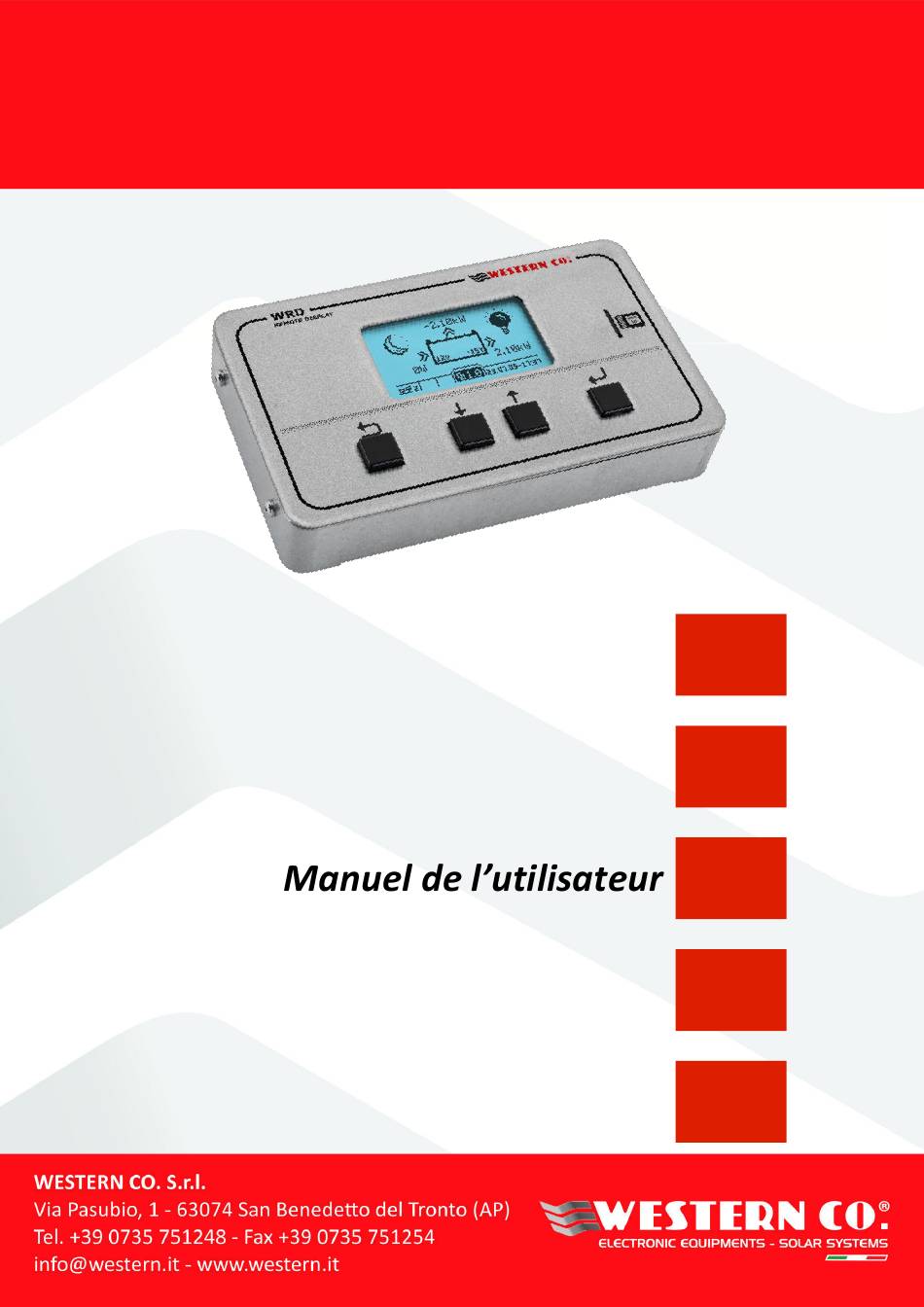

  • Page 1 Remote display for WESTERN WRD SYSTEM Manuale utente User manual Manual del usuario Benutzerhandbuch...
  • Page 2 Data logger on extractable Master for WESTERN WRD SYSTEM WRD is a display and controller device that together with the proprietary WBUS Interface bus WBUS is part of the WESTERN WRD SYSTEM, a complete and intelligent system for the production and storage of photovoltaic energy in stand-alone systems.

  • Page 3: Table Of Contents

    8.3. Configuration: WRD + WBM + WRMxx ....................10 (1 ..8) 8.3.1. Description ............................10 8.4. Configuration: WRD + Leonardo System ....................10 8.4.1. Main screens ............................10 9. MAIN SCREENS ..............................11 10. SETUP MENU: ..............................13 11. WARRANTY ..............................22 12.

  • Page 4: General Description

    By setting in the setup menu 8.4 WRD -> Oper.Mode: 'MONITOR': you get the View mode. In this mode, the WRD does not control the charging and discharging of the system, but takes care only of displaying the parameters of the connected devices, can change the setup settings of the slaves, collects data and remotely displays them in the cloud.

  • Page 5: Possible Configuration

    A6, A7 Depending on the current hardware, the configuration must be set on the WRD. This operation is performed on the menu: 8.0 WBUS CONFIG. where the addresses of the devices connected to the device must be specified WBUS to facilitate the operation an auto configuration command is available that detects the connected hardware.

  • Page 6: Menu Navigation

    Manuale utente 3. MENU NAVIGATION Navigating through the various screens is very simple and intuitive. The WRD has two display environments (Pic.2): the main environment MAIN, consisting of six screens where the operation of the system is monitored; SETUP setting environment, consisting of 6 screens + 5 in ADV. SETUP where the settings for the operation are set.

  • Page 7: Electrical Features

    Manuale utente 4. ELECTRICAL FEATURES DESCRIPTION PAR. VALUE U.M. Nominal battery voltage 12 / 24 / 48 autodetect Supply voltage range Vbatt 10 ÷ 64 Self consumption Operating temperature Tamb -10 ÷ +40 (°C) Max cable section terminal (Power and RS485) Weight Dimension LWH 160 x 95 x 27...

  • Page 8: Fixing Options

    Manuale utente 6. FIXING OPTIONS: Pic.5 - Fixing options...

  • Page 9: Iot Platform For Monitoring And Remote Control

    7. IOT PLATFORM FOR MONITORING AND REMOTE CONTROL The WRD, through the Internet connection and IoT technology, communicates with the remote server and transmits operating data. By registering and logging into the WRM MONITOR client web interface, it is possible to interact with the system by changing its settings and, at the same time, monitor its own energy system.

  • Page 10: Configurations

    The WRMxx controllers, which can be paralleled up to a maximum of 8, are used to charge the battery. (see dedicated product manual for more details). The WRD allows to collectively configuring the most common parameters of all the WRMxx in the Setup Menu 7.0, while it performs this individually in the Setup Menu 8.2.: Select the correct profile according to the type of battery.

  • Page 11: Configuration: Wrd + Wbm + Wrmxx

    The WRMxx controllers, which can be paralleled up to a maximum of 8, are used to charge the battery. (See dedicated product manual for more details). The WRD allows to collectively configuring the most common parameters of all the WRMxx in the Setup Menu 7.0, while it performs this individually in the Setup Menu 8.2.: Select appropriately the setting of the Load output Set the Low Battery threshold for the output Load.

  • Page 12: Main Screens

    Manuale utente 9. MAIN SCREENS Configuration with WRD + WBM + WRMxx (1..8) MENU 1.0 Current flow Battery power + +IN/-OUT IN/-OUT (Flash if out range) (Flash if out range) Night/Day detection Status Out Load (Flash if OVL or LB)
  • Page 13 Manuale utente Configuration with WRD + WBM + WRMxx (1..8) MENU 3.0 Battery voltage PV charge current PV charge power (Flash if out range) Photovoltaic variables Battery power IN/OUT Battery variables (Flash if out range) Load variables Load power n.Menu / Warning...

  • Page 14: Setup Menu

    Manuale utente 10. SETUP MENU: Configuration with WRD + WBM + WRMxx (1..8) MENU 7.0 List displayed: Value: Settable value and descriptions: Settings: Batt.Type: Pb Seal/ WBM SB: Pb Flood 14.80@25°C / 29.60@25°C / 59.20@25°C : Setting to operate with Pb Flood type battery.
  • Page 15 FAT12/16/32) and calculates the free space on File SYS: FAT32 the card. free space: 3772MB FIND WRD*.* : read and list the files one at a time Info: Find WRD*.* by showing the name, size, and date of WRDEVENT.LOG 27kB the last update.
  • Page 16 Manuale utente Configuration with WRD + WBM + WRMxx (1..8) MENU 7.3 List displayed: Value: Settable value and descriptions: Item: Value: OFF; ON : Disable/Enable cloud connection to transfer CONNECTION data to the server. Enable DHCP: OFF; ON : Disable/Enable DHCP function.
  • Page 17 Manuale utente Configuration with WRD + WBM + WRMxx (1..8) MENU 7.4 List Value: Settable value and descriptions: Network param.: status: OFF-LINE OFF-LINE; ON-LINE : current status of cloud connection. IP : 192.168.100.067 current device IP Address. sNM: 255.255.255.000 current subnet mask.
  • Page 18 Manuale utente Configuration with WRD + WBM + WRMxx (1..8) 00; 33 : WBUS Address of the WBM device. <0..32> : WBUS Address of the WRMxx devices, from 1^ to 8^. (00 if device is not present) 00; 34 : WBUS Address of the WI device.
  • Page 19 Manuale utente Configuration with WRD + WBM + WRMxx (1..8) MENU 8.1 List displayed: Value: Settable value and descriptions: WBM SETUP: WBM SB: Batt.Type: Pb Seal/ Pb Flood 14.80@25°C / 29.60@25°C / 59.20@25°C : Setting to operate with Pb Flood type battery.
  • Page 20 Manuale utente Configurazione con WRD + WBM + WRM30 (1..8) MENU 8.2 List displayed: Value: Settable value and descriptions: WRM30 SETUP: <1..8> select the WRM30 to edit. VEoCharge: 14.40V Set the battery charge voltage: Pb Flood 14.80@25°C / 29.60@25°C / 59.20@25°C : Setting to operate with Pb Flood type battery.
  • Page 21 Manuale utente Configurazione con WRD + Leonardo OFF-GRID MENU 8.3 List displayed: Value: Settable value and descriptions: MENU 8.0 WI.SETUP: Set the type of the installed system: 1-4K-LI: Provides the presence of WRM, recharging from AC-IN System Type: is not allowed, feeding into the grid is not admitted.
  • Page 22 *CAUTION* Technical Menu is reserved for factory checks. NOTES: - not present in WRD + WBM Configuration; - not present in WRD + WRMxx Configuration; - the light bulb icon appears in the WRD + WRMxx Configuration; - in WRD + Leonardo OFF-GRID Configuration;...

  • Page 23: Warranty

    The defective product must be returned to Western Co. Srl or to the company delegated by Western Co to make ether with a copy of the invoice both for repairing and warranty replacement.
  • Page 24 Manuale utente Appendice Appendix Annexe Apéndice Anhang...
  • Page 32 Questo documento è di proprietà di WESTERN CO. Srl - Tutti i diritti sono riservati - La riproduzione e l'uso delle informazioni contenute nel presente documento sono vietati senza il consenso scritto di WESTERN CO. Srl. This document is the property of WESTERN CO. Srl - All rights are reserved - Reproduction and use of information contained within this document is forbidden without the written consent of WESTERN CO.
