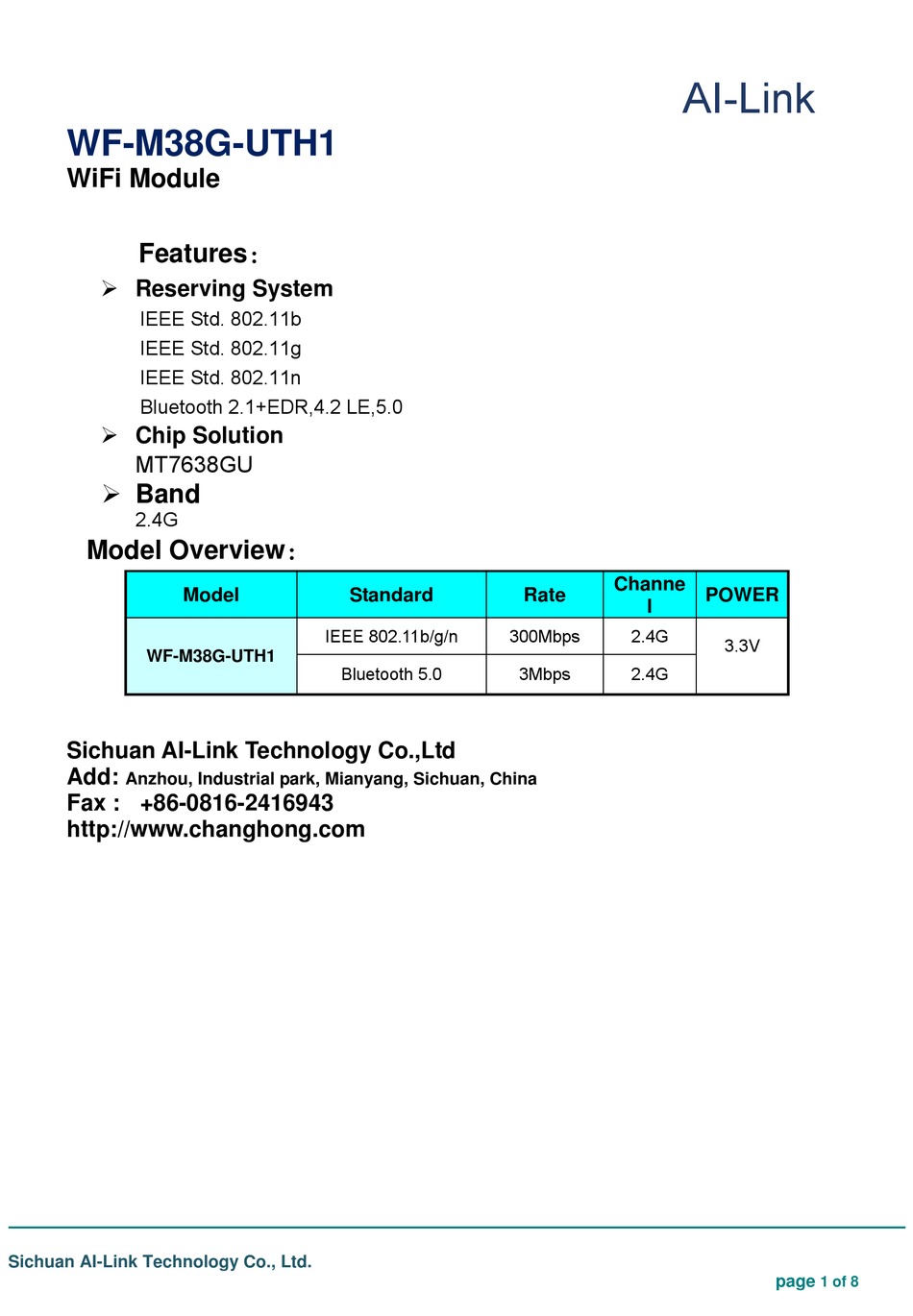

WF-M38G-UTH1
WiFi Module
Features：
Reserving System
IEEE Std. 802.11b
IEEE Std. 802.11g
IEEE Std. 802.11n
Bluetooth 2.1+EDR,4.2 LE,5.0
Chip Solution
MT7638GU
Band
2.4G
Model Overview：
WF-M38G-UTH1
Sichuan AI-Link Technology Co.,Ltd
Add:
Anzhou, Industrial park, Mianyang, Sichuan, China
Fax : +86-0816-2416943
http://www.changhong.com
Sichuan AI-Link Technology Co., Ltd.
Model
Standard
IEEE 802.11b/g/n
Bluetooth 5.0
Channe
Rate
l
300Mbps
2.4G
3Mbps
2.4G
AI-Link
POWER
3.3V
page
1 of 8
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AI-Link WF-M38G-UTH1
Summary of Contents for AI-Link WF-M38G-UTH1
- Page 1 Model Overview： Channe Model Standard Rate POWER IEEE 802.11b/g/n 300Mbps 2.4G 3.3V WF-M38G-UTH1 Bluetooth 5.0 3Mbps 2.4G Sichuan AI-Link Technology Co.,Ltd Add: Anzhou, Industrial park, Mianyang, Sichuan, China Fax : +86-0816-2416943 http://www.changhong.com Sichuan AI-Link Technology Co., Ltd. page 1 of 8...
- Page 2 1. Introduction WF-M38G-UTH1 is based on MT7638GU,complied with IEEE 802.11b/g/n dual-band WIFI subsystem and a Bluetooth subsystem.. 1.1 RF module Overview The general HW architecture for the module is shown in Figure 1. This WLAN Module design is based on MTK MT7638GU. It is a highly integrated single-chip MIMO(Multiple In Multiple Out) Wireless LAN (WLAN) USB2.0 network interface controllercomplying with the 802.11n specification.
- Page 3 RX Sensitivity (PER<10%) GFSK: typical -93dBm π/4 DQPSK: typical -93dBm 8DPSK: typical -87dBm -97 dBm(BLE) Channel 2.4GHz：CH1-CH11 Operation 3.3V+/-0.1% Voltage WIFI Power consumption 2.4G gain 2dBi Operation to +70 ℃ ℃ Sichuan AI-Link Technology Co., Ltd. page 3 of 8...
- Page 4 Typical Dimension (W x L x T): 30.0mmx 45.0mm x 4.15mm PCB Thickness: 0.8mm Defintion NOTE BT_WAKE BT_WAKE WIFI_WAKE WIFI_WAKE RESET RESET USB D+ USB D- 3.3V Power supply 3.3V Power supply Sichuan AI-Link Technology Co., Ltd. page 4 of 8...
- Page 5 7、Statement： A、CE Statement Herby, Sichuan AI-Link Technology Co., Ltd. declares that this WiFi Module，WF-M68A-UWF1 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. In accordance with Article 10(2) and Article 10(10), this product allowed to be used in all EU member states.
- Page 6 «Contient un module d'émission », du mot « IC: 23460-WFM38GUTH1 » ou d'une formulation similaire exprimant le même sens, comme suit The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with Sichuan AI-Link Technology Co., Ltd. page 6 of 8...
- Page 7 Cet émetteur ne doit pas être Co-placé ou ne fonctionnant en même temps qu'aucune autre antenne ouémetteur. Cet équipement devrait être installé et actionné avec une distance minimum de 20 centimètres entre le radiateur et votre corps. Sichuan AI-Link Technology Co., Ltd. page 7 of 8...
