WF-R12B-UWD1
Features：
Supported WLAN Standard
IEEE Std. 802.11a
IEEE Std. 802.11b
IEEE Std. 802.11g
IEEE Std. 802.11n
IEEE Std. 802.11ac
Chip Solution
RealtekRTL8812BU-VR
Size
47.0mm x 30.0mm x 6.0mm
Interface
USB
Sichuan AI-Link Technology Co.,Ltd.
Add:
Anzhou,Industrial park,Mianyang,Sichuan
Tel: +86-13881190925
:
Assemble
Band
SMD
2.4G/5G
Antenna
Power supply
external
3.3V
antenna
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AI-Link WF-R12B-UWD1
Summary of Contents for AI-Link WF-R12B-UWD1
- Page 1 IEEE Std. 802.11b IEEE Std. 802.11g IEEE Std. 802.11n IEEE Std. 802.11ac Chip Solution RealtekRTL8812BU-VR Size 47.0mm x 30.0mm x 6.0mm Interface Assemble Band Antenna Power supply external 2.4G/5G 3.3V antenna Sichuan AI-Link Technology Co.,Ltd. Add: Anzhou,Industrial park,Mianyang,Sichuan Tel: +86-13881190925...
- Page 2 We accept the specification after Confirmed Customer name Customer signature Confirmation Date Please feed back this paper and first paper after your signature by the address,thanks! ADD： Anzhou,Industrial park,Mianyang,Sichuan Factory： Sichuan AI-Link Technology Co.,Ltd. Approved Checked Product WiFi Module Designed...
- Page 3 WF-R12B-UWD1 IEEE 802.11a/b/g/n/ac 2T2R USB WIFI Module Record of Modification Date Main content of modification Confirm Version V1.0 2020/02/09 first edition QinDaKai Sichuan AI-Link Technology Co.,Ltd. page 3 of 14...
- Page 4 IEEE 802.11a/b/g/n/ac 2T2R USB WIFI Module 1. Introduction WF-R12B-UWD1 module design is based on Realtek RTL8812BU-VR solution, The RTL8812BU-VR is a highly integrated single chip which has built in a 2x2 dual-band wireless LAN radio. The Module is a highly integrated MAC/BBP and 2.4/5GHz PA/LNA single chip which supports a 866.7Mbps PHY rate.
- Page 5 Form factor 10pins Host Interface USB 2.0 PCB Stack 4-layers design Dimension Typical，47.0mm x 30.0mm Antenna External Antennas Design 0℃ to +60℃ Operation Temperature -25℃ to +85℃ Storage Temperature Operation Voltage 3.3V +/-10% Sichuan AI-Link Technology Co.,Ltd. page 5 of 14...
-
Page 6: Mechanical Specification
The electrical circuit design, layout, components used, internal wiring and functions were identical for all the above models, with only the model WF-R12B-UWD1 and WF-R12B-UWD2 difference on the connector part and model No., WF-R12B-UWD2 and WF-R12B-UWD3 difference on overall dimension and model No. -

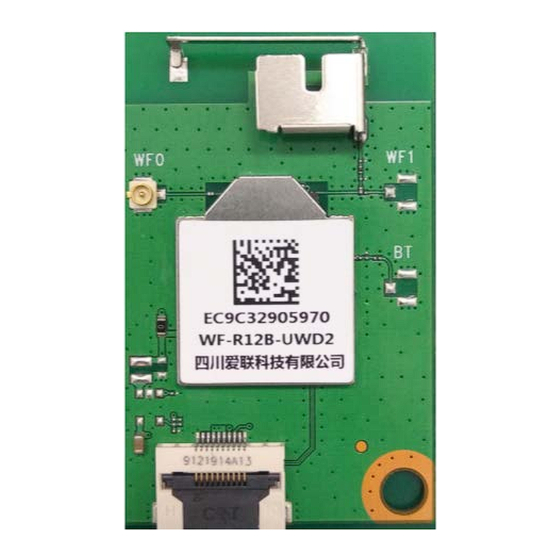

Page 7: Product Picture
WF-R12B-UWD1 IEEE 802.11a/b/g/n/ac 2T2R USB WIFI Module Product Picture TOP VIEW BOTTOM VIEW Note: the BT seat in the red box is for future upgrade of the sample. Sichuan AI-Link Technology Co.,Ltd. page 7 of 14... -
Page 8: Electrical Specification
7) 48Mbps (PER ≦10%) 8) 54Mbps (PER ≦10%) 6. Maximum Input Level (PER ≦10%) 1) IEEE802.11g 2) IEEE802.11a ※Total Max. Power = WLAN0 Max. Power + WLAN1 Max. Power + 3dBm Tolerance: +/-2dBm Sichuan AI-Link Technology Co.,Ltd. page 8 of 14... - Page 9 2) 2Mbps (FER ≦8%) 3) 5.5Mbps (FER ≦8%) 4) 11Mbps (FER ≦8%) 6. Maximum Input Level (FER ≦8%) ※Total Max. Power = WLAN0 Max. Power + WLAN1 Max. Power + 3dBm Tolerance: +/-2dBm Sichuan AI-Link Technology Co.,Ltd. page 9 of 14...
- Page 10 8) MCS7 (PER ≦10%) 6. Maximum Input Level (PER ≦10%) 1) IEEE802.11n HT20 @ 2.4G 2) IEEE802.11n HT20 @ 5G ※Total Max. Power = WLAN0 Max. Power + WLAN1 Max. Power + 3dBm Tolerance: +/-2dBm Sichuan AI-Link Technology Co.,Ltd. page 10 of 14...
- Page 11 8) MCS7 (PER ≦10%) 6. Maximum Input Level(PER ≦10%) 1) IEEE802.11n HT20 @ 2.4G 2) IEEE802.11n HT20 @ 5G ※Total Max. Power = WLAN0 Max. Power + WLAN1 Max. Power + 3dBm Tolerance: +/-2dBm Sichuan AI-Link Technology Co.,Ltd. page 11 of 14...
- Page 12 8) MCS7 (PER ≦10%) 9) MCS8 (PER ≦10%) 10) MCS9 (PER ≦10%) 6. Maximum Input Level(PER ≦10%) ※Total Max. Power = WLAN0 Max. Power + WLAN1 Max. Power + 3dBm Tolerance: +/-2dBm Sichuan AI-Link Technology Co.,Ltd. page 12 of 14...
-
Page 13: Wireless Specification
802.11a/n(HT20)/ac(HT20) 5745-5825 UNII Band III 802.11n(HT40)/ac(HT40) 5755-5795 802.11ac(HT80) 5775 Bandwidth: 20MHz, 40MHz, 80MHz Max Conducted Power: 14.96dBm Peak Spectrum Density: 5.84dBm Spurious Emission: See test report DFS Function: Slave without radar detection Sichuan AI-Link Technology Co.,Ltd. page 13 of 14... -
Page 14: Software Requirements
The driver supports the following operating systems: Linux, Microsoft Windows XP, Vista and Win7. Mfg. software tool is MP_Kit_RTL11ac_8822BU_USB_v0.57_20170322(BETA). WF-R12B-UWD1 module has a 32-bit RISC MCU that handles Wi-Fi, and an ARM Cortex-R4 MCU that could offload data frame processing in Wi-Fi host driver. -
Page 15: Packaging Information
产品数量每层 25 只，250 只/箱 Product quantity 25, 250 / box per floor ; D) 外箱尺寸：240mm*385mm*140mm Box size: 240mm * 385mm * 140mm; E) 其它未尽事宜按照客户包装要求执行 Other outstanding matters performed according to customer packaging requirements. Sichuan AI-Link Technology Co.,Ltd. page 15 of 14... -
Page 16: Fcc Statement
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. 5G band I (5150-5350MHz) indoor use only. Sichuan AI-Link Technology Co.,Ltd. page 16 of 14... -
Page 17: Federal Communication Commission Interference Statement
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 10.Conditions of use Please keep the antenna away from metal and horn interference sources. Sichuan AI-Link Technology Co.,Ltd. page 17 of 14... -
Page 18: Antenna Specification
Ant2: 4.94dBi The main difference between antennas is the cable length of the antennas. The antenna is installed in the plastic shell or metal shell of the host along with the module. Sichuan AI-Link Technology Co.,Ltd. page 18 of 14... - Page 19 WF-R12B-UWD1 IEEE 802.11a/b/g/n/ac 2T2R USB WIFI Module 12. Product label, label location As shown in the figure below： Sichuan AI-Link Technology Co.,Ltd. page 19 of 14...
