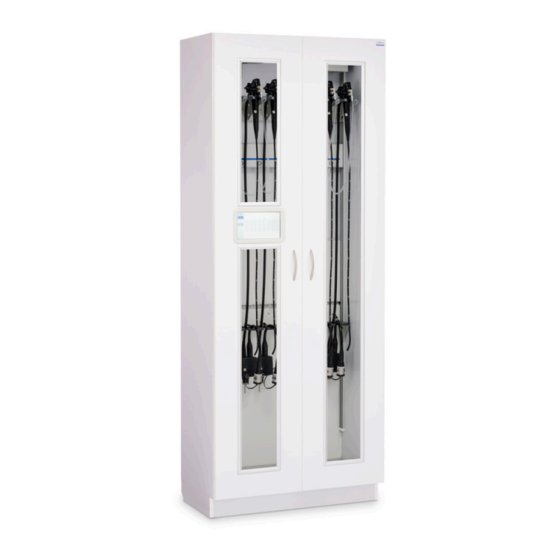

Ventaire
and Tracking Cabinet
Start-Up Guide
Quick link to Ventaire Scope Drying and Tracking Cabinet User Manual
Scope Drying
TM
This Start-up Guide walks
you through the basic
operation of your Ventaire
scope drying and tracking
cabinet. We recommend
you read the Ventaire Scope
Drying and Tracking Cabinet
User Manual to ensure
accurate and safe operation
of the Ventaire system.
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Solaire Medical Inner Space Ventaire
Summary of Contents for Solaire Medical Inner Space Ventaire
- Page 1 Ventaire Scope Drying and Tracking Cabinet Start-Up Guide This Start-up Guide walks you through the basic operation of your Ventaire scope drying and tracking cabinet. We recommend you read the Ventaire Scope Drying and Tracking Cabinet User Manual to ensure accurate and safe operation of the Ventaire system.
- Page 2 Settings Your cabinet is preconfigured with default settings for drying, venting, and scope expiration durations and prepopulated check-in and check-out fields. To change or customize any of these settings and fields, select Settings and enter in the administrator PIN. To change PIN: Select Settings and enter default administrator PIN: 0001 Scroll to Change PIN Enter new PIN...
- Page 3 Attaching connector kit to scope Connector kits are designed to work with different scopes. Below are general instructions of how to attach connector to a scope and the Ventaire system. For instructions specific to your connector kit, visit innerspacehealthcare.com/Ventaire. 1. Begin by placing the scope on an open scope manager 2.
- Page 4 4. If your scope has a water jet port, attach luer coupler or plug to manifold auxiliary water tube, and then attach into water jet port on scope by screwing or inserting it into port Attach the water jet connector onto the water jet port on the scope 5.
- Page 5 Check in scope Select Status Select + to assign slot you’ve attached scope in Enter scope serial number Select Next Enter name Select Review. Review information Select Confirm Check scope connections Select Start Drying Cycle...
- Page 6 Check out scope Select active slot Select Check Out Select your name from list or enter name if new to system Select Review. Review information Select Confirm...
- Page 7 Remove scope from cabinet Disconnect connector from scope Remove connector from manifold tube For scopes with a water jet port, remove luer coupler or plug from water jet port on scope, and then remove from manifold auxiliary water tube Remove biopsy valve cover or plug from scope Throw out connector and all connector parts Lift scope off scope manager...
- Page 8 Marne, Michigan 49435 888-435-2256 phone 616-743-5944 fax innerspacehealthcare.com © 2021 Solaire Medical, Marne, MI 49435 ® InnerSpace is a registered trademark of Solaire Medical LLC, Marne, MI 49435 ™ Ventaire is a trademark of Solaire Medical LLC, Marne, MI 49435 1221...
