Hillsdale Furniture 5758-826 Quick Start Manual

Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure that all
components are in proper position, tight and free from damage. Keep this assembly instruction for future reference. Adult assembly is required.
The product of Hillsdale Furniture, LLC is designed for residential use only. Customer Service Phone Number: 502-562-0000

HARDWARE LIST

A (4) Ø1/4" x 45mm Long Allen Bolts
B (8) Ø1/4" x 35mm Medium Allen Bolts
C (8) Ø1/4" x 25mm Short Allen Bolts
D (20) Ø1/4" x 10mm Spring Washers
E (20) Ø1/4" x 16mm Flat Washers
F (1) 4mm Allen Wrench

PARTS LIST

G (1) Back
H (1) Seat
I (1) Seat Base
J (1) Support Ring
K (4) Legs
K
J

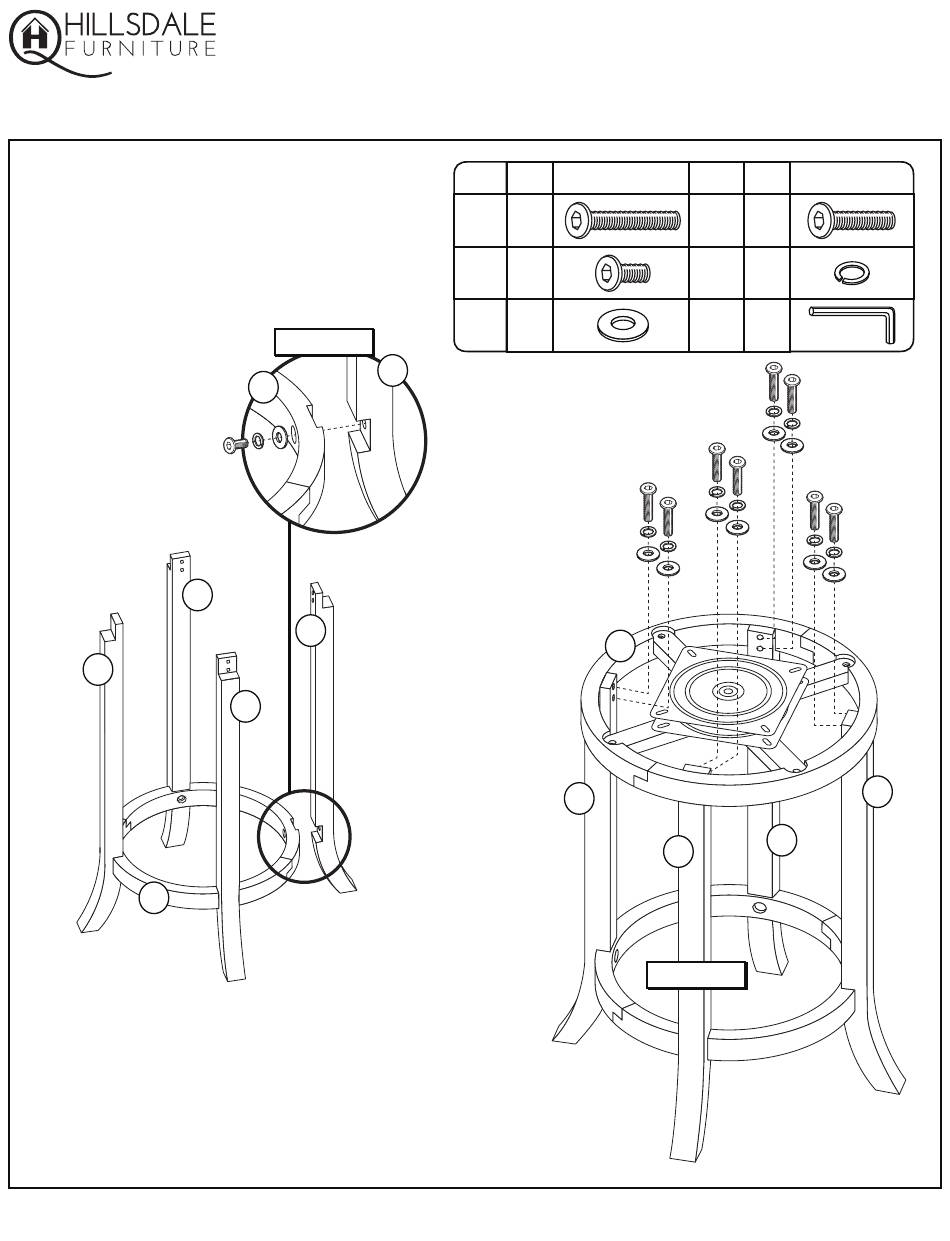

STEP 1 - Figure 1

Begin assembly by attaching Legs (K) to Support Ring (J)
using 1 Short Allen Bolt (C), 1 Spring Washer (D) and 1 Flat
Washer (E) per leg.

STEP 2 - Figure 2

Next attach Seat Base (I) to Legs (K) using 2 Medium Allen Bolts (B),
2 Spring Washers (D) and 2 Flat Washers (E) per leg.
CARE & MAINTENANCE: The touch of a soft cloth is all the maintenance the finish will ever need. Please do not use harsh or abrasive cleaners for polishing,
as they may cause damage to the finish. Periodic checks are recommended to make sure that all hardware is securely tightened.

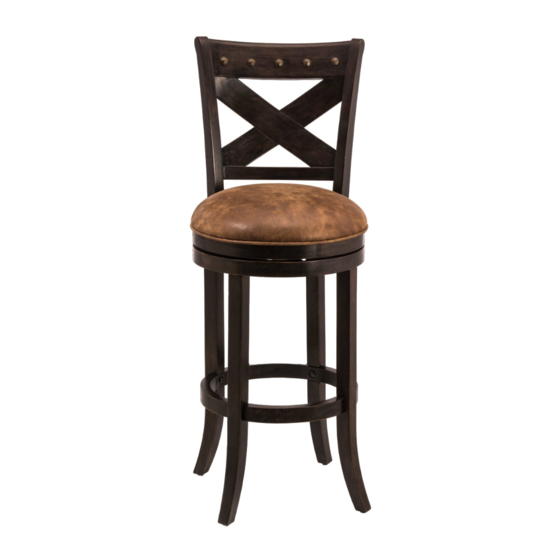

BRANTLEY X-BACK WOOD SWIVEL STOOL
FIGURE 1
J
C C D D E E
K
K
K
Model #5758-826 Counter Stool
Model #5758-830 Barstool
PART QTY
A 4
C 8
E 20
K
HARDWARE PART QTY
B
D
F
B B
B B
D D
D D
E E
I
K
K
FIGURE 2
Date: 06-24-2015
Page 1 of 2
HDFBP
HARDWARE
8
20
1
B B
D D
E E
B B
E E
D D
E E
K
K
