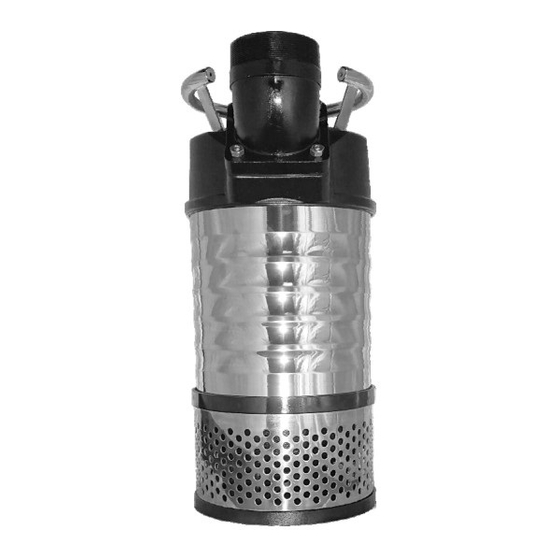

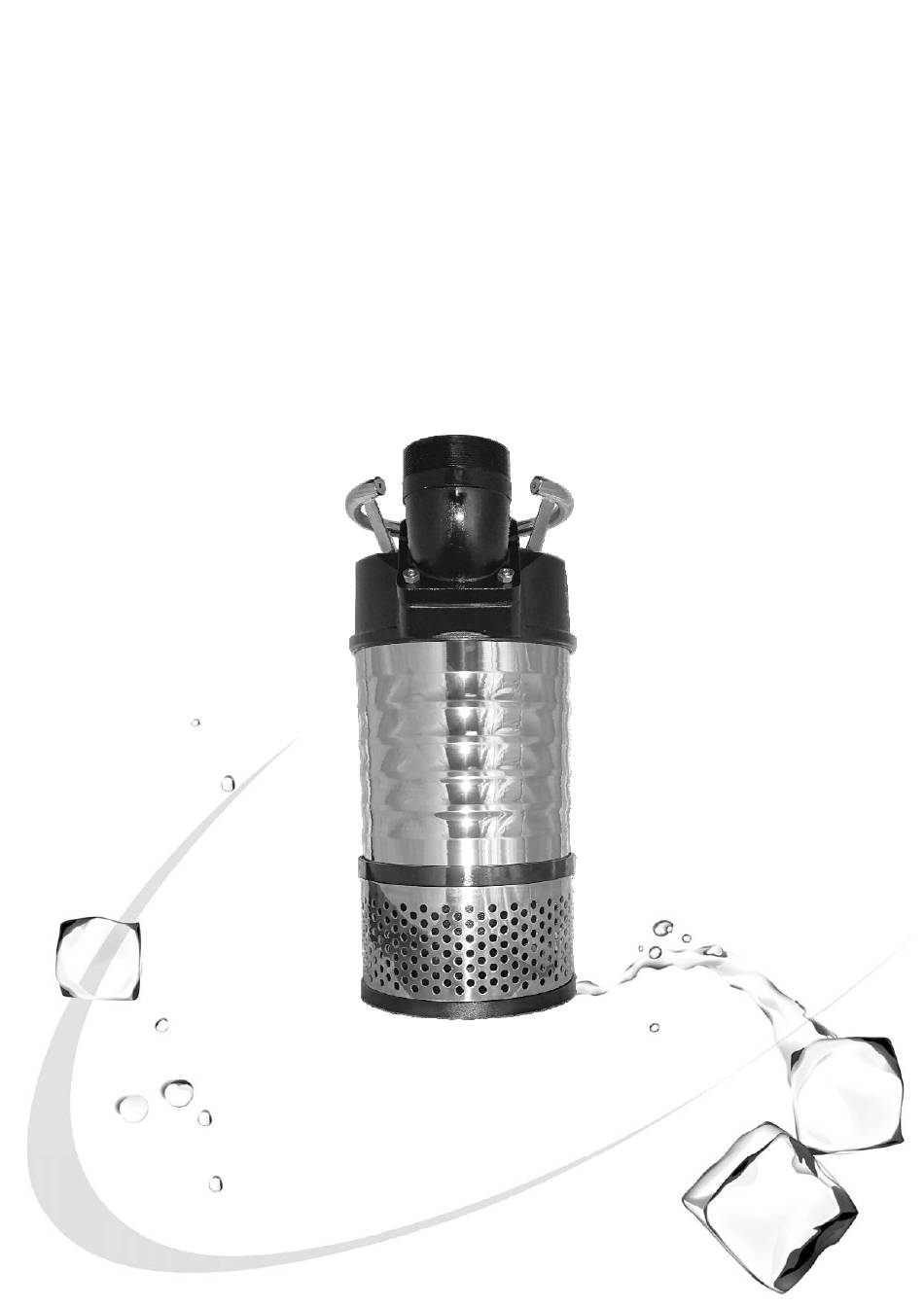

- Page 1 SSDM-10HP Series Installation and operation manual...
-
Page 3: Table Of Contents
INDEX Operation………………..…………..PAGE. 7 Introduction………………..PAGE. 3 Maintenance…………………..…….PAGE. 7 Nameplate format…….…..PAGE. 3 Construction…………………………PAGE. 8 Prior to Operation…….…..PAGE. 4 Troubleshooting……………………..PAGE.14 Installation…………...…….PAGE. 5 Disassembly and Assembly………..PAGE. 15 Electrical Wiring……..…….PAGE. 6 Introduction Thank you for selecting the SSDM construction dewatering pump. This instruction manual explains the product operations and gives important precautions regarding its safe use. -
Page 4: Prior To Operation
Prior to Operation Check the following points upon receipt of your pump: Is the pump exactly what you ordered? Please confirm by checking nameplate. It is especially impor- tant that you check whether the pump is to be used with 50 or 60 Hz. Has any damage occurred during shipment? Are any bolts or nuts loose? Have all necessary accessories been supplied? (For a list of standard accessories please see Con- struction page.8) -
Page 5: Installation
Installation 1. Check the following before beginning installation. Insulation resistance measurement: With the motor and cable (excluding the power supply cable) immersed in water, use a Megger to measure the insulation resistance between ground and each phase of the motor, and again be- tween each phase of the motor. -
Page 6: Electrical Wiring
Electrical Wiring 1.Wiring A) Wire as indicated for the appropriate start system as shown in Fig-1 for three phase. B) Loose connections will stop the pump. Make sure all electrical connections secure. 2.Cable WARNING : Never let the end of the cable contact water. A) If the cable is extended, do not immerse the splice in water. -
Page 7: Operation
Operation Before starting the pump 1). After completing installation, measure the insulation resistance again as described in installation. 2). Check water level. If the pump is operated continuously for an extended period of time in a dry condition or at the low- est water level, the motor protector will be activated. -
Page 8: Construction
Construction SSDM 10HP... - Page 9 Name Material Name Material Discharge A356 Stator Upper: CA/CE Upper Cover A356 Mechanical Seal Lower: SIC/SIC Motor Cover A356 Oil Seal Lower Bearing Bracket EN-GJL-200 Shaft Sleeve SUS304 Pump Casing EN-GJL-200 SUS304 Impeller High Chrome Steel Insulation Sheet Bakelite Suction Plate EN-GJS-700 Cable Clamp SUS304/NBR...
-
Page 10: Troubleshooting
Troubleshooting Trouble Cause Remedy (1) Power failure (1)~(3) Contact electric power company and Does not start. devise counter-measures Starts, but imme- (2) Large discrepancy between power source and voltage diately stops. (3) Significant drop in voltage (4) Motor phase malfunction (4) Inspect electric circuit (5) Electric circuit connection faulty (5) Correct wiring... -
Page 11: Disassembly And Assembly
Disassembly and Assembly 1. Disassembly- When disassembling pump, have a piece of cardboard or wooden board ready to place the different parts on as you work. Do not pile parts on top of each other. They should be laid out neatly in rows. - Page 12 Vol.PMSSDM10‐19101...
