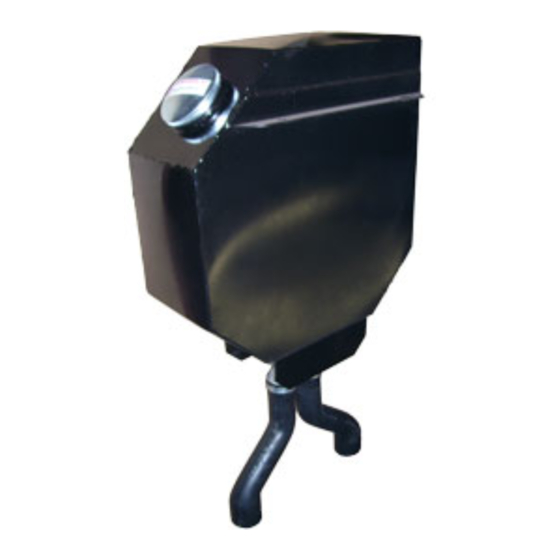

- Page 1 ELSTON Traction Sanders Owners Manual for Truck Sanders Please Contact Us for Parts and Service: Another Quality Product of: ELSTON MANUFACTURING INC. 706 N Weber Sioux Falls, SD 57103 Revision D www.elstonmfg.com Updated 2014 1-800-845-1385...
-
Page 3: Table Of Contents
Table of Contents Introduction to Elston Traction Sanders for Trucks................2 Overview ........................... 2 Specifications ..........................2 Specifications: S-N661: 6” Sander .................. 2 Specifications: S-N861: 8” Sander .................. 2 Specifications: S-N100: Quarterfender Sander ..............2 Grit Recommendations ......................3 Service Instructions ..........................6 At the Start of Each Trip ...................... -
Page 4: Introduction To Elston Traction Sanders For Trucks
Mounting kits are available for all 3 styles. Please inquire at elstonmfg.com or toll free at 1-800-845- 1385 at availability and pricing for these mounting kits. Specifications Specifications: S-N661: 6” Sander Dimensions .......... 6 in wide x 20 in long x 36.5 in tall Shipping Weight ............ -
Page 5: Grit Recommendations
Introduction to Elston Traction Sanders for Trucks Grit Recommendations One of the most common questions on the traction sanders is the type of grit that should be used. We recommend that the grit used in the sanders meet the requirements below for the most reliable performance of the unit. - Page 6 Introduction to Elston Traction Sanders for Trucks Coal, Iron and Copper Slag Copper, iron, and coal slag are materials that are used for blasting abrasives and have be found to work as sander material as long as they are not too fine or have too much fine material. Avoid mixes with material finer than #20.
- Page 7 Introduction to Elston Traction Sanders for Trucks Sand Most sand will not work if it is wet or has too much fine material. Sand with excessive fines will quickly become too firmly packed to flow out of the sander although it may appear to work fine when first added to the sander.
-
Page 8: Service Instructions
Service Instructions Service Instructions Thank you for purchasing a set of Traction Sanders from Elston Manufacturing. We are confident this product will provide you with years of service. At the Start of Each Trip Check the exterior of the sander for damage ... -
Page 9: Installation
Installation Installation Improper installation of this sander creates a substantial safety hazard including the risk of accident or property damage. Overview The Elston Traction Sanders you are about to install are designed to provide many years of service. As you install these sanders, pay special attention to preventing corrosion and keeping moisture out of electrical connections and components as these are the two primary issues that limit the life of the sander. -
Page 10: Installation Of The Sanders Tanks
S-N661 or S-N861. (Tanks with a level sensor should always be installed so that the level sensor is on the side of the sander opposite the tire to prevent damage to the wiring.) - Page 11 We provide mounting brackets for the traction sanders. These are: The S10-02 mounting kit for S-N100 Quarterfender sanders The S5-100 mounting kit for S-N661 and S-N861 sanders Otherwise, the traction sanders can be installed using square tubing, angle brackets, or any other robust configuration to securely fasten the sanders to the truck frame.
- Page 12 Installation Figure 5 shows an S-N100 sander installed with the S10-02 mounting kit. The tires side of the sander is hung from 2” x 2” square tube (part # S10-02-01) as indicated by A. The other side of the sander is hung from an angle bracket (part # S10-02-03) as indicated by C.
-
Page 13: Wiring
Installation Wiring Please refer to the appendix for the wiring diagram for the sander. Unless otherwise indicated on the sander, all sanders contain 12 volt coils. It is not necessary to wire the unit to receive power when the vehicle is off. Do not wire any other components, such as the level indicator, so that they turn on and off when the sander switch is operated as the voltage spike produced when turning off the solenoids will damage most electronic components. -
Page 14: Troubleshooting
Troubleshooting If this guide doesn’t fix your problem please contact the company where you purchased the sander. If you are unable to contact them or you need additional help, please contact Elston Manufacturing at: 1-800-845-1385. What is wrong with the sander? A. -
Page 15: Problem B: Fuse Supplying Power To The Unit Is Repeatedly Blown
Troubleshooting was a poor seal of the gasket, install a bead of silicon between the guard and the tank once the operating unit is installed to provide an additional barrier to moisture. Refill the sander with a grit recommended in chapter 1. - Page 17 Operating Unit Area see page A6 1-14 (x2) Set of Series 661 S-N661 (includes gaskets) Sanders Hardware 5/16”-18 x 1 1/4” Serrated Hex Flange Bolt see page A3 for additional parts Add a C to the SN661T and S-N661 for custom colors.
-
Page 18: S-N861: A2
Parts List for Traction Sanders 861 Series Sander Assembly Ref # Name Part # Ref # Name Part # Powder Coated Steel SN861T Serial Number Decal Sander Tank (Inside Casting) Tank Cap w/ Retaining S4-53-04 Elston Logo Decal SD-03 Lanyard Grit Decal SD-04 Powder Coated Steel... - Page 19 Parts List for Traction Sanders Additional Parts for Sander Assembly Ref # Name Part # Ref # Name Part # 6 ft flexible nonmetallic S150-10 Fuse Holder w/20A Fuse SE-11 conduit 30ft 12 ga. Wire - Black SE-12 Straight thru watertight S150-14 (x3) Switch - Truck Style S40135...
-
Page 20: S-N100: A4
Parts List for Traction Sanders Quarterfender Sander Assembly Left Hand Sander Right Hand Sander Ref # Name Part # Ref # Name Part # Serial Number Left Hand Sander Tank (inside casting) Powder Coated Steel S-N100TL Elston Logo Decal SD-03 Right Hand Sander Tank Powder Coated Steel S-N100TR... - Page 21 Parts List for Traction Sanders Additional Parts for Sander Assembly Ref # Name Part # Ref # Name Part # Straight Conduit Junction S150-11 Fuse Holder w/20A Fuse SE-11 6 ft flexible nonmetallic S150-10 30ft 12 ga. Wire - Black SE-12 conduit Switch - Truck Style...
- Page 22 Parts List for Traction Sanders Operating Unit Ref # Name Part # Ref # Name Part # Cone Assembly S15-85 Valve Body S40059 Bellows S161-2 Gasket - Valve Body S16-88 (one installed above SP-02 guard Armature S197-6 and one installed below) Compression Spring S24-62 Solenoid &...
- Page 23 Truck Sander Wiring Diagram Power from Dash Backlighting 12 VDC 20A Fuse S40135 Momentary On Switch (optional indicator shown) 12 ga typical Size for less than 10% Ground total voltage drop with 6A draw per sander Junction Junction Black Black Black Black S40085-501...
- Page 25 Elston Manufacturing Inc. or an authorized service center freight paid by buyer. After confirmation by Elston Manufacturing, Inc. that a defect does exist in the product that is covered under this Limited Warranty then Elston Manufacturing, Inc. shall, in its sole and absolute discretion, either repair, modify or replace the product(s) and return the product(s) to the owner freight paid by Elston Manufacturing, Inc.
- Page 26 ELSTON MANUFACTURING INC. 706 N Weber Sioux Falls, SD 57103 www.elstonmfg.com 1-800-845-1385...
