TREADMILL OWNER'S MANUAL

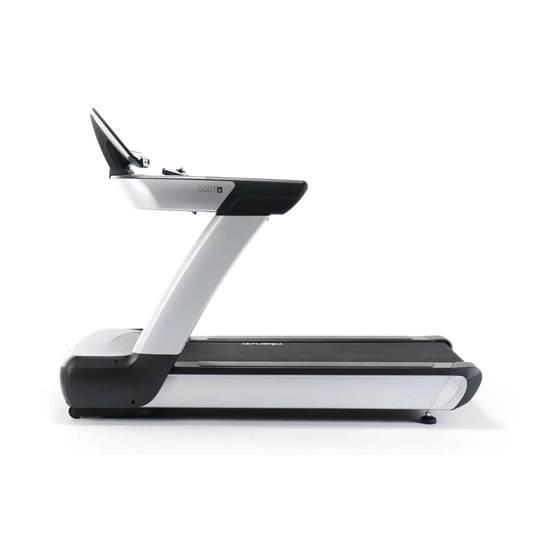

INTENZA TREADMILL 550 Te2/ 550 Ti/ 450 Ti2/ 450 Ti2S/ 450 Ti2H

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 550 Te2 and is the answer not in the manual?

Questions and answers

Related Manuals for Intenza 550 Te2

Summary of Contents for Intenza 550 Te2

  • Page 1 TREADMILL OWNER’S MANUAL INTENZA TREADMILL 550 Te2/ 550 Ti/ 450 Ti2/ 450 Ti2S/ 450 Ti2H...
  • Page 2 CONTENTS Treadmills Owner’s Manual Intenza Treadmills Manual_____Contents...

  • Page 3: Important Safety Instructions

    Do not use excessive pressure on console control keys. They are precision set to function properly with gentle finger pressure. If you feel the buttons are not functioning properly with normal pressure contact your Dealer/ Distributor. Intenza Treadmills Manual_____Important Safety Instructions And Precautions...

  • Page 4: Grounding Instructions

    Do not modify the plug provided with the product. If it does not fit the outlet, have a proper outlet installed by a qualified electrician. Intenza Treadmills Manual_____Important Safety Instructions And Precautions...
  • Page 5 The handrails may be held to enhance stability as needed, but are not for continuous use. Stop the equipment by pressing STOP button. Step backwards and ensure to grab handlebars on both sides. It is recommended that users attach the safety key. Intenza Treadmills Manual_____Important Safety Instructions And Precautions...
  • Page 6 Open the shipping carton. Remove all parts from the carton and cardboard inserts. Before you begin assembly, verify that the following hardware items are packed with the equipment. A 6mm hex wrench is required to assemble the Treadmill. 1. ENTERTAINMENT CONSOLE FOR 550 Te2 2. CONSOLE BRIDGE ASSEMBLY 3.
  • Page 7 Insert the TV coax cable, ETHERNET cable, HDMI Flat washer, white (5), Washer, star (7), Dome screw M8 x 15L (8), through the upright post and ensure that the wires do not Hex wrench, 6mm fall inside the post. Intenza Treadmills Manual_____Intenza 550 Te2 Assembly Instructions...
  • Page 8 When connecting the TV coax cable, be sure to tighten the connectors, Be sure to push any excess wires inside the right and left upright posts. then push the jacket cover over the connectors. Intenza Treadmills Manual_____Intenza 550 Te2 Assembly Instructions...
  • Page 9 When connecting TV coax cable, be sure to tighten the connector, then push jacket cover over connector. Please refer to step 7. Intenza Treadmills Manual_____Intenza 550 Te2 Assembly Instructions...
  • Page 10 8. DOME SCREW, WHITE, M8 X 15L QTY 14 QTY 2 QTY 16 QTY 14 10. INTERACTIVE CONSOLE FOR 450 Ti2 11. INTERACTIVE CONSOLE FOR 450 Ti2S/ Ti2H 9. M8 X 95L, BLACK QTY 1 QTY 1 QTY 2 Intenza Treadmills Manual_____Intenza Treadmills Parts List...
  • Page 11 Flat washer, white (5), Washer, star (7), Dome screw M8 x 15L (8), Ensure the 2 electrical connectors at the top of the left upright post Hex wrench, 6mm are well—connected before proceeding. Intenza Treadmills Manual_____Intenza 550Ti/ 450Ti2/ 450Ti2S/ 450Ti2H Assembly Instructions...
  • Page 12 Ensure the 4 electrical connectors at the bottom of the console are Flat washer, white (5), Washer, star (7), Dome screw M8 x 15L (8), well—connected before proceeding. Hex wrench, 6mm Intenza Treadmills Manual_____Intenza 550Ti/ 450Ti2/ 450Ti2S/ 450Ti2H Assembly Instructions...
  • Page 13 STEP 9 INSTALLING THE 550Ti AND 450Ti2/ Ti2S/ Ti2H INTERACTIVE CONSOLE: SECURE THE CONSOLE. COMPONENTS AND TOOLS Flat washer, black (6), Washer, star (7), M8 x 95L (9), Hex wrench, 6mm Intenza Treadmills Manual_____Intenza 550Ti/ 450Ti2/ 450Ti2S/ 450Ti2H Assembly Instructions...

  • Page 14: Training Area

    260cm/100inches 160cm/64inches How To Stabilise The Intenza Treadmills After placing the unit where it will be used, please check its stability. If the slightest rocking motion is detected, or if the unit is not stable, determine immediately which stabilising leg is not resting on the floor. To adjust, turn stabilising leg A or B until the rocking motion ceases and both stabilising legs are resting firmly on the floor.

  • Page 15: Checking The Belt

    Checking The Belt After the Intenza Treadmill has been installed and stabilised, the belt must be checked to confirm proper tracking. Firstly, ensure the power cord is plugged into a suitable outlet then turn on the treadmill. Stand on the treadmill side landings and straddle the belt.
  • Page 16 Use this mode to minimise power consumption Allows facility operators to offer members swipe English), Finnish, French, German, Hungarian, when 550 Te2 is not in use. Press button to put facility identification card on the console Japanese, Korean, Persian, Polish, Portuguese,...
  • Page 17 USB PORT Russian, Spanish, Simplified Chinese, Traditional workout. Chinese, Turkish, Lithuanian, Italian, Danish. Press to “wake up” the 550 Te2 Allows for data download 21 languages are offered READING AND TABLET RACK HOME SCREEN LOGIN Built—in holder used for personal devices, books...
  • Page 18 0.8 km/ h—20 km/ h for 550Ti, and 0.8km/ h—25 km/ h (0.5 mph—16 mph) Increment is at 0.1 km/ h and can be adjusted by using the stick shift during the workout. Intenza Treadmills Manual_____550 Ti Interactive Console Overview...

  • Page 19: How To Effectively Workout At Your Own Level

    Training in this zone will only be possible for a short period. It effectively trains your fast twitch muscle fibres and helps to develop speed. This zone is reserved for interval running and only the very fit are able to train effectively within this zone. Intenza Treadmills Manual_____How To Effectively Workout At Your Own Level...
  • Page 20 Offer a fun and challenging workout option. Users can compete against, or with, previous champions Offers 4 Heart Rate Control workout options. HRC workout program allow users to program their target heart rate zone Intenza Treadmills Manual_____450 Ti2 Interactive Console Overview...
  • Page 21 Spanish, Swedish. 7 languages are offered. Ratio of work metabolic rate to the resting To change language setting we advise that you metabolic rate contact your local Intenza Distributor or Dealer. PACE How fast a specific distance is covered DISTANCE...
  • Page 22 Spanish, Swedish. 7 languages are offered. Ratio of work metabolic rate to the resting To change language setting we advise that you metabolic rate contact your local Intenza Distributor or Dealer. PACE How fast a specific distance is covered DISTANCE...
  • Page 23 Pause time is set for 3 minutes. The display will count down from 3 minutes. When stop button is pressed, it will go into pause mode. If the Intenza Treadmill is not resumed from pause, treadmill will return to Homepage.

  • Page 24: Running Surface

    Stop the equipment by pressing STOP button When you are in a stable position, begin walking, then slowly Step backwards and be sure to grab onto handlebars on both sides increase the speed RUNNING SURFACE 1550mm/61inches 560mm/22inches Intenza Treadmills Manual_____Begin The Workout...

  • Page 25: Preventative Maintenance Tips

    Inspect and vacuum the area directly surrounding and under the unit regularly to keep debris from accumulating. Check that the Intenza Treadmill is well—leveled. Intenza Treadmills feet should be leveled to the floor, and should not “wobble” when in use. If not level, please re—level the equipment. Intenza Treadmills Manual_____Maintenance...

  • Page 26: How To Align The Running Belt

    During running or walking, the left and right foot may exert different force to the running belt. This will cause the running belt to run “off—centred”. Intenza Treadmills are designed, and built, to ensure proper belt tracking that will automatically “re—centre”. Occasionally, the belt may need further adjustment to keep it centred.

  • Page 27: How To Tension The Running Belt

    Place 4 pieces of tape, 1,000mm apart, on both edges of the running belt. Tighten the tensioning bolts until the distance between the tapes are increased to 1,005mm (39.75 inches). Try the treadmill again to check for slipping. 1,000mm 1,005mm 1,000mm 1,005mm Intenza Treadmills Manual_____Maintenance_____How To Tension The Running Belt...

  • Page 28: Self-Diagnosis

    In order to test the function and error message, your Service Representative will be required to check accumulated data regarding past usage of the Intenza Treadmills. For these reasons, Intenza Treadmills are equipped with a service mode and can offer a diagnosis report for easy PLEASE NOTE trouble—shooting.

  • Page 29: Error Message

    WHEN OPERATING THE TREADMILL, USERS SHOULD ATTACH THE SAFETY STOP CLIP TO THEIR SHIRT. When the lanyard cord is pulled out from the treadmill, the Intenza Treadmill running belt will automatically slow down to a stop. A message CHECK SAFETY KEY.
  • Page 30 Cable, resistance Wire, connect Cable, PSB.Ivt Breaker, circuit Resistor, electronic, frame Switch, power Upright post, L Wire, connect Upright post, R Wire, connect Frame, main Bracket, HDMI Cushion, deck Intenza Treadmills Manual_____Intenza 550 Te2 Treadmill Exploded Drawing and Parts List...
  • Page 31 88.4 inches LENGTH LENGTH 960 mm 37.8 inches 1,085 mm 42.7 inches WIDTH WIDTH 1,535 mm 60.5 inches 745 mm 29.3 inches HEIGHT HEIGHT WEIGHT 233 kgs 514 lbs WEIGHT 295 kgs 650 lbs Intenza Treadmills Manual_____Intenza 550 Te2 Treadmill Specifications...
  • Page 32 Cable, resistance Wire, connect Cable, PSB.Ivt Breaker, circuit Resistor, electronic, frame Switch, power Upright post, L Wire, connect Upright post, R Wire, connect Frame, main Side landing, L Cushion, deck Intenza Treadmills Manual_____Intenza 550 Ti Treadmill Exploded Drawing and Parts List...
  • Page 33 2,245 mm 88.4 inches WIDTH 960 mm 38 inches WIDTH 1,085 mm 42.7 inches 1,535 mm 60.4 inches 745 mm 29.3 inches HEIGHT HEIGHT 228 kgs 502 lbs 292 kgs 644 lbs WEIGHT WEIGHT Intenza Treadmills Manual_____Intenza 550 Ti Treadmill Specifications...
  • Page 34 Cable, resistance Wire, connect Cable, PSB.Ivt Breaker, circuit Resistor, electronic, frame Switch, power Upright post, L Wire, connect Upright post, R Wire, connect Frame, main Side landing, L Cushion, deck Intenza Treadmills Manual_____Intenza 450 Ti2 Treadmill Exploded Drawing and Parts List...
  • Page 35 88.4 inches LENGTH LENGTH WIDTH 960 mm 38 inches WIDTH 1,085 mm 42.7 inches HEIGHT 1,535 mm 60.4 inches HEIGHT 745 mm 29.3 inches WEIGHT 224.5 kgs 495 lbs WEIGHT 290 kgs 639 lbs Intenza Treadmills Manual_____Intenza 450 Ti2 Treadmill Specifications...
  • Page 36 Cable, resistance Wire, connect Cable, PSB.Ivt Breaker, circuit Resistor, electronic, frame Switch, power Upright post, L Wire, connect Upright post, R Wire, connect Frame, main Side landing, L Cushion, deck Intenza Treadmills Manual_____Intenza 450 Ti2S Treadmill Exploded Drawing and Parts List...
  • Page 37 2,245 mm 88.4 inches WIDTH 960 mm 38 inches WIDTH 1,085 mm 42.7 inches HEIGHT 1,535 mm 60.4 inches HEIGHT 745 mm 29.3 inches 222.5 kgs 491 lbs 288 kgs 635 lbs WEIGHT WEIGHT Intenza Treadmills Manual_____Intenza 450 Ti2S Treadmill Specifications...
  • Page 38 Cable, resistance Wire, connect Cable, PSB.Ivt Breaker, circuit Resistor, electronic, frame Switch, power Upright post, L Wire, connect Upright post, R Wire, connect Frame, main Side landing, L Cushion, deck Intenza Treadmills Manual_____Intenza 450 Ti2H Treadmill Exploded Drawing and Parts List...
  • Page 39 2,245 mm 88.4 inches WIDTH 960 mm 38 inches WIDTH 1,085 mm 42.7 inches 1,535 mm 60.4 inches 745 mm 29.3 inches HEIGHT HEIGHT 222.5 kgs 491 lbs 288 kgs 635 lbs WEIGHT WEIGHT Intenza Treadmills Manual_____Intenza 450 Ti2H Treadmill Specifications...
  • Page 40 DESIGNED, ENGINEERED AND MANUFACTURED IN TAIWAN 2021 HealthStream Taiwan Inc. © No. 28, Jiaotuizai Boulevard, Liuying District, Tainan City 736, Taiwan Printed in Taiwan INTENZAFITNESS.COM...
