- Page 3 We hope you can achieve the product experience that you expect. Intenza 550 series treadmill has been tested and designed to comply with the regulations for Class A digital device and for class S, studio use. This product is in compliance with European Directives, i.e.
-
Page 4: Table Of Contents
EQUIREMENT 550T 550T ............11 TABILIZE NTENZA I AND ..................... 12 HECKING THE ......................12 OWER WITCH HOW TO USE INTENZA 550TI AND 550TE ........13 550T ............13 NTENZA NTERACTIVE ONSOLE VERVIEW 550T ..........15 NTENZA NTERTAINMENT ONSOLE VERVIEW .................. -
Page 5: Important Safety Precautions
IMPORTANT SAFETY PRECAUTIONS Warning Intenza 550 series treadmill is designed for cardio vascular exercise in a commercial environment. Health-related injuries may result from incorrect or excessive use of exercise equipment. Please check with your physician prior to beginning any exercise program. -
Page 6: Treadmill Overview And Assembly
TREADMILL OVERVIEW AND ASSEMBLY 550Ti Overview 550Ti Part List Open the shipping carton. Remove all parts from the carton and card boards inserts. Before you begin the assembly, verify that the following hardware items are packed with the equipment. Please prepare and use a 6 mm hex wrench to assemble the treadmill. -
Page 7: Assembly Instruction- 550Ti
Assembly Instruction- 550Ti STEP 1 Installing the left upright post- connect the two electrical connectors NOTE Ensure the two electrical connectors at the bottom of the left upright post are well-connected before moving to the next step. STEP 2 Installing the left upright post- secure the left upright post TOOL Flat washer, white Washer, star... -
Page 8: Flat Washer, White
STEP 4 Installing the console bridge- connect the two electrical connectors NOTE Ensure the two electrical connectors at the top of the left upright post are well-connected before moving to the next step. STEP 5 Installing the console bridge- position the bridge on the top of the upright post NOTE Ensure you push any excess wires inside the left upright post. -
Page 9: Flat Washer, Black
STEP 7 Installing the console bridge- secure the right side of the console bridge TOOL Flat washer, white Washer, star Dome screw, M8*15L Hex wrench-6mm STEP 8 Installing the 550Ti interactive console- connect the two electrical connectors NOTE Ensure the two electrical connectors at the buttom of the console are well-connected before moving to the next step. - Page 10 550Te Overview 550Te Part List Open the shipping carton. Remove all parts from the carton and card bpards inserts. Before you begin the assembly, verify that the following hardware items are packed with the equipment. Please prepare and use a 6 mm hex wrench to assemble the treadmill.
-
Page 11: Assembly Instruction- 550Te
Assembly Instruction- 550Te STEP 1 Installing the left upright post- connect the two electrical connectors NOTE Ensure the two electrical connectors at the bottom of the left upright post are well-connected before moving to the next step. STEP 2 Installing the left upright post- secure the left upright post TOOL Flat washer, white Washer, star... - Page 12 STEP 4 Installing the right upright post- secure the right upright post TOOL Flat washer, white Washer, star Dome screw, M8*15L Hex wrench-6mm STEP 5 Installing the console bridge- connect the two electrical connectors NOTE Ensure the two electrical connectors at the top of the left upright post are well-connected before moving to the next step.
- Page 13 STEP 7 Installing the console bridge- fix the TV wire connector NOTE When connecting the TV wire, ensure to twist lock the connector, then push the jacket to cover the connector. STEP 8 Installing the console bridge- position the bridge on the top of the upright post NOTE Ensure to push any excess wires inside the right and left upright post.
- Page 14 STEP 10 Installing the console bridge- secure the right side of the console bridge TOOL Flat washer, white Washer, star Dome screw, M8*15L Hex wrench-6mm STEP 11 Installing the 550Te Entertainment console- connect the electrical connectors NOTE 1. Ensure the two electrical connectors and the connector of TV wire at the buttom of the console are well-connected before moving to the next step.
-
Page 15: Setup
Electrical Power Requirement Below is showing the current rating for Intenza 550 series treadmill based on supply voltage. Make sure that the Intenza 550 series treadmill is supported by the proper line voltage for the installation location before plugging into the outlet. -
Page 16: Checking The Belt
Section 6.2 How to Align the Running Belt. Power Switch Located on the front panel at the base of Intenza 550 series treadmill. The On/OFF switch has two position – “I” for ON and “O” for... -
Page 17: How To Use Intenza 550Ti And 550Te
HOW TO USE Intenza 550Ti AND 550Te Operating Intenza 550 series treadmill is very easy. Learning the features and incorporating Intenza 550 series treadmill into your member’s fitness program is just as easy. In this chapter, you will learn the display function and how to get the most workouts from Intenza 550 series treadmill. - Page 18 To Effectively Workout At Your Own Level.) 10. Energy saver: The energy saver mode is used to minimize the power being used from the wall when Intenza 550Ti is not in use. Press this button to put Intenza 550Ti into energy saver mode after ending a workout.
-
Page 19: Intenza 550Te Entertainment Console Overview
1. Energy saver : The energy saver mode is used to minimize the power being used from the wall when Intenza 550Te are not in use. Press this button to put Intenza 550Te into energy saver mode after ending a workout. -
Page 20: How To Operate Multimedia
6. Multimedia Bar In the now playing screen, press Previous skips to the previous song/ video in the list. Previous Press this button can play the selected song/video; while playing, press this button to pause the song/video being played. Play In the now playing screen, press Next to skip to the next song in the list. -
Page 21: Central Control Center Overview
The pause time is set for 3 minutes. The display will count down from 3 minutes. When the STOP button is pressed, it will go to pause mode. If Intenza 550 series treadmill is not resumed from “Pause”, the treadmill will go back to Homepage. -
Page 22: How To Effectively Workout At Your Own Level
NOTE The heart rate function of Intenza 550 series treadmill is intended only for use as an exercise aide. Various factors can affect the accuracy of your heart rate reading. The heart rate function of Intenza 550 series treadmill should not... -
Page 23: How To Personalize Your Workout
How To Personalize Your Workout You can personalize the workout routine via USB. The USB function also gives access to the service technician to download the usage record of Intenza 550 series treadmill to track problem history and upgrade the new version of software. -
Page 24: How To Track Your Workout Record
How To Track Your Workout Record You can easily personalize the workout routine and the workout data to manage your workout record. For tracking the record easily, there are three folders: Custom, Fitness and Workout data. Each folder contains the record of the workout program. - Page 25 4.8.3 Workout Data This folder contains file of workout data from all the programs of Intenza 550 series treadmill. The workout record will be saved automatically every 5 seconds. Meaning of information: 1. Time: unit is five seconds. 2. Calories: the accumulated calories burned during the workout.
-
Page 26: Setting Of 550Ti
(name, age, weight) setting. After using Intenza 550 series treadmill for a period of time, you may want to change some of the basic settings, e.g. distance unit or sound. In Setting mode, it can also detect which version of Intenza 550Ti treadmill controller board. -
Page 27: Workout Options
3. Proceed workout: (1) For Intenza 550Ti, press ENTER or QUICK START to run treadmill. You don’t need to enter workout time and timer will count up from 0:00. (2) For 550Te, press ENTER or QUICK START to run treadmill. The workout will automatically count down from 30 minutes. -
Page 28: Preset Program
Preset Program Intenza 550 series treadmill designs with 25 preset programs to add variety and challenges to your workout plan. Each program provides different benefits and can help you to achieve your own personal fitness goals. Workout Procedure Step 1... -
Page 29: Target Program
Target Program Intenza 550 series treadmill offers 3 target workout options to meet your training goal, By setting time, distance, or calories, you may choose the program by turning the Uni jog dial switch to enter the program, If you want to save workout record, just insert the USB device before your workout start. -
Page 30: Hrc Program
HRC Program Intenza 550 series treadmill offers 4 heart rate control workout options. The heart rate control workout program allows the user to program their target heart rate zone. During the HRC program, the LED will show the below profile which represents the target heart rate zone. Each column represents 1 minute of workout. The column that the user is currently using will flash for reference. - Page 31 6. Input TARGET HEART RATE by turning Uni jog and press ENTER to confirm. 7. Choose HRC by INCLINE or by SPEED by turning Uni jog and press ENTER to confirm. 8. The timer will show up to count down for 3 seconds then the workout will start automatically.
-
Page 32: Custom Program
Detailed instruction for Intenza 550 series treadmill 1. Step on Intenza 550 series treadmill running deck. 2. Insert the USB device to USB port otherwise custom program is unable to operate. -
Page 33: Race Program
7. During the workout, the workout data will be shown in message bar under SCAN mode. Press SCAN to lock the workout data. 8. You will lose the race if you press STOP. When you win the race, Intenza 550 series treadmill will enter COOL DOWN mode for 4 minutes. -
Page 34: Fitness Test
(4) When you reach the target, Intenza 550 series treadmill will enter COOL DOWN mode for 4 minutes. If you are no longer keep up with the speed, press STOP to exit the workout. - Page 35 VO2 MAX CHART Male (values in ml/kg/min) Very poor Poor Fair Good Excellent Superior 13-19 < 35.0 35.0-38.3 38.4-45.1 45.2-50.9 51.0-55.9 > 55.9 20-29 < 33.0 33.0-36.4 36.5-42.4 42.5-46.4 46.5-52.4 > 52.4 30-39 < 31.5 31.5-35.4 35.5-40.9 41.0-44.9 45.0-49.4 > 49.4 40-49 <...
-
Page 36: Maintenance
Inspect and vacuum the area directly surrounding and under the unit regularly to keep debris from accumulating.. Check Intenza 550 series treadmill is well-leveled. All of its feet should be leveled to the floor, and should not wobble when in use. If not, re-level the equipment. -
Page 37: Self Diagnosis
Your Service Representative requires to check accumulated data about the past usage of Intenza 550 series treadmill, test the function and error message. For these reasons, Intenza 550 series treadmill is equipped with a service mode and can offer the diagnosis report for easy trouble shooting. Intenza 550Te is designed with build-in WiFi that enhance on-line service function. -
Page 38: Trouble Shooting
3. When the display shows NEED MAINTENANCE, you are suggested to contact with your local distributor for service. 4. If the problem you encounter has not been solved by the above steps, and Intenza 550 series treadmill is still not operational. Locate and document the serial number of the unit, and contact your local dealer. -
Page 39: 550Ti Exploded Drawing & Part List
550Ti EXPLODED DRAWING & PART LIST Item Item Item Item Console, 550Ti 21 Upright post, R 41 Wire, connect 61 Cap, frame, end, L Holder, bottle, L 22 Motor, drive, AC 42 Wire, connect 62 Cover, frame, rear, base Cover, bridge, console, side, 23 Motor, incline 43 Wire, connect 63 Cap, frame, end, R... -
Page 40: 550Te Exploded Drawing & Part List
550Te EXPLODED DRAWING & PART LIST Item Item Item Item Console, 550Te 21 Handlebar, side, R, overmold 41 Wire, connect 61 Guard, roller, R Holder, bottle, L 22 Upright post, R 42 Wire, connect 62 Cap, frame, end, L Cover, bridge, console, side, 23 Motor, drive, AC 43 Wire, connect 63 Cover, frame, rear, base... - Page 41 SPECIFICATION OF Intenza 550Ti Design use Commercial Maximum user weight 181kgs /400 lbs Speed range: 0.8-20.0 km/h in 0.1 increments Elevation range 0%-15% in 0.5% increments CONSOLE Type: LED display Display Heart rate, Incline, Pace, Time, METs, Calories, Distance, Speed...
- Page 42 SPECIFICATION OF Intenza 550Te Design use Commercial Maximum user weight 181kgs /400 lbs Speed range: 0.8-25.0 km/h in 0.1 increments Elevation range 0%-15% in 0.5% increments CONSOLE Type: 15'' TFT-LCD resistive touch panel monitor Display Heart rate, Incline, Pace, Time, METs, Calories, Distance, Speed...
- Page 43 Manufactured by Intenza．16-3 Zichiang First Road, Jhongli, Taoyuan 320 Taiwan．www.Intenzafitness.com Version: 2.0...
Need help?
Do you have a question about the 550 Ti and is the answer not in the manual?
Questions and answers
My control stick is not working properly Very hard to slow the speed downwards Is okay to speed up .
The control stick on the Intenza 550 Ti adjusts speed by moving it up or down, with each movement changing the speed by 0.1 km/h or 0.1 mph. If it is hard to slow down the speed, the issue could be that the stick is not responding properly to downward movement or the sensitivity is reduced, making it difficult to register small adjustments.
This answer is automatically generated

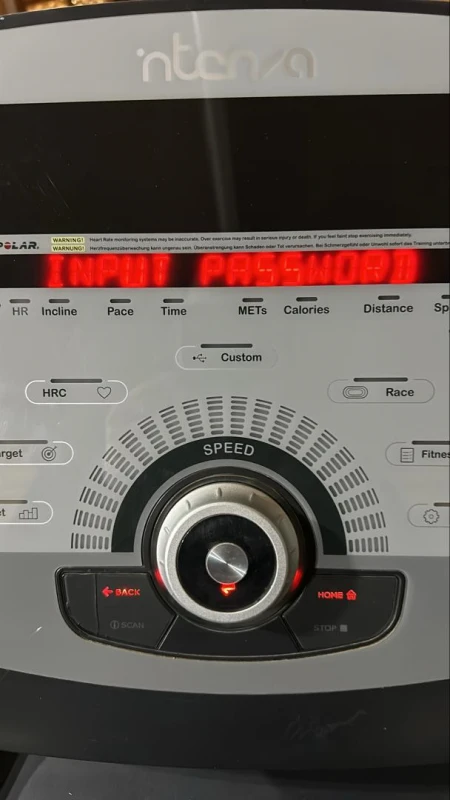

In display ask for password
