Mercury 350.005UK User Manual

A stylish and attractive wireless digital intercom that allows you to talk to your visitors before opening the
door. No wires are required between the outdoor and indoor units making this system very simple to
install. Both units are powered by a rechargeable battery with the indoor unit doubling as a battery
charger when connected to a suitable USB power source using the charging lead provided. Its also
possible to connect the outdoor unit to an electronic door lock, utilising the door release button on the
indoor unit. Ideal for use in domestic and business applications and helpful for the elderly or less mobile.

Features:

• Simple wire free installation and setup
• Up to 500m transmission range
• 8 Ringtones and adjustable ring volume
• Recharge the batteries using the indoor unit and USB charging lead (supplied)
• Weatherproof outdoor unit can be connected to an electronic lock (not supplied) when connected to
mains power
• Outdoor unit can also be mains powered using additional 12V PSU 350.006UK (not supplied)
• LED indicators for low battery warning and battery charging status

In the box:

• Outdoor unit (IP44)

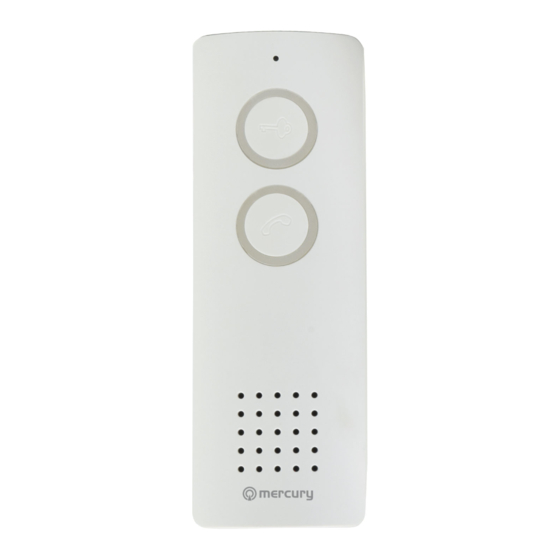

• Indoor unit
• Rain shade for outdoor unit
• 2pcs DC3.7V Rechargeable battery

Installation:

Outdoor unit
1. Fasten the rain shade on the wall around 1.4~1.7m
above the ground using the screws and plugs provided
in the fixing kit.
2. Open the battery cover using a small Philips screwdriver
and insert one of the DC3.7V rechargeable batteries
ensuring the correct polarity.
3. Replace the cover and screw then slot the unit into the
rain shade.
4. Secure the unit from underneath using the fixing screw
provided in the fixing kit.
5. Its also possible to power the outdoor unit using an
additional DC12V mains power supply (350.006UK not
www.avsl.com
2.4Ghz Wireless Digital Intercom
•
•
•
•
Order ref: 350.005UK
USB charging lead (1m)
Electronic lock connecting wire
Fixing kit
User guide
User Manual
350.005UK User Manual
