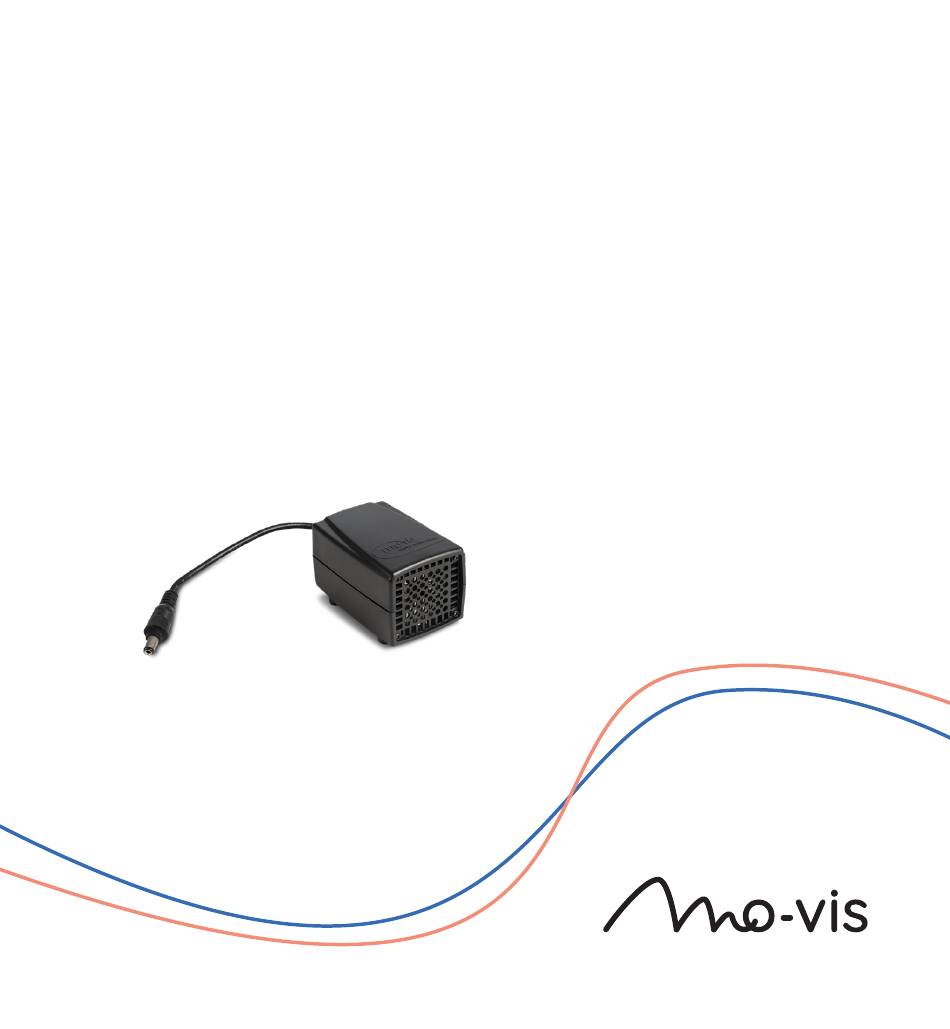

- Page 1 Installation manual Edition 5, July 2021 Hand warmer moving forward together...
-
Page 2: Table Of Contents
Contents About this manual ................3 Installation manual ..............3 mo-vis bv ................... 3 Important information ................ 4 Warranty .................... 5 Repair and replacement ............5 Amendments ................5 Disclaimer and limitations of remedies ........6 Voiding of warranties ..............6 Technical support ................ - Page 3 Installation ..................12 Mounting options ..............12 Mounting with the Hand Warmer mounting set ....12 Connection ................14 Configuration ..................16 Software download ..............16 Defining parameter settings ........... 17 Parameter settings ..............18 First time use ..................21 Maintenance ..................
-
Page 4: About This Manual
This manual contains useful and important information about your device. Please read it carefully before use and store safely for future reference. Our team will be happy to answer your questions. mo-vis bv Biebuyckstraat 15D . 9850 Deinze . Belgium http://www.mo-vis.com contact@mo-vis.com... -
Page 5: Important Information
Important information CAUTION: Incorrect use or installation may lead to risk of injury to the user and damage to the wheelchair or other property. In order to reduce these risks, you should carefully read this installation manual, paying particular attention to the safety instructions and warning texts. NOTICE: Only install this product on a wheelchair where the wheelchair manufacturer allows the installation of third party parts. -
Page 6: Warranty
2 years under proper use, care and service. The dealer should never keep mo-vis products in stock for a period more than 6 months prior to delivery to the end-user. mo-vis' warranty will never exceed a period of 2 years and 6 months after shipment. -
Page 7: Disclaimer And Limitations Of Remedies
The warranty will be void if the product has been installed or used improperly, or if it has been repaired or any part replaced by persons other than mo-vis or an authorized dealer. This product is considered as a non-serviceable part. -
Page 8: Technical Support
Technical support TROUBLE: In case of technical problems: Contact mo-vis at contact@mo-vis.com or +32 9 335 28 60. Always state the device serial number when contacting us. This ensures you are provided with the correct information. Hand warmer Installation manual... -
Page 9: Warning Labels
Warning labels Please read this manual, the safety instructions and warning texts carefully, in order to reduce the risks associated to the device. Our products are safe under normal and reasonably foreseeable operating conditions. NOTE: This symbol indicates general notes and information. CAUTION: This symbol indicates caution for a hazardous situation that, if not avoided, could result in minor or moderate injury. -
Page 10: Limited Liability
Limited liability mo-vis accepts no liability for personal injury or damage to property that may arise from the failure of the user or other persons to follow the recommendations, warnings and instructions in this manual. CAUTION: Carry out only the service and maintenance activities specified in this manual, as long as you comply with the demands stated in this manual for a specific action. -
Page 11: Preparations
Preparations CAUTION: Before you start with the installation: • Please check the packaging and verify that all items are included. • Make sure that you have all the necessary documentation and knowledge to install this device. • Check the condition of the device. Qualified service engineer Only a qualified service engineer may install the device. -
Page 12: Installation Plan
Installation plan Set up an installation plan before beginning the installation. Based on the users' needs and capabilities, this plan should take into account: • Where which part of the device should be placed. • How the device will be operated. •... -
Page 13: Installation
Installation Mounting options The Hand Warmer can be mounted on any location on the power chair: • You can mount the Hand Warmer with the M012-45 Hand Warmer mounting set to easily install the Hand Warmer on the wheelchair (tray, armrest ...). - Page 14 At full power, the device will produce warm air (up to 80°C/158°F). It is advised to leave a minimum distance between the hand and the Hand Warmer of at least 10 cm (4 in). If the distance is less, it is necessary to limit the maximum temperature to 70°C/158°F or less (see Parameter settings on page WARNING:...
-
Page 15: Connection
Slide the unit over the Q2M Rod (or any other 6 mm rod), to position the Hand Warmer on the wheelchair. You can use any other part of the Q2M system to complete the installation. CAUTION: Tighten the screws firmly, but not excessively. Excessive force may damage the unit. - Page 16 connection directly to the wheelchair batteries unless a fuse of max. 5A is added. Hand warmer Installation manual...
-
Page 17: Configuration
Configurator Software Manual. • To configure the parameters of the device, you need dealer level access. This level is password-protected. Contact mo-vis to obtain the password. NOTE: Never share your password with anyone and keep access to the Configurator Software strictly personal. -
Page 18: Defining Parameter Settings
Defining parameter settings The Hand Warmer is equipped with an isolated mini USB connection at the back. Connect the device to a PC. Use a standard mini-USB-USB cable. Hand warmer Installation manual... -
Page 19: Parameter Settings
CAUTION: Before inserting a jack or USB cable, remove the protective cover. If the connections are not used, always put or keep the protective covers in. Configure the parameters with the software. Upload the configuration. Test the configuration and adjust if necessary. Parameter settings Hand warmer Installation manual... - Page 20 SETTING DESCRIPTION PARAMETERS Auto off The device will automatically switch off Default after a set time (in minutes). Min. NOTE: Changing the level will reset Max. the timer. Step NOTE: A value of 0 means that the device will never switch off. Levels The number of available power levels.
- Page 21 SETTING DESCRIPTION PARAMETERS tempera- the lowest power level. Min. ture Max. Step Maximum The temperature (in °C) of the heater at Default tempera- the highest power level. Min. ture Max. Step Minimum The fan speed (airflow) (in %) at the low- Default fan speed est power level.
-
Page 22: First Time Use
First time use During first time use by the user, it is advised that the dealer or service engineer assists and explains the different possibilities to the user and/or his attendant. If needed, the dealer can make final adjustments. CAUTION: It is important that the customer is fully aware of the installation, how to use it and what can be adjusted to optimize his/her experience. -
Page 23: Maintenance
Maintenance The device is maintenance-free. Under regular circumstances of use, the device and different parts do not require additional maintenance. Please refer to the User Manual of the device for cleaning instructions. WARNING: As dust and dirt could lead to reduced functionality, all parts of the device should be cleaned on a regular basis (monthly) or whenever needed. -
Page 24: Error Codes
Error codes The device contains a controller that continuously checks the integrity of the device. Whenever a problem is detected, the device will be switched off automatically. When this happens, check the fault flash code or use the configurator to check why the device stopped. LED error codes TROUBLE: When a fault occurs, the LED will start to flash. - Page 25 FLASH COUNT REASON REQUIRED ACTION ADC internal analog to Replace PCB digital converter Test flag failed or Diag- Redo tests and/or replace PCB nostic failed CPU fault Replace PCB Scheduler fault Update software or replace PCB Coding error Update software or replace PCB Hand warmer Installation manual...
-
Page 26: Fault Log
Fault log FAULT REASON REQUIRED ACTION CPU error RAM CPU consistency check Contact mo-vis failed CPU error FLASH CPU error EEPROM Run error scheduler Firmware consistency Contact mo-vis check failed Code error framework Code error application MSP command corrupt Corrupt command was... - Page 27 The device is not able state to receive a command in the current device PCB test failed Factory test failed Contact mo-vis Application test failed Field test failed Field test failed (cali- bration) Test flag check One or more test flags...
