Summary of Contents for Mo-vis P012-62

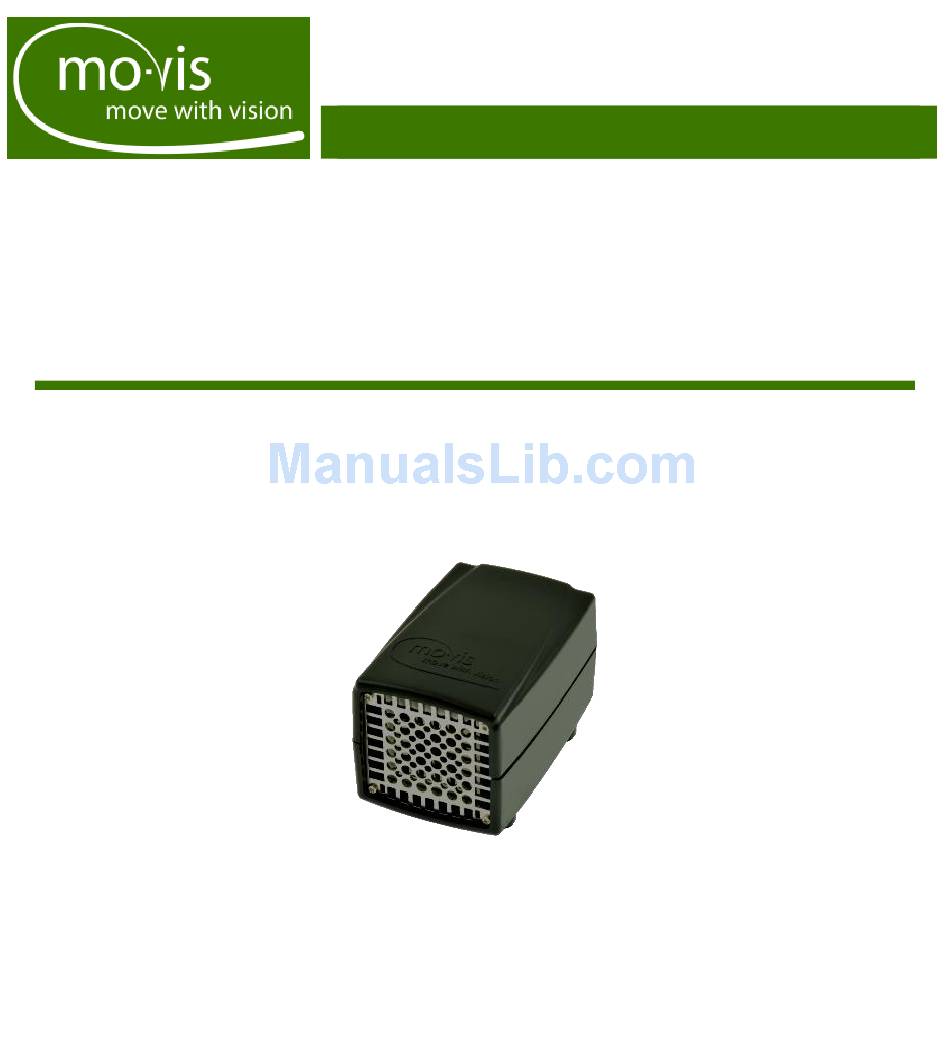

- Page 1 User & Installation Manual Hand Warmer Adjustable heating device Hand Warmer (P012-62)
-
Page 2: Contact & Product
Contact & Product mo-Vis bvba Biebuyckstraat 15 D 9850 Nevele - Belgium Website: www.mo-vis.com E-mail: contact@mo-vis.com Telephone: +32 9 335 28 60 Hand Warmer User & Installation manual Produced and published by mo-Vis bvba, Belgium Edition October 2016 Manual item: D-P012-62-70-00... -
Page 3: Table Of Contents
Warranty ----------------------------------------------------------------------------------- 7 Safety precautions ---------------------------------------------------------------------- 9 Design and function of the Hand Warmer --------------------------------------- 13 Parts and accessories ---------------------------------------------------------- 13 mo-Vis Configurator software ----------------------------------------------- 17 Installation instructions -------------------------------------------------------------- 18 Preparations --------------------------------------------------------------------- 18 Installation of the Hand Warmer ------------------------------------------- 20... - Page 4 Parameter settings -------------------------------------------------------------------- 33 Technical data -------------------------------------------------------------------------- 35...
-
Page 5: Important Information About This Manual
Important information about this Manual Congratulations for choosing a mo-Vis product! If you would like to learn more about mo-Vis and its products, we invite you to visit our website: www.mo-vis.com. Before you install or begin using this product, it is important that you read and understand the content of these installation and operating instructions, the safety instructions in particular. -
Page 6: Support, Scrapping And Spare Parts
Support, scrapping and spare parts Technical support In case of technical problems, we advise you to contact your dealer. If the dealer is not available, or unknown, please contact mo-Vis bvba by email support@mo-vis.com or by phone +32 9 335 28 60. -
Page 7: Warranty
Dispose of obsolete electronic parts responsibly in accordance with local recycling regulations. Warranty mo-Vis bvba warrants the Hand Warmer to be free from defects in material and workmanship for a period of 2 years under proper use, care and service. - Page 8 The express warranties set forth in this agreement are in lieu of all other warranties of merchantability or fitness of purpose. In no event shall mo-Vis be liable for any direct, indirect, incidental or consequential damages resulting from any defect in this product.
-
Page 9: Safety Precautions
Understanding usage The health care professional (authorised installer) is responsible for understanding the intended use of the mo-Vis equipment, the specifications and its programming parameters. mo-Vis cannot be held responsible for damage caused by incorrect installation or incorrect use of the product. Misuse, mishandling or storage is not covered by this warranty. - Page 10 CAUTION! Limited liability mo-Vis accepts no liability for personal injury or damage to property that may arise from the failure of the user or other persons to follow the recommendations, warnings and...
- Page 11 Hand Warmer must be carried out by a qualified service engineer or someone with adequate knowledge to perform the adjustment in an expert manner. In case of doubt, contact a qualified service engineer or mo-Vis. Hand Warmer...
- Page 12 Use only spare parts or accessories approved or recommended by mo-Vis. All other use could lead to changes which might impair the function and safety of the product. It could also lead to the warranty becoming void. CAUTION! Testing The Hand Warmer should always be tested without any person sitting in the wheelchair after the physical installation of the Hand Warmer or adjustment of the parameters.
-
Page 13: Design And Function Of The Hand Warmer
This results in a huge advantage with regards to power consumption and efficiency. Parts and accessories Hand Warmer Set A Hand Warmer set (P012-62) consists of the following parts: Hand Warmer... - Page 14 Hand Warmer Mounting M012-45 D-P012-62- Hand Warmer manual, with Serial number sticker Hand Warmer Mounting Set The Hand Warmer Mounting Set (M012-45) is included in the Hand Warmer Set (P012-62). The Hand Warmer Mounting Set consists of the following parts:...
- Page 15 Product description Product code Q2M half Clamp D6 + M004-04 bolt 14mm Q2M Rod D6 50mm (1 M004-74 piece) Hand Warmer Dual lock M012-40 (22*9*3.5mm): 2 pieces Hand Warmer...
- Page 16 The 2-hands dome can be ordered with the code M012-31. Contact your dealer or mo-Vis for ordering. The dome is delivered with four hook and loop fastener pads to attach the dome to any flat surface, e.g. a tray.
-
Page 17: Mo-Vis Configurator Software
For all details on how to install and use the software, we advise you to consult the manual of the mo-Vis Configurator software (included in the software download). User profiles Depending on your profile (user, attendant, dealer, OEM), you will be able to configure a number of parameters for the Hand Warmer. -
Page 18: Installation Instructions
Installation instructions Safety precautions CAUTION At full power the device will produce warm air (up to 70°C/158° F), it is advised to leave a minimum distance between the hand and the warmer of 10 cm (4 in). If the distance is less it is necessary to limit the maximum heater temperature using the configurator to 70°C/158°... -
Page 19: Preparations
WARNING The XLR connector is internally fused with a fuse of 5 A. This is necessary because the wire gauge cannot carry more current. Therefore, it is not allowed to cut the XLR connector and make a connection directly to the wheelchair batteries unless a fuse of max 5 A is added. -
Page 20: Installation Of The Hand Warmer
CAUTION! Do not tighten screws with an excessive force. Installation plan Set up an installation plan before starting the installation. Based on the users’ needs and with actual measurements of the wheelchair and the user, this plan should specify: Where which part of the Hand Warmer should be placed ... - Page 21 You can mount the Hand Warmer using the included mo-Vis Quick to Mount (Q2M) Hand Warmer mounting set to easily install the Hand Warmer on the wheelchair (tray, armrest, …). You can equally use any other mounting system ...
- Page 22 Contact your dealer or mo-Vis for more information, or ordering additional clamps or rods. CAUTION! Tighten the screws firmly, but not excessively with an Allen key. Excessive force may damage the unit. Connecting Place and connect the Hand Warmer Extension Lead (included) with the Hand Warmer connector and lead the XLR power cable to the wheelchair joystick or battery.
-
Page 23: Operation Of The Hand Warmer
The functionality of the button is to cycle through the levels (power settings) of the device. You can adjust the number of levels using the mo-Vis Configurator software to alter the parameters. The green LED at the front indicates the status of the device (see table). -
Page 24: First Time Use
PC to interact with the mo-Vis Configurator software. See the configurator manual for more information. Automatic error detection The device contains a controller that continuously checks the integrity of the device, whenever a problem is detected the device will be switched off automatically. - Page 25 Have the user test all positions of the Hand Warmer (and the optional 2-hands dome): Is the Hand Heater well positioned in accordance with client’s needs? Can the user safely operate the Hand Heater with the least effort? ...
-
Page 26: Using The Hand Warmer
Using the Hand Warmer Conditions of use The Hand Warmer is intended for use as installed by the dealer, in accordance to the installation instructions in this manual. The foreseen conditions of use are communicated by the dealer or service engineer to the user and/or attendant during the first time use. -
Page 27: User Adjustments
Only test new settings without any person sitting in the wheelchair As a user or attendant, you can make a limited number of parameter adjustments yourself with the mo-Vis Configurator software. Although the number of parameters you can change as a user or attendant is limited, we advise changing only parameters you completely understand. -
Page 28: Troubleshooting
Troubleshooting When a fault occurs the LED will start to flash. There is a long delay and then a number of flashes with a short delay. Count the number of flashes and look up the according code in the table below. Flash Count Reason Required action... -
Page 29: Error Codes
Replace PCB If the problem persists after intervening, please contact your local dealer or mo-Vis Service Engineer to attend to the problem. Error codes The system maintains a fault log with counters. Each time a specific fault occurs its counter will be incremented by one (the maximum count value is 254). - Page 30 MSP Command Corrupt command was Connection with the PC Corrupt received. (Configurator program) went wrong, try again. MSP Command Unknown command Connection with the PC Unknown was received. (Configurator program) went wrong. Update MSP Sub Command Unknown Sub Firmware or update Unknown Command was Configurator Software.
- Page 31 One or more test flags Redo tests and/or Test Flag Check not set. replace PCB. ADC Conversion error. Replace device Under/Over Supply Over/Under Voltage Check the power Detected. connection and power cable. Too Hot Heating system or Remove dust in device temp sensor faulty.
-
Page 32: Maintenance
Maintenance Cleaning Clean all parts of the Hand Warmer and the optional 2-hands dome on a regular basis (monthly), or whenever needed. Gently remove dust and dirt with a damp cloth. Use only non-aggressive disinfectant cleaning agents WARNING! Do not immerse the Hand Warmer unit in water or do not use excessive amounts of liquid. - Page 33 Parameter settings With the mo-Vis Configurator Software you can change the parameters of the Hand Warmer. Depending on your user profile (user, attendant, dealer, OEM), you will be able to change a number of parameters. Parameter Default Description Auto Off...
- Page 34 Maximum The temperature (in °C) of the Temp heater at the highest power level. Minimum The fan speed (airflow) (in %) Fan Speed at the lowest power level. Maximum The fan speed (airflow) (in %) Fan Speed at the highest power level.
- Page 35 Technical data Product description & code Hand Warmer Set (P012-62) Hand Warmer Unit (P012-61) Hand Warmer Dome Set (M012-31) Hand Warmer Mounting Set (M012-45) Hand Warmer Power Cable 180 mm (P012-40) Dimensions Hand Warmer unit ...
- Page 36 Dimensions 2-hands dome (cm) Voltage supply Safety Limits : 12 to 35V Normal Use : 18 to 26V Current supply At full power : 2.0 A...
- Page 37 Power consumption Idle mode : 20 mA Sleep mode : 1.7 mA Cable length Pigtail : 15 cm (0.49 ft.) Extension Lead : 180 cm (5.9 ft.) XLR connector Pin 1: V+ (internally fused 5 A) ...
- Page 38 Installation date: . . / . . / ..Dealer: ....Dealer stamp: Serial number sticker...
