Summary of Contents for GÜDE 40079

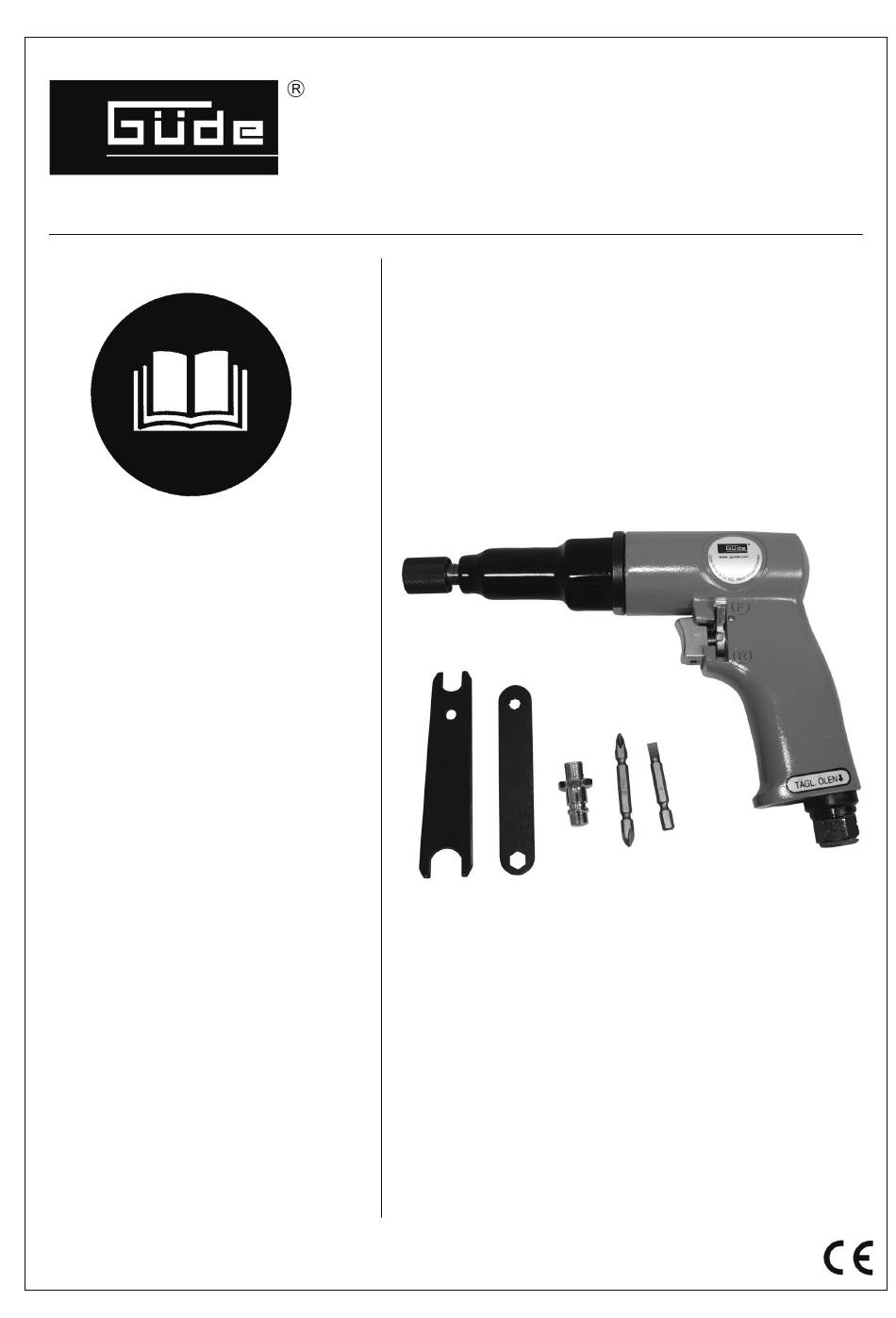

- Page 1 Pneumatic Screwdriver # 40079 English GB Translation of original operating instructions © Güde GmbH & Co. KG - Birkichstrasse 6 - D-74549 Wolpertshausen - Deutschland...
- Page 2 10 Nm Maximum screw diameter 6,0 mm Ordering No. 40079 Required Air Quality, Air Supply: Cleaned, with oil mist. By means of a maintenance kit with a filter reducer and an oilcan to provide the oil mist. Working values set-up: Set up operating (hydraulic) pressure on the reducer 6 bar.
- Page 3 Initial Operation • Remove the protection from the pressure air connection neck (Fig. 1/ Pos. 4). Pack the slip connection (Fig. 1/Pos. 10) with a Teflon tape and screw on. • Push the quick-acting chuck (Fig. 1/ Pos. 1) down and turn a bit if necessary.
- Page 4 In a case of alternation of the machine, not agreed upon by us, this declaration will loose its validity. Bezeichnung der Geräte: - Pneumatic Screwdriver Machine desciption: Artikel-Nr.: - 40079 Article-No.: Einschlägige EG-Richtlinien: - 2006/42/EC Applicable EC Directives: Datum/Herstellerunterschrift: 18/06/2012...
- Page 8 GÜDE GmbH & Co. KG Birkichstrasse 6 74549 Wolpertshausen Deutschland Tel.: +49-(0)7904/700-0 Fax.: +49-(0)7904/700-250 eMail: info@guede.com...
