Maintenance; Safety Considerations - Genelec SAM 8361A Operating Manual

Colour
Solid green Normal state, normal operation
Blinking green GLM is interrogating the monitor
Monitor is in an ISS power saving sleep
Blinking green every 10 sec.
state
Blinking red Power amplifier overload protection is
active (audio is modified because of
protection)
Solid red Monitor is muted
Solid yellow Monitor is not in the active (playing)
group
Blinking yellow Overheat protection is active (audio is
modified because of protection)
Table 2. Monitor front panel light indications summary
Mounting and Placing Monitors
Mounting Options
The Isolation Positioner/Decoupler™ (Iso-Pod™) stand allows
tilting of the monitor and isolates vibrations. As delivered from the
factory, the Iso-Pod retainer spring is attached to the bottom of the
enclosure for vertical orientation. With horizontal positioning, use
the separate Iso-Pod horizontal mount retainer spring (included
in packaging). Use the screws in the mount retainer spring when
attaching the horizontal mount retainer spring. The spring must be
mounted offset towards the reflex port to bring the Iso-Pod to the
enclosure centerline (See Figure 6).
Aim the acoustic axis of the monitor towards the listening
position (see Figure 4). Place monitors symmetrically and at equal
distances from the listening position. Preference should be made
in placing the listening position on the left-right centerline of the
room (see Figure 5). If a monitor is placed far (1.0-2.2 m, 3-7 ft)
from the acoustically hard wall behind the monitor, a reflection
from the wall may reduce bass output. Avoid these distances.
Place monitors away from acoustically reflective surfaces.
Reflections from desks, cabinets, computer monitors and such
objects can colour audio and blur sound images. Place monitors
on stands behind and above a mixing console as this usually
improves audio compared to placing monitors on a meter bridge.
Ceiling and wall mounts are available through Genelec
dealers. Monitor mounts attach to four M6 x 10 mm threaded
holes on the enclosure back. Consult the Genelec Accessories
Catalogue at www.genelec.com or distributor/dealer for
information.
Front Panel Light
The light on the front panel is normally green. Red and yellow
colours indicate special situations. See Table 2.
Use with Subwoofers
Genelec recommends 7300 series subwoofers and the W371
Adaptive Woofer System for 8361A. Consult the on-line Genelec
Product Selection Tool at www.genelec.com.

Maintenance

Do not open the monitor enclosure. Opening the monitor
may lead to loss of the monitor calibration and may damage
Indication

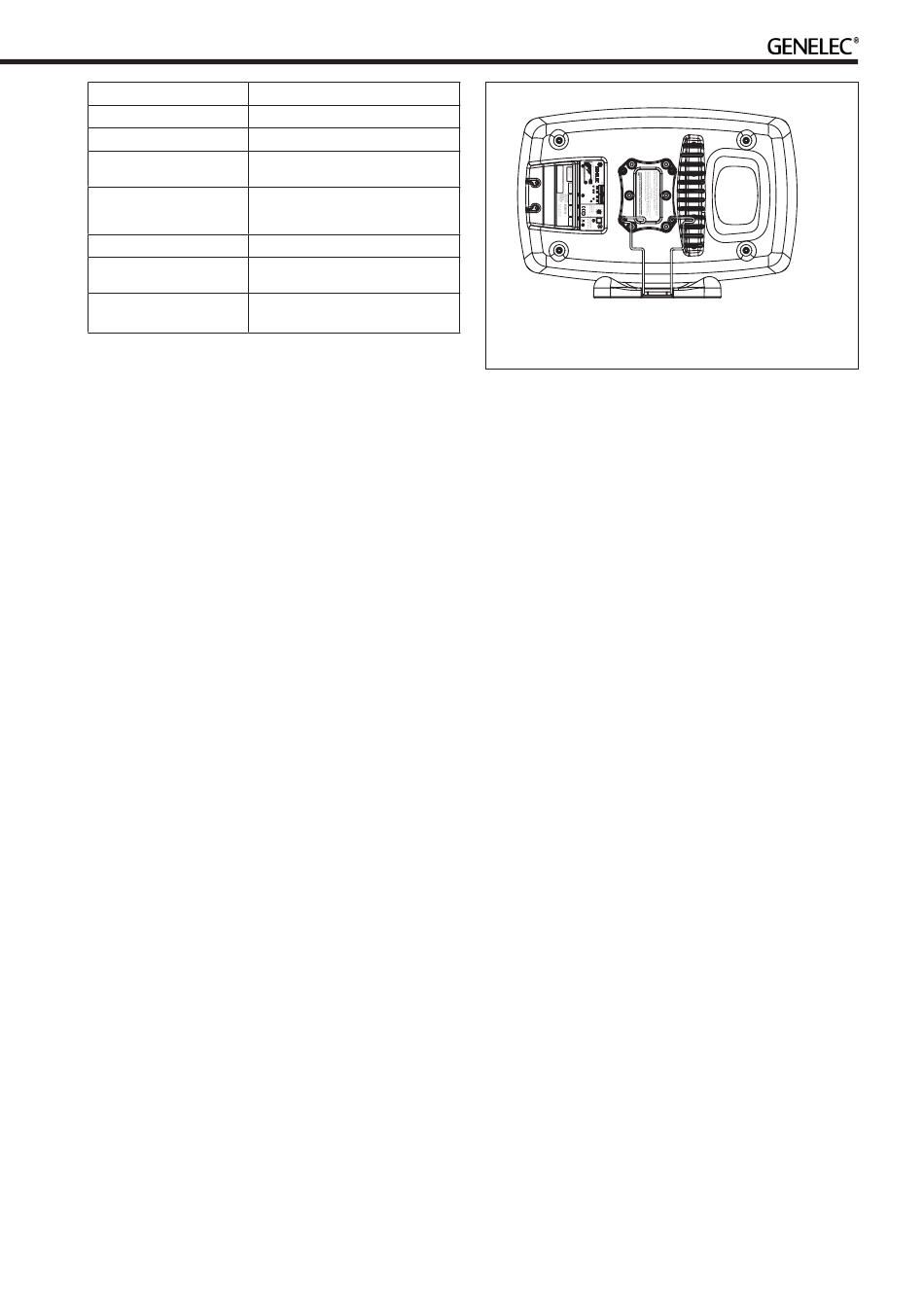

Figure 6. Placing the Iso-Pod stand when the monitor is used in
horizontal position. Note the horizontal mount retainer spring and
its offset mounting towards the reflex port.
components. There are no user serviceable parts inside.
Maintenance or repair can only be done by Genelec certified
service.
The 8361A follows international safety standards. To ensure
safe operation, the following warnings and precautions must be
observed:
certified Genelec service personnel. The monitor enclosure
must not be opened.
protective ground terminal and with a mains connection
with a protective earth terminal. Failing to do so may lead to
personal injury.
to water or moisture.
the monitor or near it.
mains service unless the power cable is removed from the
monitor or the mains outlet.
sufficient cooling. Do not obstruct airflow around the
monitor.
The 8361A is capable of producing sound pressure levels in
excess of 85 dB, which may cause hearing damage. Sound
exposure level integrated over eight contiguous hours should be
limited to Leq=80dB(A) to reduce the risk of permanent hearing
damage. For each 3 dB increase in this sound level, half this
exposure time.
The Genelec 8361A is guaranteed for two years against
manufacturing faults or defects altering performance. You can
get an additional three-year guarantee covering spare part costs
by registering your product at www.genelec.com. Refer to your
point of purchase for full sales and guarantee terms.
(dB) (dB)
BASS ROLL OFF 2
DESKTOP 160 Hz 4
BASS TILT 2
+2
TREBLE TILT
LED DISABLE
ISS
DIGITAL A
B
10 dB
LEVEL
20 dB
STORED
29 60W
292 8361T 6

Safety Considerations

• Servicing and adjustment must only be performed by
• Use the product only with a mains cable having a
• To prevent fire and electric shock, do not expose the unit
• Do not place objects filled with liquid, such as vases, on
• Note that the device is not disconnected from the AC
• Free flow of air behind and around the monitor maintains
WARNING!
Guarantee
