Applied Machines: PRO958/958/808/758
MFP: 95 ppm/80 ppm/75 ppm
Product Code: A796/A8KN/A795

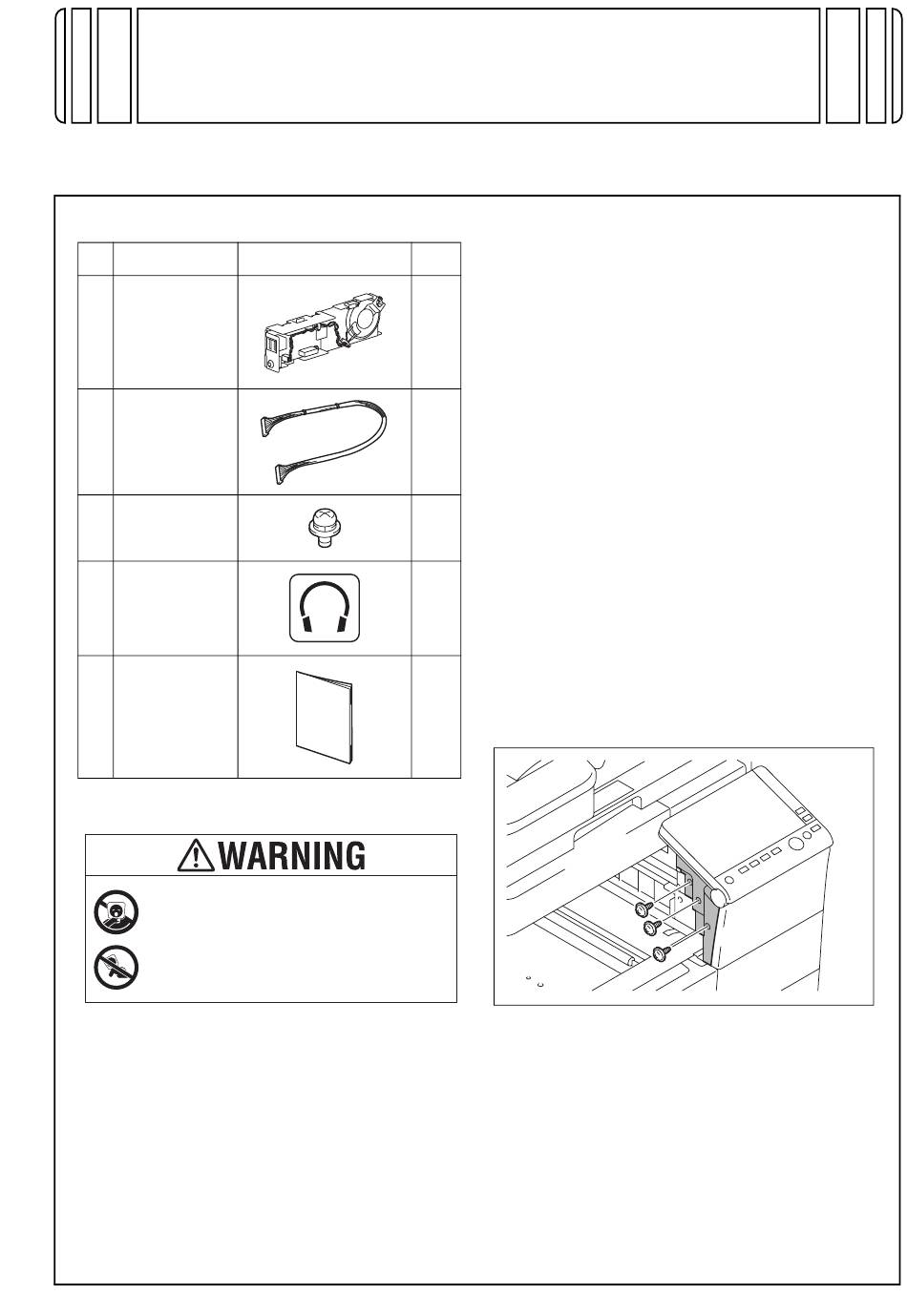

1. Accessory parts
No.
Name
1. Local interface
board unit
2. Harness
3. Screw
(3 × 8 mm)
4. Label
5. Installation
manual
Keep this bag away from babies and
children. Do not use in cribs, beds,
carriages, or playpens.
The thin film may cling to nose and
mouth and prevent breathing. This bag is
not a toy.
EK-611
INSTALLATION MANUAL
Shape
Q'ty
1
1
3
1
1 set
Local Interface Kit
Note:
• When using this option and the Working Table
WT-513 at the same time, refer to the manual of
the Working Table WT-513 for the installation
procedures.
• When installing the keyboard, connect its cable
to the USB port added to the machine.
• This manual provides the illustrations of the
accessory parts and machine that may be
slightly different in shape from yours. In that
case, instead of the illustrations, use the
appearance of your machine to follow the
installation procedure. This does not cause any
significant change or problem with the proce-
dure.
• If none of the later steps instruct you to use the
parts including screw and cover that you
removed following the instructions described in
this manual, discard them.
2. Installation procedures
(1) Turn OFF the power switch and unplug the
power cord from the power outlet.
(2) Remove the control panel left cover. (Three
screws)
E-1
A8HA-9581-00
