Summary of Contents for stur SF15 Series

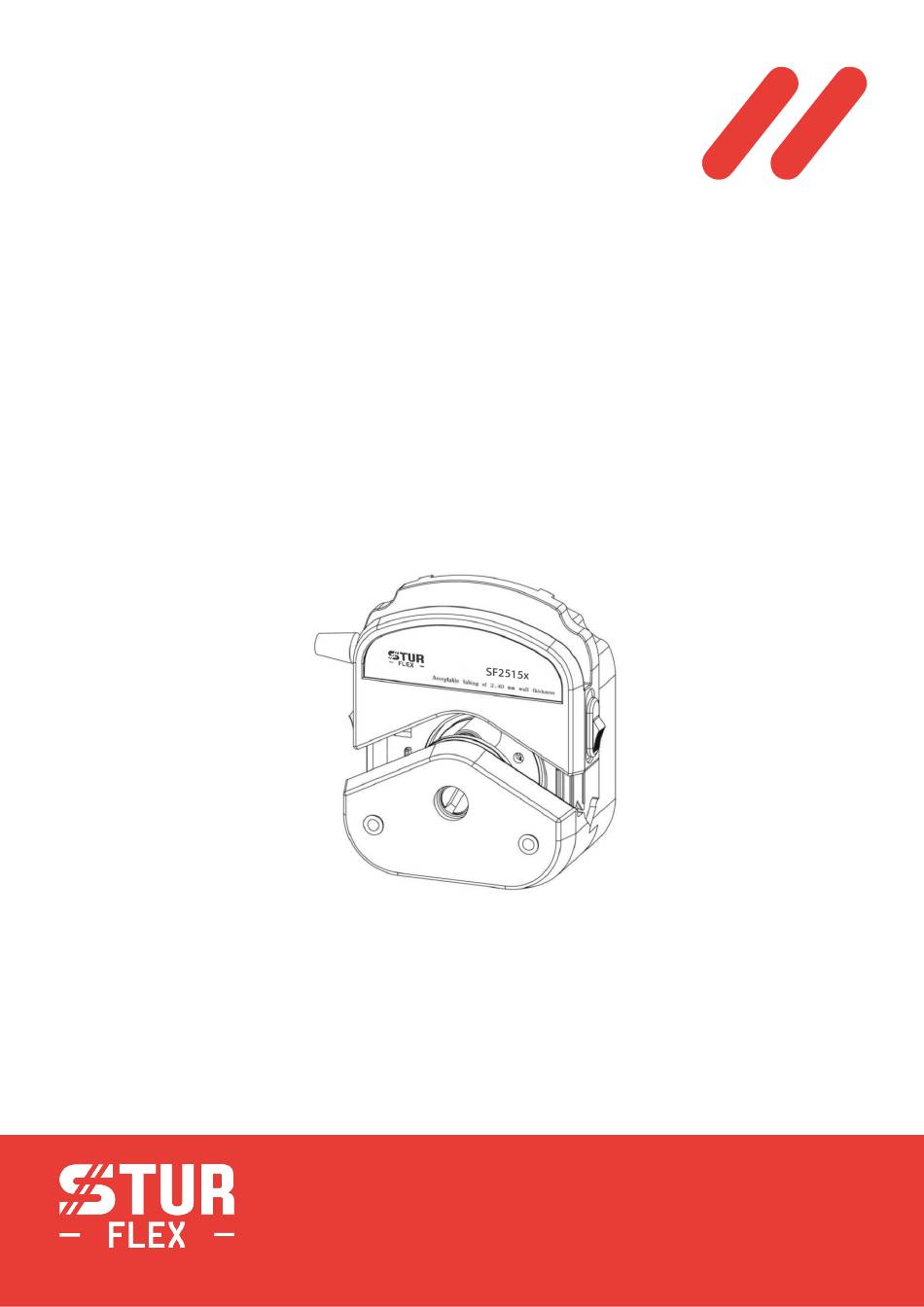

- Page 1 Manual of the SF15/25 series Peristaltic Pump Head Rev 1. 12/2020...
- Page 2 Important Information Please read the operation manual before using the product. Warning • Tubing may have crack due to wear, the liquid may flow out from tube, and hurt human body or damage the pump head. So we need to check and change tube regularly •...
- Page 3 Production Introduction Easy-load type pump head, easy to install tubing, can mount multiple pump heads according to user’s requirement, convenient for OEM application. There is two materials for SF1515x and SF2515x pump head shell: • PPS( Polyphenylene sulfide material), black color, resist organic solvent corrosion, high precision, high strength, suitable for industrial sites or work in bad environment.
- Page 4 Adapter sleeve • Take off the screw nut, install the complete set of pump head 1/2/3 together to pump drive. Note: If the pump head been disassembled into three separate pump head, the roller assembly should be staggered in sequence as in below picture. 2.3 Tubing Installation •...
- Page 5 • Please make sure the tube is in natural direction inside pump head, can not be twist Wrong Correct • The tube should be straight in the inlet and outlet area of the pump head, should not be forward or backward Wrong Wrong Correct...
- Page 6 Pump Head Dimension Technical Specifications Technical Specifications Flow Rate Flow Rate Max Pressure Power Speed Model Tubing Size Ml/Rev (ml/min) (Intermittent) (Continous) 0,07 6,48 0,39 M-SF1515_92,5 0,27 24,98 1,50 M-SF1515_92,5 0,55 50,88 3,05 M-SF1515_92,5 0,82 75,85 4,55 M-SF1515_92,5 92,5 M-SF1515_92,5 157,25 9,44 268,25...
- Page 7 4.1 Flow Rate Chart Maintenance • When pump is not working, please loose the cartridges which press the tubing to avoid changing the shape of tubing because of longtime extrusion. • Keep the rollers of pump head clean and dry, otherwise it can quicken the tubing wear, reduce the useful life of tubing and lead the rollers to damage in earlier.
- Page 8 Manual of the SF15/25 series Peristaltic Pump Head sturflex@sturpumps.com www.sturpumps.com...
