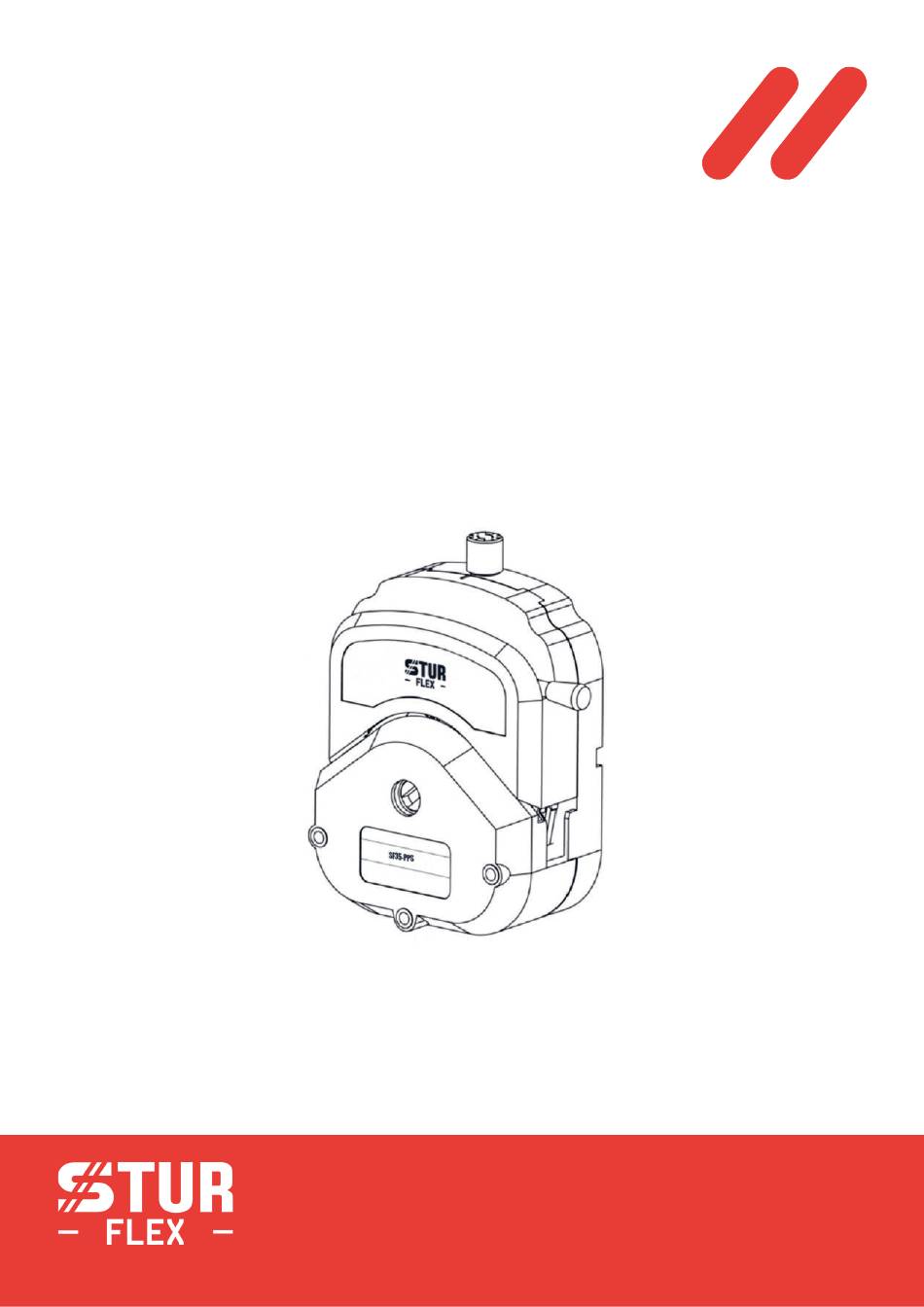

- Page 1 Manual of the SF35 series Peristaltic Pump Head Rev 1. 09/2020...
- Page 2 Pump Head Instruction 2.1 Tubing Holder Instruction 2.2 Tubing Installation Pump Head Installation Instruction 3.1 Single Pump Head 3.2 Multichannel Pump Head Pressure Regulation Dimension ( Unit: mm) Maintenance Warranty and After-sales Service Manual of the SF35 series Peristaltic Pump Head...
-
Page 3: Product Introduction
2.1 Tubing Holder Instruction • Tubing holder function:fix the tubing,lower the tubing shaking during working,improve the stability and accuracy of flow rate;prevent the tubing wear,extend the tubing lifetime. • Tubing holder model: 26#,73#,82# Manual of the SF35 series Peristaltic Pump Head... - Page 4 • Put the groove of tubing holders into pump head slideway,press hard until can not be pressed,the tubing holders not install in place. • Pull the lever clockwise,press slowly until upper block in place,then the tubing holders install in place. Manual of the SF35 series Peristaltic Pump Head...
- Page 5 Need to install adapter sleeve between the two pump heads’ spindle,as shown above,otherwise pump head work unnormal. Note: Try to pinch the screws with balanced force, which should not be too tight. To prevent the under support transformed and generate noise. Manual of the SF35 series Peristaltic Pump Head...
-
Page 6: Pressure Regulation
SF35 pump head can adjust the pressure by rotating the knobs. In the direction of the arrow, the pressure increases, and vice versa. Dimension ( Unit: mm) SF35-PPS pump head SF35 Aluminum Alloy Manual of the SF35 series Peristaltic Pump Head... -
Page 7: Maintenance
Products have one year warranty(not including tubing). In the warranty, the products are damaged because of users’ wrong operation or other human damages, our company have not responsibility for warranty. Beyond the warranty, our company only receive the costs of maintenance. Manual of the SF35 series Peristaltic Pump Head... - Page 8 Manual of the SF35 series Peristaltic Pump Head sturflex@sturpumps.com www.sturpumps.com...
