- Page 1 Lisa LCD Quick Start Guide for software version 1.16 Updated on 16-6-2014...
-
Page 2: Getting Started

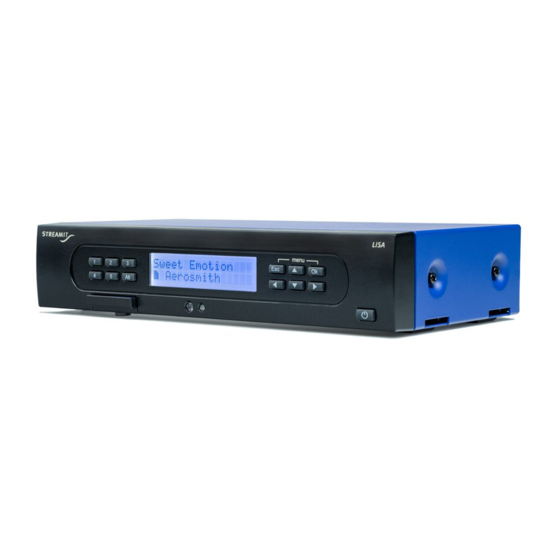

Front view The front view of the Lisa LCD device is depicted below. Lisa LCD features a two lines display, a power button, a slot for the SD memory card, IR receiver, status LED and a number of preset and functional buttons. -
Page 3: Back View
Start at the position where the small triangle marking points to the top of the power supply, opposite to the side of the cord. Press down slightly and rotate the plug 90° clockwise as depicted below. You will hear a click and the adapter will be locked in place. Lisa LCD... -
Page 4: Connecting The Ethernet Cable
The audio output of the Lisa will be connected to the line input of the audio installation. No audio cables are included with the Lisa. The type of cable that should be used to connect the Lisa is on the Lisa-side RCA, the other end depends on the type of connector in your audio installation. Lisa LCD... -
Page 5: Device Configuration
Using the Lisa Device configuration The Lisa LCD starts up with the so-called configuration wizard, which asks the user to enter the most important configuration settings, such as menu language, IP settings etc. The other configuration settings on the Lisa may not be what is needed for your specific application, or they may have to be updated during use. -
Page 6: Device Activation
For these applications, we have identified the following operational setups: Standalone Streamit Device portal Streamit Audio Distribution Platform Your own platform These variants are described in more detail below. Standalone operation You do not have to use the Lisa for playing from the internet. When you have a sufficiently large number of audio files available, you can also make exclusive use of the card functionality. - Page 7 You can also ask Streamit to upgrade your account to a master account. With that type of account, you can create user accounts for each of your clients and allow them a certain level of management of their device.
- Page 8 LCT can be downloaded from the Streamit site in the download section and is available free of charge. LCT needs to be installed and started at least once, before the USB cable is connected. At startup LCT will check and install drivers if required. Only after the drivers have been installed, the Lisa can be connected to the PC using a USB-A to USB-B cable.
- Page 9 © 2014 Streamit B.V.
