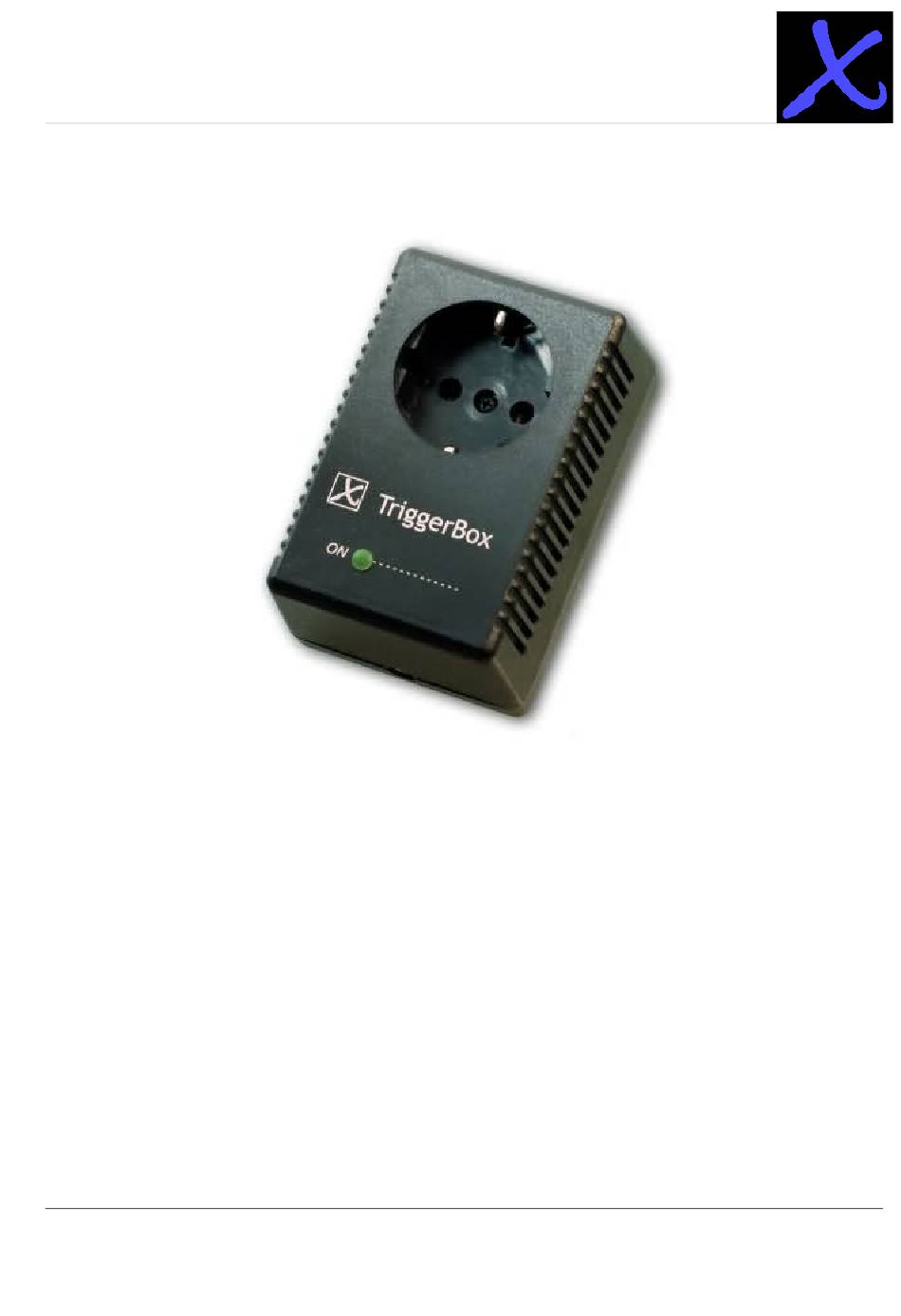

- Page 1 Datentechnik GmbH info@antrax.de - www.antrax.de TriggerBox-12V Manual 15.06.2010 - 1 - Hasenbrink 4, 32052 Herford, Germany Tel. +49 (0) 5221 929660 Fax +49 (0) 5221 9296628...
- Page 2 Datentechnik GmbH info@antrax.de - www.antrax.de General Many devices like "TV / Video / HiFi / Audio" feature a so-called "12V trigger" output. The devices indicate the current switching state (ON, OFF ...) and thus control connected "slave units". The TriggerBox-12V is used for devices without ''12V trigger'' output but shall signal current switching.
- Page 3 • Installation of the TriggerBox-12V Connect the trigger output of the TriggerBox-12V with a 3,5 mm jack connector cable • with a trigger input of your electronic device Switch OFF the electronic device you want to connect •...
- Page 4 General: Protection class: IP20, in dry rooms only • Connector system: safety plug (CEE 714) • if trigger signal is set to the trigger output this is signalled by the green LED • Ambient temperature 0 ... +40°C • Storage temperature -10 ...
