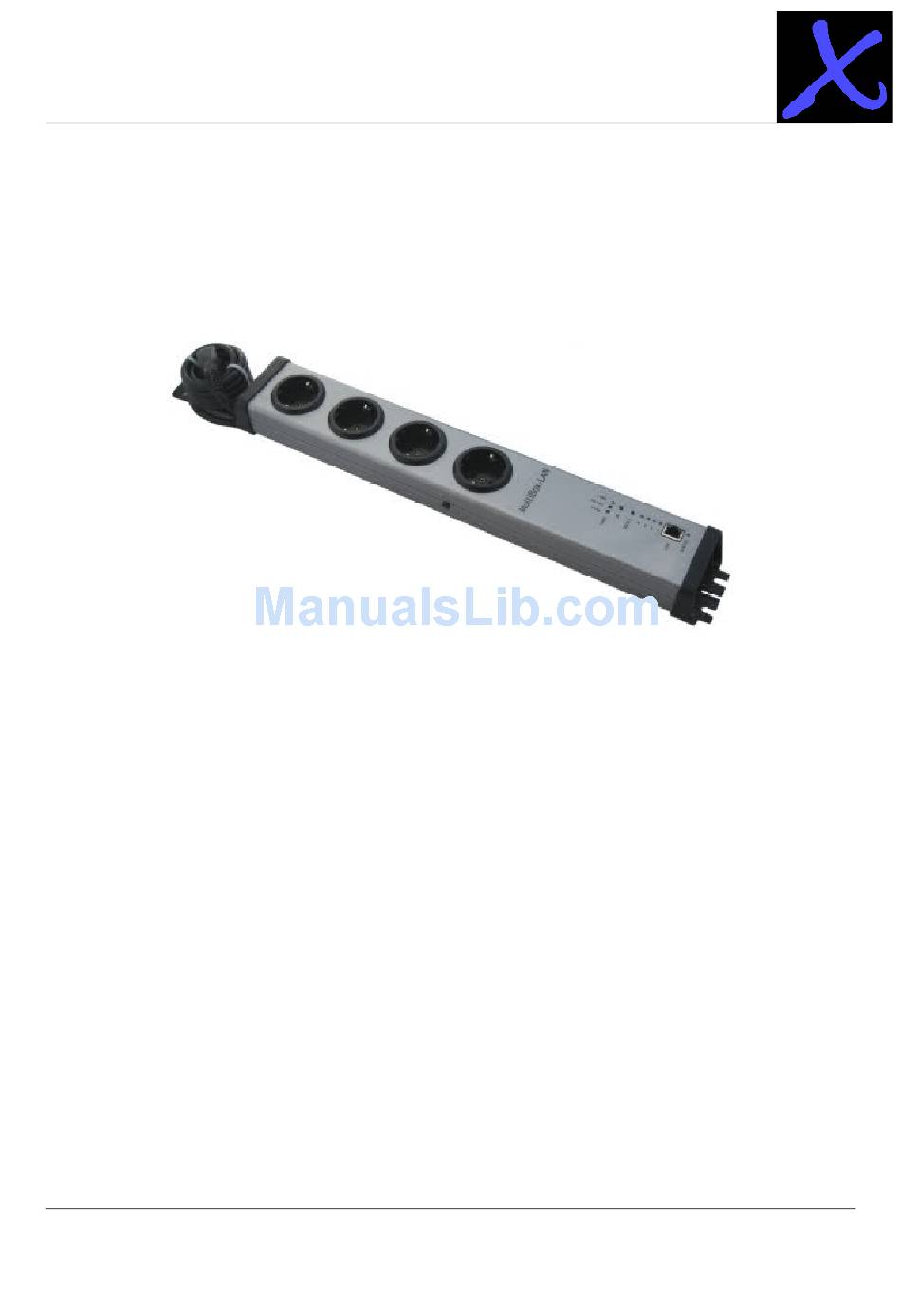

MultiBox-LAN
LAN interface
•
watchdog funcionality
•
relay version
•
sensor input for temperature and humidity measurement
•
integrated control panel
•
Manual
18.02.2011
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MultiBox-LAN and is the answer not in the manual?

Questions and answers

Related Manuals for Antrax MultiBox-LAN

Summary of Contents for Antrax MultiBox-LAN

  • Page 1 Datentechnik GmbH info@antrax.de - www.antrax.de MultiBox-LAN LAN interface • watchdog funcionality • relay version • sensor input for temperature and humidity measurement • integrated control panel • Manual 18.02.2011 - 1 - Hasenbrink 4, 32052 Herford, Germany Tel. +49 (0) 5221 929660 Fax +49 (0) 5221 9296628...

  • Page 2: Table Of Contents

    Datentechnik GmbH info@antrax.de - www.antrax.de Content Safety Instructions.................5 Description....................5 Hardware....................6 Connection and Initial Operation............7 Status LED..................7 Configuration..................8 DHCP....................8 Network settings with GBL_Conf............8 View network settings................9 Change network settings..............9 Configuration via web interface.............9 Configuration - Power Ports..............10 Label....................10 After power-up switch................10 If switching on after power-up, wait ............10...
  • Page 3 Datentechnik GmbH info@antrax.de - www.antrax.de Check Password on start page.............15 Configuration - Alarm Beeper..............16 Activate Beeper.................16 Ampere limit..................16 Configuration - Messages...............17 Peak measurement period..............17 Generate Temperature Messages............17 Max Temperature................17 Min. Temperature................17 Configuration - SNMP................18 Enable SNMP-get................18 Community public................18 Enable SNMP-set................18 Community private................18...
  • Page 4 Datentechnik GmbH info@antrax.de - www.antrax.de Features....................27 Bootloader-Mode................27 Firmware-Update................27 Technical information.................28 Factory settings.................28 Support...................28 - 4 - Hasenbrink 4, 32052 Herford, Germany Tel. +49 (0) 5221 929660 Fax +49 (0) 5221 9296628...

  • Page 5: Safety Instructions

    Please respect safety advises and manuals of connected devices. The MultiBox-LAN is NOT a toy. It has to be used or stored out or range of children. Packaging material is NOT a toy. Plastics has to be stored out of range of children. Please recycle the packaging materials.

  • Page 6: Hardware

    Datentechnik GmbH info@antrax.de - www.antrax.de Hardware Content of delivery · MultiBox-LAN · manual Connections 1) Status LED 2) Network connection 3) Power port LEDs 4) Power indication 5) Button ok 6) Button select 7) Power connection 8) Power ports...

  • Page 7: Connection And Initial Operation

    - www.antrax.de Connection and Initial Operation 1. Insert the plug of the AC power cord into an electrical outlet. The MultiBox-LAN will boot and is ready in a few moments. 2. Connect your network with the network connection of the MultiBox-LAN.

  • Page 8: Configuration

    After switch-on the MultiBox-LAN looks for a DHCP server and requests an available IP address. Please check the IP address allocated to MultiBox-LAN in the DHCP server settings to make sure that the same address is used at every reboot. To turn OFF DHCP please use the software GBL_Conf.exe or use configuration via the web interface.

  • Page 9: View Network Settings

    The new network configuration is now displayed. Configuration via web interface Go to the website of MultiBox-LAN. Enter the IP address of MultiBox-LAN into the address line of your internet browser: http://"IP address of MultiBox-LAN"/ and press LOGIN.. To enter the configuration menu, click on "Configuration" on the upper left side of the screen.

  • Page 10: Configuration - Power Ports

    Datentechnik GmbH info@antrax.de - www.antrax.de Configuration - Power Ports Label A name with a maximum of 15 characters can be entered here for each Power Port. After power-up switch The Power Port’s switching state after a power-on of the device can be defined here (on, off, remember last state).

  • Page 11: Watchdog Funktion

    Datentechnik GmbH info@antrax.de - www.antrax.de Watchdog Funktion While using the watchdog, electrical devices can be observed. The watchdog sends ICMP-pings or TCP-pings to the device. If these pings were not answered, during a defined delay (time or pings), the power port will reset. The watchdog function allows to restart e.g. crashed servers or NAS systems.

  • Page 12: Ping Interval

    Here you can set, if the MultiBox-LAN shall get its TCP/IP settings directly from your DHCP server. If DHCP is activated, the MultiBox-LAN checks if a DHCP server is active inside of your LAN. Thenthe MultiBox-LAN requests TCP/IP settings from this server. If there is no DHCP server inside of your network, we recommend to deactivate this function.

  • Page 13: Configuration - Ip Acl

    Here you can set, if the MultiBox-LAN shell react on pings. Enable IP Filter Here you can activate the IP Access Control List (IP ACL) of the MultiBox-LAN. If IP ACL is active, DHCP and SNMP only work, if all necessary servers and clients are registered in this list.

  • Page 14: Ip Access Control List

    - www.antrax.de IP Access Control List IP Access Control List (IP ACL) acts as an IP filter for your MultiBox-LAN. Wether it is active hosts and subnets only can contact the MultiBox-LAN, if their IP adresses are stated in this IP ACL.

  • Page 15: Require Http Password

    Password protected access can be activated here. In this case, a user and an admin password have to be defined. Passwords have a maximum lengths of 15 characters. Administrators are authorized to switch all ports and to modify the settings of the MultiBox-LAN and of all ports. The username of the admin is "admin".

  • Page 16: Configuration - Alarm Beeper

    - www.antrax.de Configuration - Alarm Beeper Activate Beeper The MultiBox-LAN offers as an internal beeper that can be used for acoustic alarm messages. Here you can activate the beeper.. Ampere limit Here you can set the limit for the current at which the beeper shall be activated.

  • Page 17: Configuration - Messages

    Here you can set over what time period peak flows shall be recorded: 30 minutes to 24 hours. This is also valid for the min/max display of the sensors. Generate Temperature Messages Here you can configure if and at which min-/max temperature the MultiBox-LAN shall send temperature alerts via SNMP-Traps and Syslog. Max Temperature Here you can define the maximum temperature, if the sensor measures this temperature the device will generate an alert via SNMP and Syslog.

  • Page 18: Configuration - Snmp

    Here you can download the MIBs of the MultiBox-LAN. SNMP To get detailed status information of MultiBox-LAN SNMP can be used. SNMP communicates via UDP (port 161) with MultiBox-LAN: You can use SNMP to switch the power ports as well. Supported SNMP commands: - SNMPGET :...

  • Page 19: Snmp-Communities

    All information, that can be requested or changed, the so-called "Managed Objects", are descripted in "Management Information Bases" (MIBs). There are three MIBs, which can be requested from MultiBox-LAN "system", "interface" and "powerports" "system" and "interface" are standardised MIBs (MIB-II).

  • Page 20: Configuration - Snmp Trap Receiver List

    Trap Version Here you can choose between SNMP-traps standard v1 and v2c. Use SNMP only if your network is fitted for. More information about the SNMP functions of the MultiBox-LAN, you can find in chapter SNMP. - 20 - Hasenbrink 4, 32052 Herford, Germany Tel. +49 (0) 5221 929660 Fax +49 (0) 5221 9296628...

  • Page 21: Configuration - Syslog

    If Syslog is active please enter the port number, that your Syslog server uses to receive syslog information. More information operating the MultiBox-LAN with Syslog here: Syslog. Syslog Syslog messages are simple text messages transmitted to a syslog server using UDP.

  • Page 22: Configuration - E-Mail

    If the e-mail server requires authentification, please select this function. Username Enter the username that shall be used by the MultiBox-LAN to connect to the e-mail server. Set new password Enter the password, that shall be used to log-in to the e-mail server.

  • Page 23: Operation

    Operation Switching at the device The MultiBox-LAN has two push-buttons: "select" and "ok". By pushing "select", the LED of Power Port 1 starts blinking which means that it is selected. By pushing the button again, the next Power Port is selected. If you want to change the switching state of the selected Power Port, push the "ok"...

  • Page 24: Operation Via Web Interface

    Datentechnik GmbH info@antrax.de - www.antrax.de With the MultiBox-LAN an additional LED indicates the current flow. Vie three coloured LEDs the current is displayed. The exact power consumption can be viewed via web interface or via SNMP. Consumption green LED <...

  • Page 25: Batchmode

    - www.antrax.de Batchmode Each port of the MultiBox-LAN can be switched on or off for a selectable delay (1-30 sec. or 1-30 min.) to the state "Switch on" or "Switch off". After the chosen delay the selected port will be switched off or on to the set state automatically.
  • Page 26 Datentechnik GmbH info@antrax.de - www.antrax.de You can order the sensors (temperature sensor and hybrid sensor) as additional accessories. Please find more information on our website at www.antrax.de or contact our sales team at order@antrax.de. Technical data of the sensors:...

  • Page 27: Features

    - www.antrax.de Features Bootloader-Mode To activate the bootloader-mode of the MultiBox-LAN press both buttons, "select" and "ok" at same time for three seconds. You will recognise wether the MultiBox-LAN is in bootloader-mode in the program window of GBL_Conf.exe displaying "BOOT-LDR" after the device name as well as on the device signalled by a slow blinking Status-LED.

  • Page 28: Technical Information

    Datentechnik GmbH info@antrax.de - www.antrax.de Technical information Connections: 1 x ethernet connection (RJ45) 4 x load outlet: Schuko plug (other connectors optional) 1 x power connection Schuko plug, 230 VAC, max. 16A 1 x sensor connector (PS2) Network: 10/100 MBit/s 10baseT ethernet...
