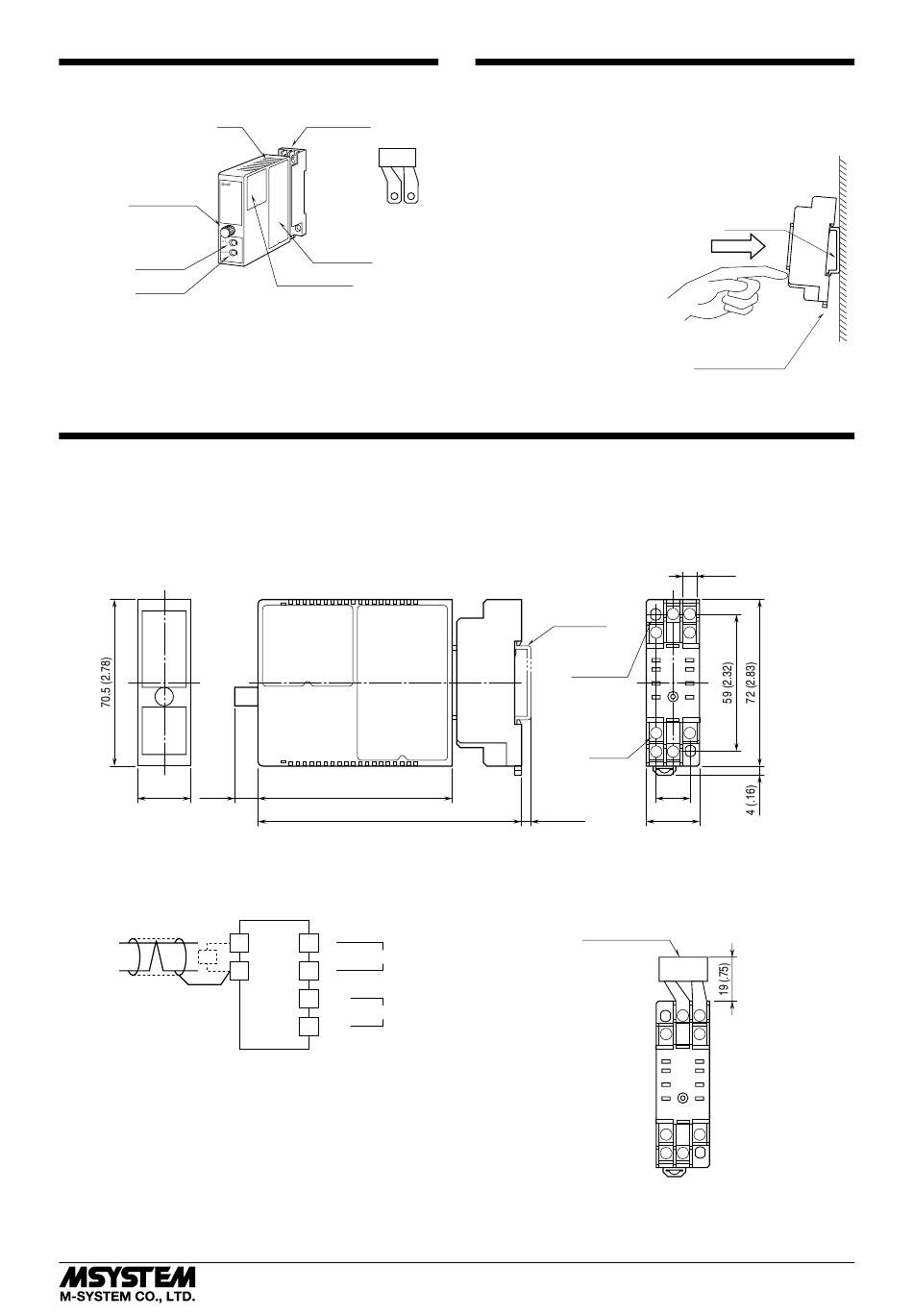

M-system Mini-M M2VF2 Instruction Manual page 2

COMPONENT IDENTIFICATION
Body
Fixing Screw
Zero Adj.
Span Adj.
TERMINAL CONNECTIONS
Connect the unit as in the diagram below or refer to the connection diagram on the side of the unit.
When an input resistor is provided with the module, attach it together with input wiring to the input screw terminals.
■ EXTERNAL DIMENSIONS unit: mm (inch)
21.5 (.85) 10 (.39)
■ CONNECTION DIAGRAM
+
*
SIGNAL
R
SOURCE
–
*Input shunt resistor attached for current input.
The M2VF2, by its fast-response feature, is not designed to eliminate
noise present in the input signal. Use a shielded twisted-pair cable to
prevent noise from entering through the input wiring.
The described response time may not be assured with the current output
when the cable's line capacitance is greater than 2000 pF.
Base Socket
Input Resistor
Connection
Diagram
Specifications
84 (3.31)
114 (4.49)
+
1 9
OUTPUT
4 12 –
13
U(+)
POWER
14
V(–)
