CP Electronics ELTD1 Product Manual

ELTD1
Emergency Lighting Test Switch
Product Guide

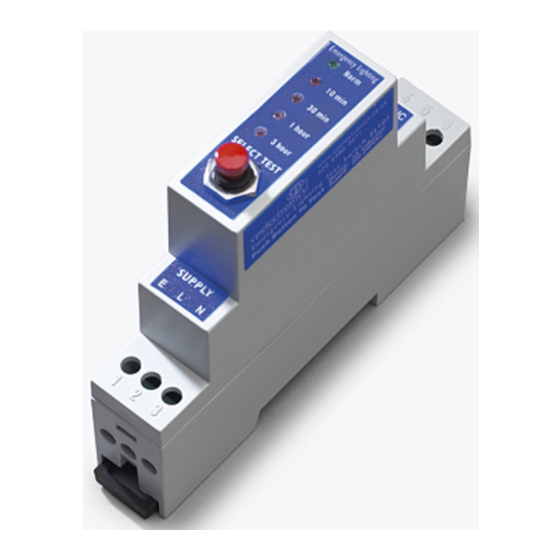

The ELTD1 emergency lighting test switch is designed to test the function
of emergency luminaires. A push button switch is used to interrupt the
supply to the luminaires for a pre-programmed period of time. At the end of
the time period the supply to the luminaires is automatically re-instated.
The result is that there is no risk of depleting the batteries in the emergen-
cy fitting.
Four pre-programmed test intervals are available:
•
10 minutes
•
30 minutes
•
1 hour
•
3 hours
The unit will power up with the NORMAL lamp illuminated—the supply will
be connected to the output.
Push the test button to select the 10 minute test interval. Push again to
select the next test interval—the supply will be disconnected from the out-
put for the duration of the test.
To cancel a test, repeatedly press the button until the NORMAL lamp illu-
minates.
Warning. This device works at mains potential. Be sure to take care when
working with electricity.
1. Make sure the load is connected and in working order.
2. Isolate the mains supply to the circuit at the main distribution
board.
3. The unit can be installed in any standard DIN rail consumer unit or
enclosure.

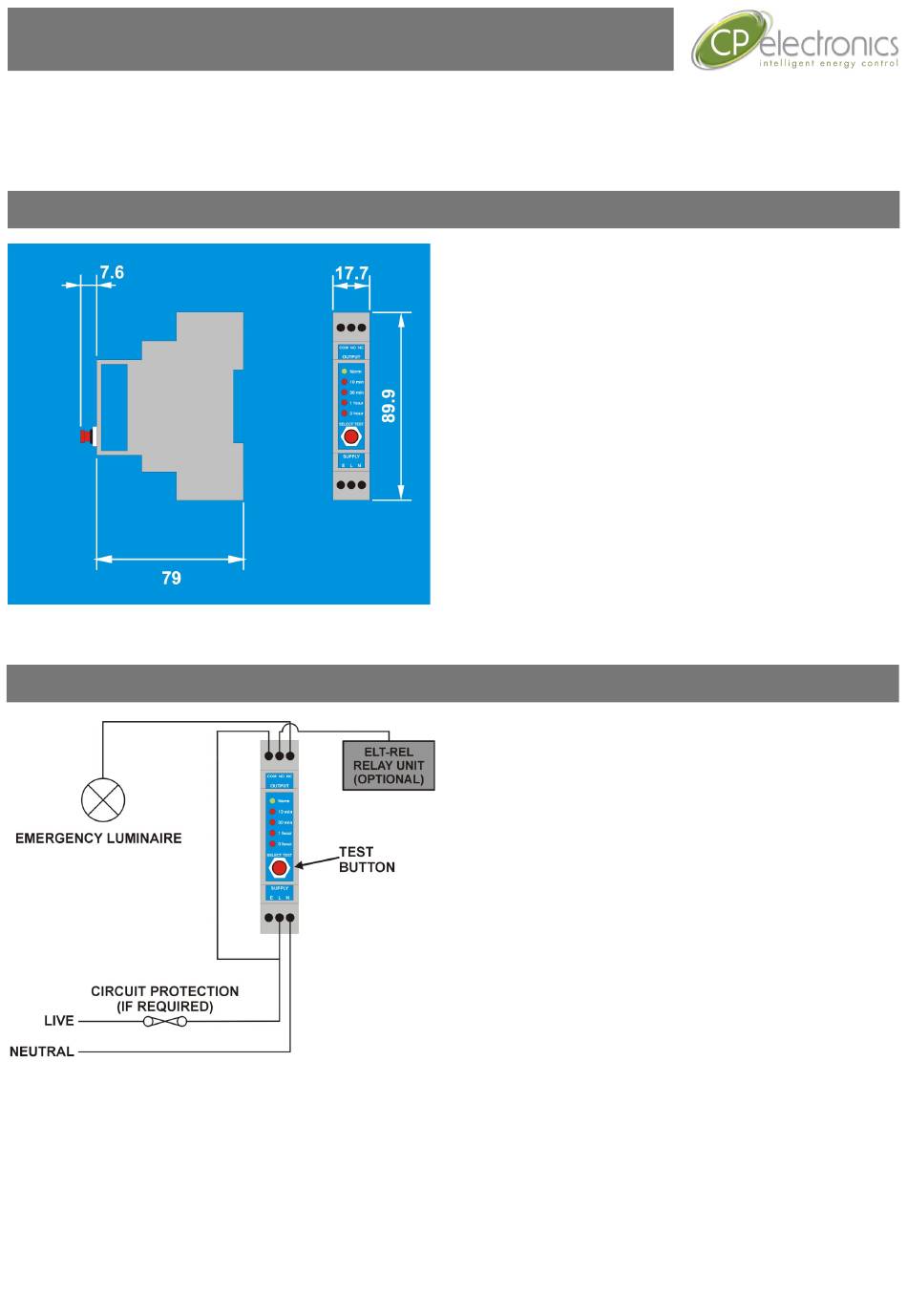

4. Wire the ELTD1 as in the diagram below.
5. Connect the controller via the terminal block. Live supply to the L
terminal, Neutral supply to the N terminal and the load to the NC
terminal. When using the ELT-REL relay unit, connect to the NO
terminal. Loop from the L terminal to the COM terminal.
6. Apply power—the NORMAL lamp will light up.
Overview
Installation
