CP Electronics EBR-MS-S2-2S-B Manual

Scene selection switch
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

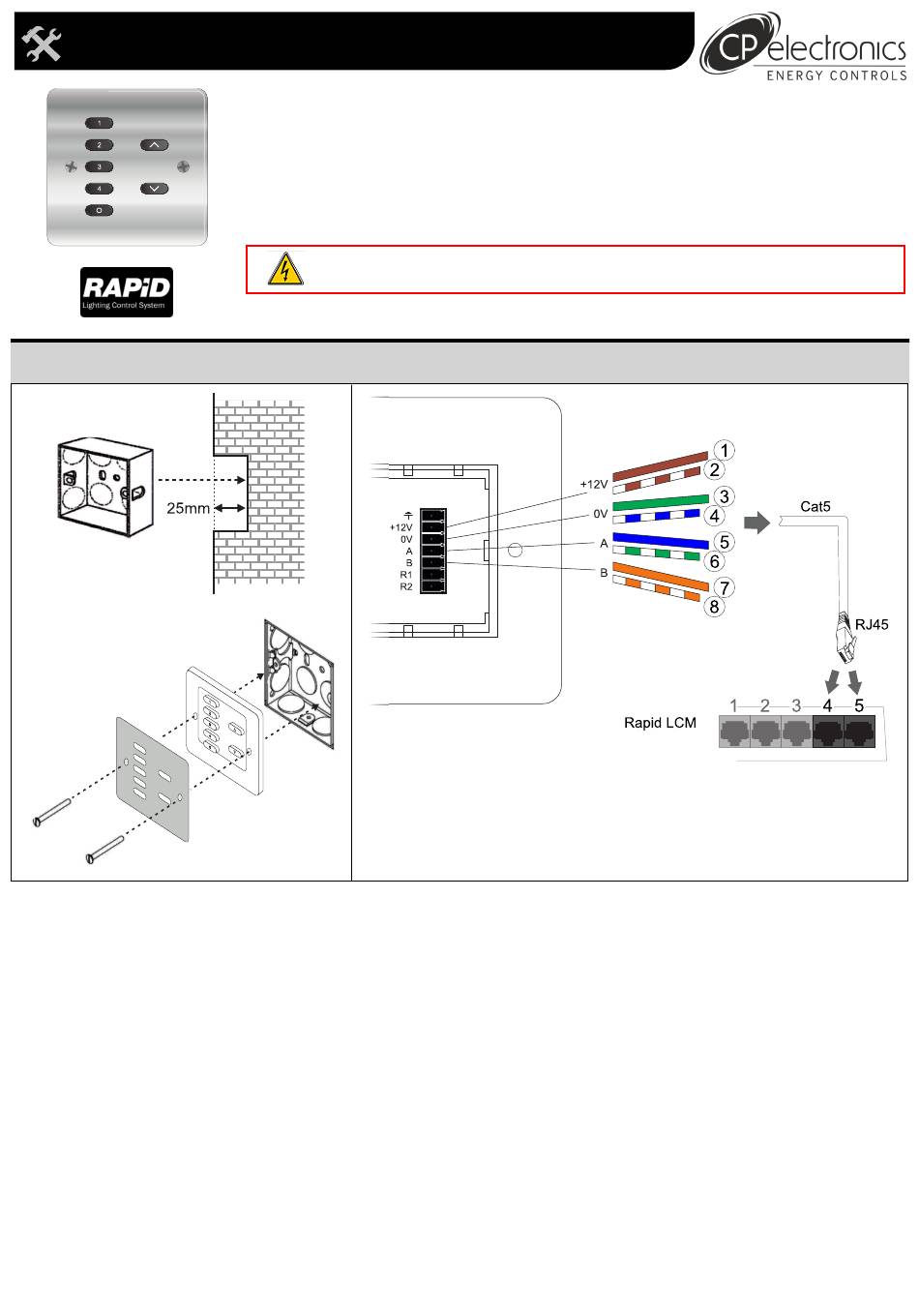

      EBR-MS-S2-2S, -2SM, -4SM, -8SM

INSTALLATION

Scene selection switch
The EBR-MS-S2 provides advanced scene setting functions for the RAPID Lighting Control System.
When used in conjunction with RAPID dimming LCMs and suitable dimming luminaires, complex
dimming can be achieved to suit applications from conference rooms to individual offices. This
product provides for the selection of scenes and the programming of LCMs to provide set dimming
levels.
This device should be installed by a qualified electrician in accordance with the latest
edition of the IEE wiring regulations.
Key
1. brown
5. blue
2. brown/white
6. white/green
3. green
7. orange
4. white/blue
8. white/orange
Ref WD846 issue 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EBR-MS-S2-2S-B and is the answer not in the manual?

Questions and answers

Related Manuals for CP Electronics EBR-MS-S2-2S-B

Summary of Contents for CP Electronics EBR-MS-S2-2S-B

  • Page 1       EBR-MS-S2-2S, -2SM, -4SM, -8SM Scene selection switch The EBR-MS-S2 provides advanced scene setting functions for the RAPID Lighting Control System. When used in conjunction with RAPID dimming LCMs and suitable dimming luminaires, complex dimming can be achieved to suit applications from conference rooms to individual offices. This product provides for the selection of scenes and the programming of LCMs to provide set dimming levels.
  • Page 2 OPERATING Default light levels: To select a scene press the requisite button. -2SM -4SM -8SM Scene To raise the light level (doesn't apply to 2-button 100% 100% 100% 100% models) To lower the light level (doesn't apply to 2-button 100% models) To turn the lights off Default levels are stored in the LCM and not the...
  • Page 3 PROGRAMMING (EBR-MS-S2-4SM & 8SM ONLY) Enter programming mode by pressing Choose the scene number to program. Choose the circuit ID this applies to (do the following sequence of buttons within this even if the circuit ID is the same as the 5 seconds.

  • Page 4: Technical Data

    PLA-S-S2-4SM-PB (polished brass) PLA-S-S2-8SM-PB (polished brass) PLA-S-S2-1S-W (white) PLA-S-S2-4S-W (white) PLA-S-MS-S2-4SM-W (white) PLA-S-S2-8SM-W (white) CP Electronics - a business unit of Legrand Electric Limited www.cpelectronics.co.uk Brent Crescent, London NW10 7XR UK enquiry@cpelectronics.co.uk Tel: +44 (0)333 900 0671 Fax: +44 (0)333 900 0674 Due to our policy of continual product improvement, CP Electronics reserves the right to alter the specification of this product without prior notice.

This manual is also suitable for:

Ebr-ms-s2-4sm-bEbr-ms-s2-2sm-bEbr-ms-s2-8sm-b
