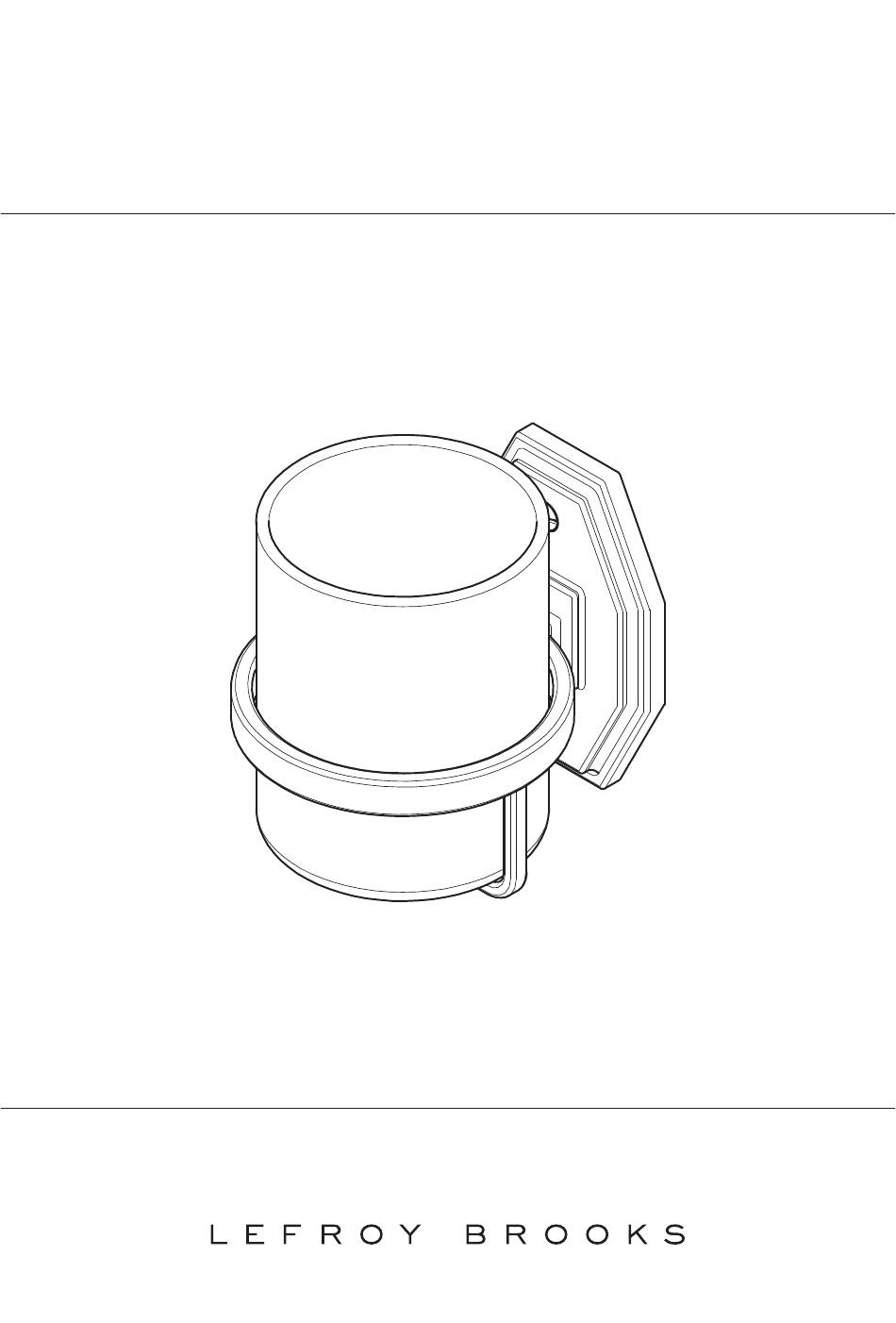

- Page 1 MK 4654 MACKINTOSH CERAMIC MUG HOLDER INSTALLATION GUIDE...
- Page 2 DIMENSIONS SHOWN WITHOUT MUG 60mm centres 70mm diameter 94mm 90mm 99.5mm TOOLS REQUIRED Powered drill with Ø6mm drill bit Flat blade screwdriver Spirit level...
- Page 3 INSTALLATION 1 Remove the mug from the holder. 4 Insert the wall plugs into the holes then secure 2 Mark the hole positions on the mounting the mug holder using the screws supplied. surface. Use a spirit level to ensure the holes 5 Place the mug into the holder.
- Page 4 20.065.200A / JANUARY 2016 CUSTOMER SUPPORT +4 4 (0)1992 70 8 316 L E F R O Y B R O O K S . C O . U K Whilst every effort is made to ensure the accuracy of these, they are subject to change without notice as part of the company’s product development process.
